ProForm 119G000 123 Series Radiator Universal GM 19 Inch Core Manual Transmission Proform
Albertan Owned
Financing Available
Top-Quality Suppliers
Description
Proform's new modular 1-2-3 Series Radiators and Accessories fit together just like they should, nice and easy! Start with this 17 wide core Stage 1 Radiator, part no. 117F000 as the foundation for your cooling system. These aren't just your ordinary single pass radiators, they offer beautifully tig-welded tanks, and a slick profile thanks to Proform's unique Four-Corner Design.
The Four-Corner Design makes it easy to attach the exact fit Stage 2 Fan Shroud, part no. 1171S00, because the mounting holes line up, making installation a breeze with the included hardware. For the ultimate professional look at DIY costs, take the 1-2-3 Series Stage 3 fan, part number 67014 or 67018, and mount it up to the pre-threaded holes in the shroud; then top it off with a fan controller to make life easy. It s easy as 1-2-3!
This is a really nice cooling system that's ready for the show, streets, or strip! This Stage 1 Radiator has dual one-inch tubes, single pass, with optimized louver design to maximize cooling, and deep draw headers for an extra solid tube/header seal. Billet aluminum filler neck with overflow tube, and a billet aluminum 16 psi cap are included. No epoxy or anything else like that just tight tolerances all around. Building your custom cooling system is easy!
Features:
- All Aluminum Radiator
- Shroud-Ready with Four Corner Design
- Compatible with Stage 2 Shroud part number 1171S00
- Compatible with Stage 3 Electric Fans part number 67014 and 67018
- Compatible with Stage 3 Fan Controllers part number 69598 and 69595
- Thread-in Thermostat Ready (3/8 inch NPT)
- Beautifully Welded Tanks

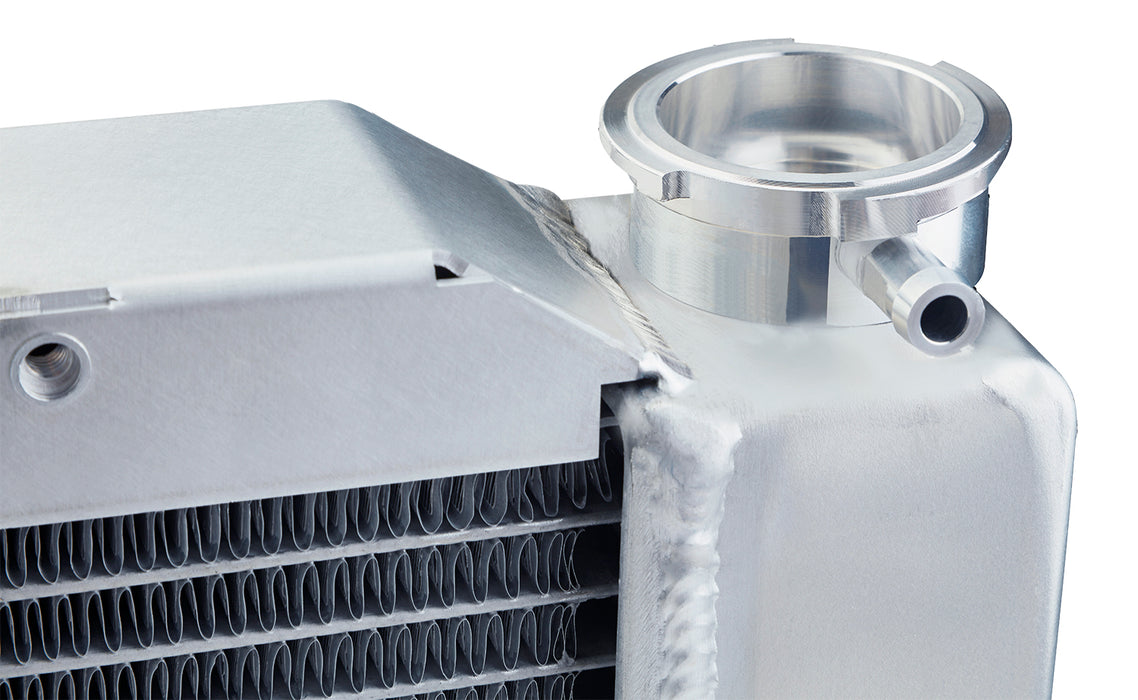

- Billet Aluminum Filler Neck
- Billet Aluminum Radiator Cap Included
- High-Capacity Overflow Tube
- 123 Series Radiator Universal GM 19 Inch Core Manual Transmission
- Core Thickness (in): 2.4
- Core Width (in): 19
- Electric Fan(s) Included: No
- Finish: Natural
- Height (in): 18
- Inlet Diameter (in): 1.5
- Inlet Location: Driver Side
- Mounting Style: Universal
- Outlet Diameter (in): 1.75
- Outlet Location: Passenger Side
- Overall Width (in): 24.3
- Series: 1-2-3
- Shroud Included: No
- Transmission Type: Manual
Specifications
| brand_logo | https://www.asapnetwork.org/sites/default/files/brands/icons/icon_4.jpg |
| Cap Color | Silver |
| Color | Silver |
| color_l | Silver |
| Condition | NEW |
| Core Thickness (in) | 2.4 |
| Core Width (in) | 19 |
| Description_ABR | Radiator |
| Description_ASC | 123 Series Radiator; Universal; GM; 19" Core; Manual Trans |
| Description_DEF | Engine Rocker Arm Kit |
| Description_DES | 123 Series Radiator; Universal; GM; 19" Core; Manual Transmission |
| Description_EXT | 123 Series Radiator; Universal; GM; 19" Core; Manual Trans |
| Description_INV | 123 Radiator GM; 19" Core; Man. Trans |
| Description_LAB | 123 Series Radiator; Universal; GM; 19" Core; Manual Trans |
| Description_MKT | 1-2-3 Radiators are just like the name implies, EASY! Proform s new line of radiators and modular accessories all fit together just like they should. These aren t just your ordinary single pass radiators, they offer beautifully tig-welded tanks with a slick looking profile design that is unique to Proform. These radiators also incorporate PROFORM s unique Four-Corner design that makes adding a shroud or bracket easy because all the mounting holes line up. All radiators are dual one inch tube, single pass, with optimized louver design to maximize cooling, and deep draw headers for an extra solid tube/header seal. No epoxy or anything else like that just tight tolerances all around. Building your custom cooling system is easy: Stage 1 -start by choosing the radiator that is the right width and inlet/outlet configuration for your vehicle; Stage 2- Choose a single fan or dual fan shroud or bracket that fits your radiator; Stage 3- Choose the correct fan(s) to match your shroud/bracket. To top it off, throw a fan controller into your package and you've just built yourself a really nice cooling system that's ready for the show, streets, or strip! |
| Description_SHO | 1-2-3 Radiator |
| finish | Natural |
| finish_l | Natural |
| height | 22.25 |
| Height (in) | 18 |
| Inlet Diameter (in) | 1.5 |
| last_update | 2021-06-28 05:42:04 |
| length | 25.25 |
| LTL | N |
| Mounting Style | Universal |
| Outlet Diameter (in) | 1.75 |
| Outlet Location | Passenger Side |
| Overall Width (in) | 24.3 inch |
| Series | 1-2-3 |
| sold_as | Each |
| Thickness | 2.4 Inch |
| Transmission Type | Manual |
| weight | 15.25 |
| width | 7.25 |
