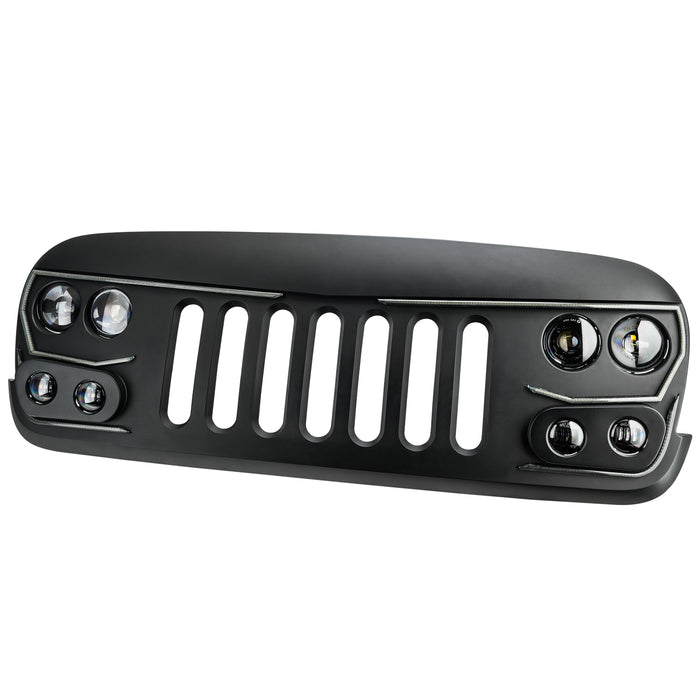

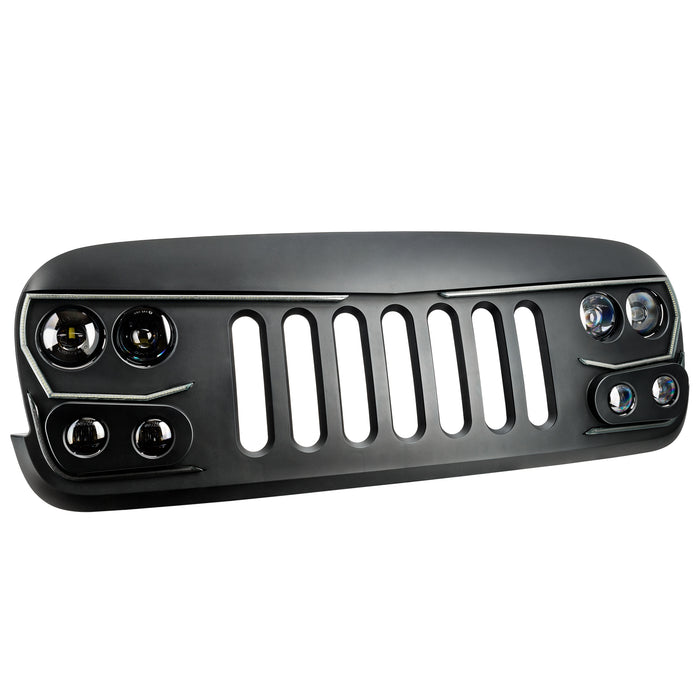

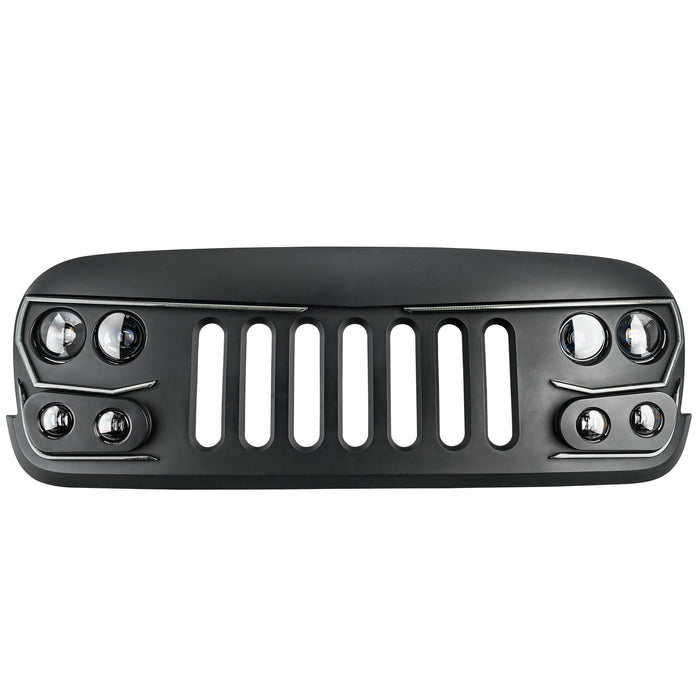

Oracle Lighting 5817-PRO Vector Series Full LED Grill Lighting
SKU ds_FQCV_5817-PRO
Proudly Canadian
Albertan Owned
Supporting Canadian truckers since 2018
Secure Payments
Financing Available
SSL encrypted checkout with financing options
Trusted Brands
Top-Quality Suppliers
Authorized dealer for Fox, Bilstein, BFGoodrich & 50+ brands
Save $191.17
Original price
$1,800.21
Original price
$1,800.21
-
Original price
$1,800.21
Original price
$1,800.21
Current price
$1,609.04
$1,609.04
-
$1,609.04
Current price
$1,609.04
Availability:
Only 3 left!
Description
The ORACLE Lighting Vector Series Grill for the Jeep Wrangler JK is the first full-featured replacement grill with integrated LED light emitters for Low Beam, High Beam, as well as a Dynamic LED DRL. This unique design is equipped with an array of application-specific LED lighting features and has the aggressive styling and rugged durability that Jeep owners demand. These modules are now robotic-ally sealed to create an Ingress Protection Rating of IP68 which will keep moisture out of your fixtures even from exposure to pressurized water spray and brief underwater submersion. The DRL modules are now mounted with hardware rather than adhesive to make these parts easier to remove for grill painting and maintenance. Each LED beam can be independently adjusted in order to put light on the road without blinding oncoming traffic, especially important for lifted Wranglers. The separate driving and Low Beam lights allow for proper light distribution for optimal road legal light. The Vector Series Grill features an impressive 5,600 Combined Lumen Low Beam with advanced optics for precision lighting that illuminates the road for increased driver visibility without creating glare that can blind oncoming traffic. 7,200 Combined Lumen High Beam for illuminating any dark landscape. The simple wiring connection is "Plug and Play" thanks to the included harness adapter. Additional features of the ORACLE Lighting Vector Series Grill include an integrated LED Daytime Running Light which increases driver safety. This DRL also features a unique "startup sequence" Dynamic LED display. Another safety feature is the LED Turn Signal that is 4x brighter than the factory turn signal lamp. The components of this project were CAD developed to insure that the fit and finish of this product matches factory quality and fitment.
Resources
Installation InstructionsSpecifications
| Add-On | N/A |
| Body Material | Polycarbonate |
| Contents | (1x) ORACLE Lighting Vector Series Grill, (4x) Adjustable LED Low Beam Emitters, (2x) Adjustable LED Driving Beam Emitters, (2x) LED High Beam Emitters, (2x) Dynamic Daytime Running Lights, (2x) Amber LED Turn Signal Modules, (2x) Removable Mounting Brackets, (2x) Plug & Play Headlight Harnesses, (8x) Metal Grill Retailer Installation Clips, Installation Guide and DIY Video |
| Description_ASM | 2007 thru 2017 Jeep Wrangler |
| Description_DEF | Grille |
| Description_DES | Vector Series Full LED Grill Lighting |
| Description_EXT | The modules are now robotically sealed to create an Ingress Protection Rating of IP68. The components of the Vector Grill were CAD developed to insure that the fit and finish of this product matches factory quality and fitment. |
| Description_FAB | Precision Beam "No Glare" output design |
| Description_INV | Oracle - Vector Grill - 5817-PRO |
| Description_MKT | The ORACLE Lighting Vector Series Grill for the Jeep Wrangler JK is the first full-featured replacement grill with integrated LED light emitters for Low Beam, High Beam, as well as a Dynamic LED DRL. This unique design is equipped with an array of application-specific LED lighting features and has the aggressive styling and rugged durability that Jeep owners demand. These modules are now robotic-ally sealed to create an Ingress Protection Rating of IP68 which will keep moisture out of your fixtures even from exposure to pressurized water spray and brief underwater submersion. The DRL modules are now mounted with hardware rather than adhesive to make these parts easier to remove for grill painting and maintenance. Each LED beam can be independently adjusted in order to put light on the road without blinding oncoming traffic, especially important for lifted Wranglers. The separate driving and Low Beam lights allow for proper light distribution for optimal road legal light. The Vector Series Grill features an impressive 5,600 Combined Lumen Low Beam with advanced optics for precision lighting that illuminates the road for increased driver visibility without creating glare that can blind oncoming traffic. 7,200 Combined Lumen High Beam for illuminating any dark landscape. The simple wiring connection is "Plug and Play" thanks to the included harness adapter. Additional features of the ORACLE Lighting Vector Series Grill include an integrated LED Daytime Running Light which increases driver safety. This DRL also features a unique "startup sequence" Dynamic LED display. Another safety feature is the LED Turn Signal that is 4x brighter than the factory turn signal lamp. The components of this project were CAD developed to insure that the fit and finish of this product matches factory quality and fitment. |
| Description_SHO | Vector Grill |
| height | 7.35 |
| High Beam Lumens | 1600 |
| length | 50.0 |
| Low Beam Lumens | 4000 |
| LTL | N |
| Prop 65 (C, R or CR) | CR |
| Prop 65 - Long Label | Warning: This product contains chemicals known to the State of California to cause cancer or birth defects or other reproductive harm. For more information: www.P65Warnings.ca.gov |
| Prop 65 - Short Label | WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov |
| Prop 65 - Warning | Warning - Both Cancer and Reproduction.JPG |
| Prop 65 Yes/No | Yes |
| Title | 5817-504 - ORACLE Lighting VECTOR Series Full LED Grill- Jeep Wrangler JK |
| Warranty | 2 Year |
| weight | 17.0 |
| width | 18.5 |
