Edelbrock 77780 { Sellable : Yes }
by Edelbrock
SKU ds_BDVJ_77780
Proudly Canadian
Albertan Owned
Supporting Canadian truckers since 2018
Secure Payments
Financing Available
SSL encrypted checkout with financing options
Trusted Brands
Top-Quality Suppliers
Authorized dealer for Fox, Bilstein, BFGoodrich & 50+ brands
Save $58.95
Original price
$972.93
Original price
$972.93
-
Original price
$972.93
Original price
$972.93
Current price
$913.98
$913.98
-
$913.98
Current price
$913.98
Availability:
Out of stock
Description

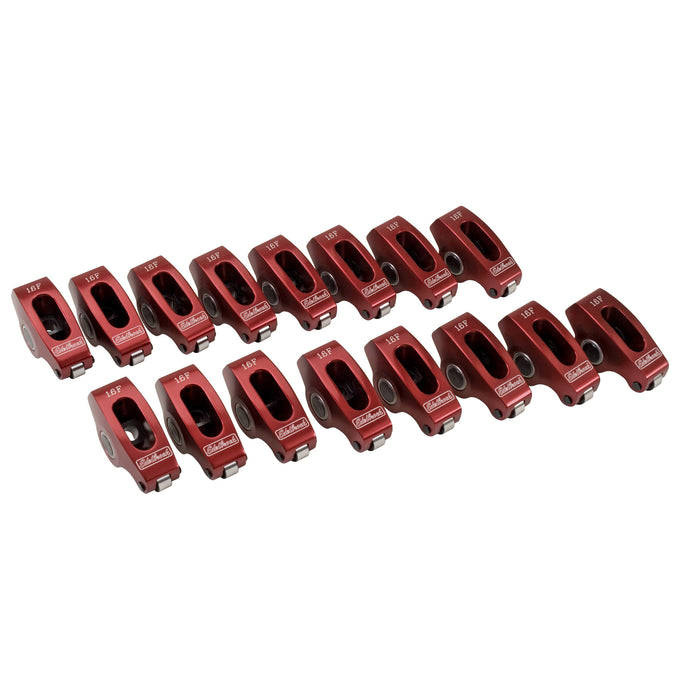

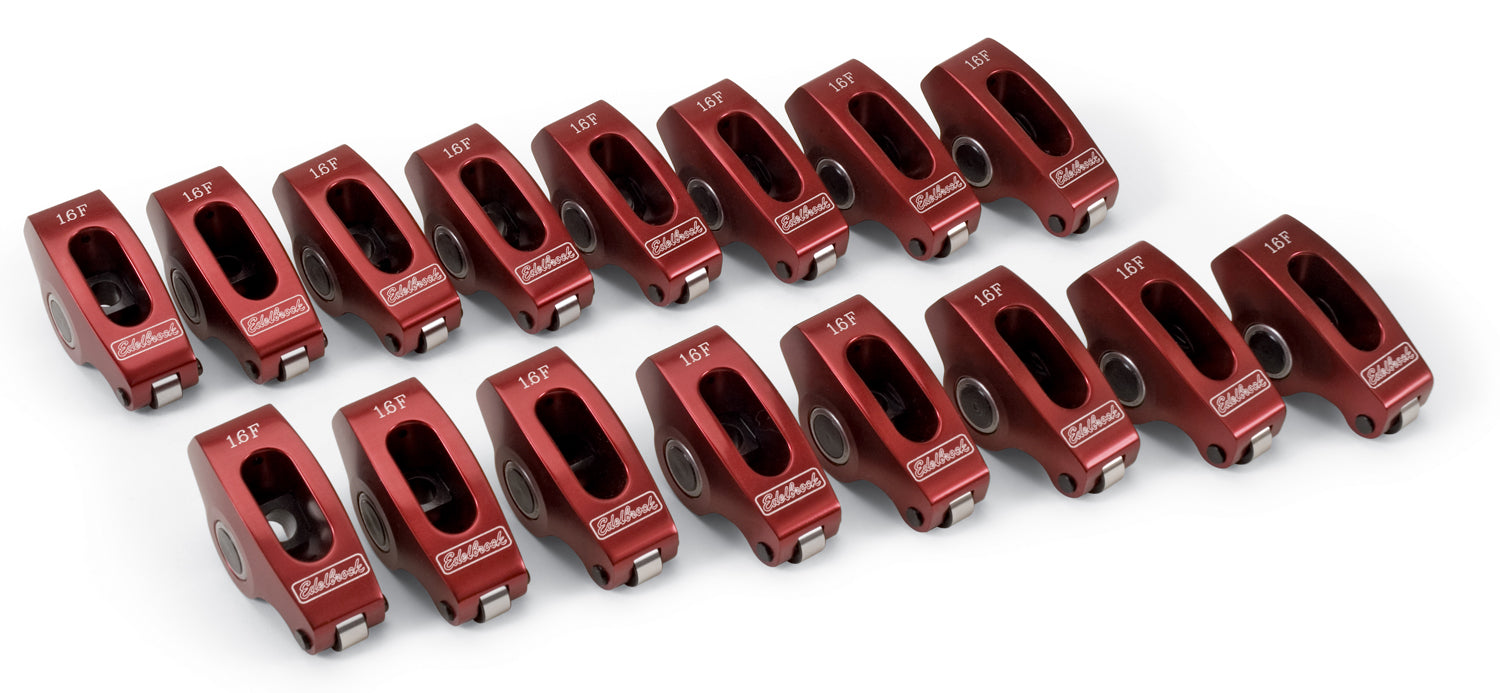

Edelbrock part #77780 Red Roller Rocker arms are designed for small block Ford's using 3/8 studs. This 1.6:1 Ratio, set of 16 rockers are manufactured in the USA from lightweight 7129 grade aluminum. The body is CNC machined then micro polished and anodized for durability. The trunnion race, roller pin and roller tip are centerless ground for superior quality. A high quality Torrington needle bearing fulcrum combined with a roller tip ensure smooth operation and performance. The full body design will accommodate up to 1.65" diameter springs. Thick-walled adjusting nuts and 4140 steel poly locks are included.
Specifications
| Description_ABR | SBF Rockers |
| Description_ASM | Ford:Small-Block:289 (4.7L)-351W (5.8L) |
| Description_DEF | Engine Rocker Arm |
| Description_DES | ROCKER ARM |
| Description_EXT | Edelbrock part #77780 Red Roller Rocker arms are designed for small block Ford s using 3/8 studs. This 1.6:1 Ratio; set of 16 rockers are manufactured in the USA from lightweight 7129 grade aluminum. |
| Description_EXT | Edelbrock part #77780 Red Roller Rocker arms are designed for small block Ford's using 3/8 studs. This 1.6:1 Ratio, set of 16 rockers are manufactured in the USA from lightweight 7129 grade aluminum. |
| Description_FAB | 7129 Grade Aluminum |
| Description_FAB | Accommodates Up To 1.65 in. Diameter Springs |
| Description_FAB | Anodized |
| Description_FAB | Made In U.S.A. |
| Description_FAB | Make Your Covers Look New |
| Description_FAB | Micro-Polished |
| Description_INV | Edelbrock red roller rockers #77780 SBF |
| Description_KEY | Edelbrock; Red; Roller Rockers; 77780 |
| Description_LAB | Red Roller Rockers for Small-Block Ford 3/8 stud 1.6:1 (Qty 16) |
| Description_MKT | Edelbrock part #77780 Red Roller Rocker arms are designed for small block Ford's using 3/8 studs. This 1.6:1 Ratio, set of 16 rockers are manufactured in the USA from lightweight 7129 grade aluminum. The body is CNC machined then micro polished and anodized for durability. The trunnion race, roller pin and roller tip are centerless ground for superior quality. A high quality Torrington needle bearing fulcrum combined with a roller tip ensure smooth operation and performance. The full body design will accommodate up to 1.65" diameter springs. Thick-walled adjusting nuts and 4140 steel poly locks are included. |
| Description_SHO | { Sellable : Yes } |
| Description_SHP | { eo : 0in.} |
| Description_TRA | Rocker geometry should be checked, making sure that the contact point of the roller remains properly on the valve tip and does not roll off the edge. Visual inspection of the rockers, valve springs, retainers, and pushrods should be made to ensure that none of these components come into improper contact with each other. If problems with valve train geometry occur, changes such as pushrod length may have to be made. |
| Description_TRA | Rocker geometry should be checked; making sure that the contact point of the roller remains properly on the valve tip and does not roll off the edge. Visual inspection of the rockers; valve springs; retainers; and pushrods should be made to ensure that none of these components come into improper contact with each other. If problems with valve train geometry occur; changes such as pushrod length may have to be made. |
| Engine Make/Size | Ford 302/351C/351M/400 |
| Grade Type | Performance |
| height | 2.0 |
| length | 16.0 |
| LTL | N |
| Material | Aluminum |
| Mounting Type | Stud |
| Position | N/A |
| Quantity | Set of 16 |
| ratio | 1.6 |
| RGL | WARNING: This product can expose you to Chromium, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
| Rocker Arm Material | Aluminum |
| Rocker Arm Ratio | 1.6:1 |
| Rocker Arm Type | Full Roller |
| WARNING CA Proposition 65 | Yes |
| WARNING CA Proposition 65 Message | WARNING: This product can expose you to Chromium; which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information; visit www.P65warnings.ca.gov. |
| weight | 6.0 |
| width | 8.0 |
