COMP Cams SK35-314-8 Magnum Computer Controlled 224/230 Hydraulic Roller Cam SK-Kit for Ford 5.0L
by COMP Cams
SKU ds_BDQQ_SK35-314-8
Proudly Canadian
Albertan Owned
Supporting Canadian truckers since 2018
Secure Payments
Financing Available
SSL encrypted checkout with financing options
Trusted Brands
Top-Quality Suppliers
Authorized dealer for Fox, Bilstein, BFGoodrich & 50+ brands
Sold out
Original price
$1,284.55
-
Original price
$1,284.55
Original price
$1,284.55
$1,284.55
$1,284.55
-
$1,284.55
Current price
$1,284.55
Availability:
Out of stock
Description
Needs injectors, larger mass air and throttle body, intake, heads, headers, gears and 2500+ stall or 5 speed.
Resources
Installation InstructionsSpecifications
| Advertised Exhaust Duration | 286 |
| Advertised Intake Duration | 280 |
| Amazon ASIN | B001R98J10 |
| Assembly Lubricant Included | No |
| Basic Operating RPM Range | 2,200-6,200 |
| C.A.R.B. E.O. Number | N/A |
| C.A.R.B. Exempt for California Certified Vehicles Manufactured Before 1965? | Yes, but must meet tailpipe emission standards for year of vehicle. |
| C.A.R.B. Exempt for Federally Certified Vehicles Manufactured Before 1967? | Yes, but must meet tailpipe emission standards for year of vehicle. |
| C.A.R.B. Exempt for Foreign Vehicles Manufactured Before 1967? | Yes, but must meet tailpipe emission standards for year of vehicle. |
| C.A.R.B. Exempt for On-Road Vehicles? | No |
| C.A.R.B. Exempt for Racing and Off-Road Only Vehicles? | Yes, but must be a race/competition only vehicle. |
| C.A.R.B. Exemption Reason | N/A |
| California Proposition 65 | WARNING: Cancer and Reproductive Harm P65Warnings.ca.gov |
| Cam Type | Hydraulic Roller |
| Camshaft Gear Attachment | 1-Bolt |
| Camshaft Material | Austempered Ductile Iron |
| Camshaft Series | Magnum Computer Controlled |
| Description_DEF | Engine Camshaft Kit |
| Description_DES | Magnum Computer Controlled 224/230 Hydraulic Roller Cam for Ford 5.0L |
| Description_DES | Magnum Computer Controlled 224/230 Hydraulic Roller Cam SK-Kit for Ford 5.0L |
| Description_DES | Magnum Double Row Timing Set for '84-'92 Ford 5.0L, 302 and 351W |
| Description_DES | OE-Style Hydraulic Roller Lifter Set for Ford 5.0 and Ford Flat Tappet Engines |
| Description_EXT | Needs injectors, larger mass air and throttle body, intake, heads, headers, gears and 2500+ stall or 5 speed. |
| Description_FAB | Deliver More Power Than Standard Camshafts, Great high RPM power and Easy on valve train parts |
| Description_INV | M C-Cntrl 224/230 H-Rlr SK-Kit Ford 5.0 |
| Description_KEY | 22 |
| Description_KEY | 260 |
| Description_KEY | 289 |
| Description_KEY | 302 |
| Description_KEY | 308 |
| Description_KEY | 351 |
| Description_KEY | 5.0 |
| Description_KEY | Boss |
| Description_KEY | Cougar |
| Description_KEY | F-150 |
| Description_KEY | Fairlane |
| Description_KEY | Ford |
| Description_KEY | Galaxie |
| Description_KEY | Grand Marquis |
| Description_KEY | GT |
| Description_KEY | GT-350 |
| Description_KEY | HiPo |
| Description_KEY | K-Code |
| Description_KEY | LTD |
| Description_KEY | Mercury |
| Description_KEY | Meteor |
| Description_KEY | Mustang |
| Description_KEY | SBF |
| Description_KEY | Shelby |
| Description_KEY | Squire |
| Description_KEY | Sunbeam |
| Description_KEY | Thunderbird |
| Description_KEY | Tiger |
| Description_KEY | Torino |
| Description_KEY | Windsor |

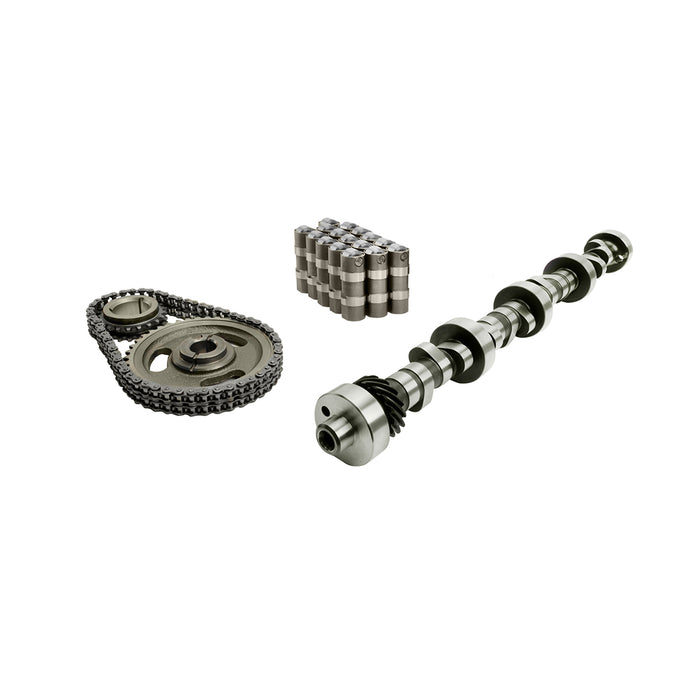

| Description_MKT | SK-KIT - Small Kit Includes: Camshaft, Lifters, Timing Chain Set, Assembly Lube, Decals and Instructions. |
| Description_SHO | 280HR |
| Description_SHP | None |
| Engine Family | Ford 5.0L (1985-2002) |
| Exhaust Duration at .050 inch Lift | 230 |
| Exhaust Valve Lift | 0.598 |
| Gaskets Included | No |
| height | 5.11 |
| Intake Duration at .050 Inch Lift | 224 |
| Intake Valve Lift | 0.56 |
| K-Kit Upgrade | K35-314-8 |
| Kit Type | SK-Kit - Small Kit |
| length | 25.11 |
| Lifter Type | Hydraulic Roller |
| Lifters Included | Yes |
| Lobe Separation | 112 |
| Locks Included | No |
| LTL | N |
| Pushrods Included | No |
| Retainers Included | No |
| Timing Chain and Gears Included | Yes |
| Title | Magnum Computer Controlled 224/230 Hydraulic Roller Cam SK-Kit for Ford 5.0L |
| Usage | Street/Strip |
| Valve Springs Required | Yes |
| Valve Stem Seals Included | No |
| weight | 18.7 |
| width | 10.31 |
