COMP Cams SK20-701-9 Magnum 243/243 Solid Roller Cam SK-Kit for Chrysler 273-360
by COMP Cams
SKU ds_BDQQ_SK20-701-9
Proudly Canadian
Albertan Owned
Supporting Canadian truckers since 2018
Secure Payments
Financing Available
SSL encrypted checkout with financing options
Trusted Brands
Top-Quality Suppliers
Authorized dealer for Fox, Bilstein, BFGoodrich & 50+ brands
Sold out
Original price
$1,727.51
-
Original price
$1,727.51
Original price
$1,727.51
$1,727.51
$1,727.51
-
$1,727.51
Current price
$1,727.51
Availability:
Out of stock
Description
Excellent for street/strip effort for 9.5:1 to 10:1 compression in 340 and 360. 3500 Stall, aftermarket intake with 750+ CFM carb.
Resources
Installation InstructionsResources
Installation InstructionsSpecifications
| Advertised Exhaust Duration | 288 |
| Advertised Intake Duration | 288 |
| Amazon ASIN | B001R9DTHO |
| Assembly Lubricant Included | No |
| Basic Operating RPM Range | 3,000-6500 |
| C.A.R.B. E.O. Number | N/A |
| C.A.R.B. Exempt for California Certified Vehicles Manufactured Before 1965? | Yes, but must meet tailpipe emission standards for year of vehicle. |
| C.A.R.B. Exempt for Federally Certified Vehicles Manufactured Before 1967? | Yes, but must meet tailpipe emission standards for year of vehicle. |
| C.A.R.B. Exempt for Foreign Vehicles Manufactured Before 1967? | Yes, but must meet tailpipe emission standards for year of vehicle. |
| C.A.R.B. Exempt for On-Road Vehicles? | No |
| C.A.R.B. Exempt for Racing and Off-Road Only Vehicles? | Yes, but must be a race/competition only vehicle. |
| C.A.R.B. Exemption Reason | N/A |
| California Proposition 65 | WARNING: Cancer and Reproductive Harm P65Warnings.ca.gov |
| Cam Type | Solid Roller |
| Camshaft Gear Attachment | 1-Bolt |
| Camshaft Material | Billet Steel |
| Camshaft Series | Magnum |
| Description_ASM | Fits Chrysler 273, 318, 340 and 360 LA |
| Description_DEF | Engine Camshaft Kit |
| Description_DES | Endure-X Solid Roller Lifter Set for Chrysler 273-360 |
| Description_DES | Magnum 243/243 Solid Roller Cam for Chrysler 273-360 |
| Description_DES | Magnum 243/243 Solid Roller Cam SK-Kit for Chrysler 273-360 |
| Description_DES | Magnum Double Row Timing Set for '56-'88 Chrysler 273-360 V8 |
| Description_EXT | Excellent for street/strip effort for 9.5:1 to 10:1 compression in 340 and 360. 3500 Stall, aftermarket intake with 750+ CFM carb. |
| Description_INV | Mag 243/243 S-Rlr SK-Kit Chrys 273-360 |
| Description_KEY | 273, 360, 318, AMC, Dodge, Mopar, Plymouth, Dart, Road Runner, Charger, Challenger, 383, 400, 440, 426, HEMI, 426 Wedge, 426 HEMI, RB, B, HEMI, 392, Chrysler, LA |

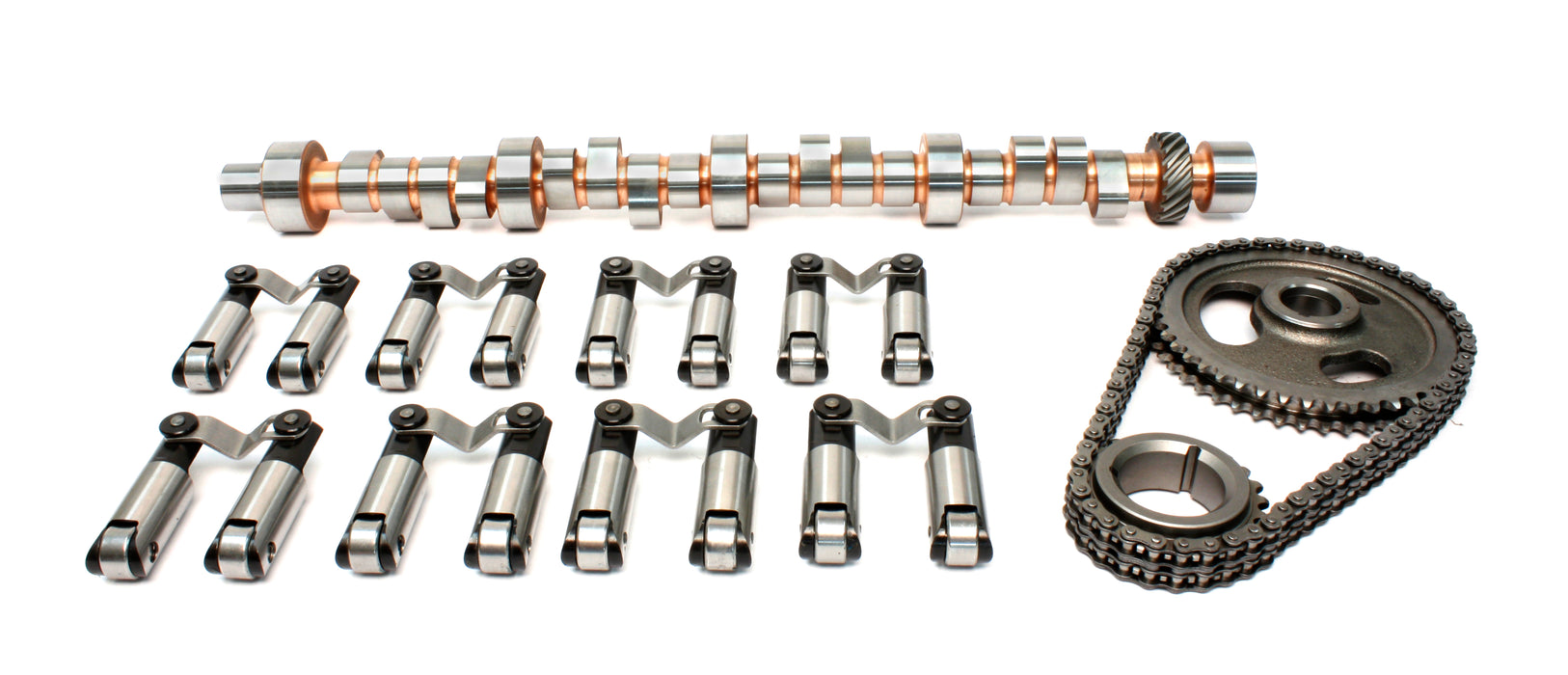

| Description_MKT | SK-KIT - Small Kit Includes: Camshaft, Lifters, Timing Chain Set, Assembly Lube, Decals and Instructions. |
| Description_SHO | Mag243/243SRlrSKChLA |
| Description_SHP | None |
| Engine Family | Chrysler 273-360 c.i. 8 Cylinder (1964-2002) |
| Exhaust Duration at .050 inch Lift | 243 |
| Exhaust Valve Lift | 0.55 |
| Gaskets Included | No |
| height | 5.0 |
| Intake Duration at .050 Inch Lift | 243 |
| Intake Valve Lift | 0.55 |
| K-Kit Upgrade | K20-701-9 |
| Kit Type | SK-Kit - Small Kit |
| length | 25.5 |
| Lifter Type | Solid Roller |
| Lifters Included | Yes |
| Lobe Separation | 110 |
| Locks Included | No |
| LTL | N |
| Pushrods Included | No |
| Retainers Included | No |
| Timing Chain and Gears Included | Yes |
| Title | Magnum 243/243 Solid Roller Cam SK-Kit for Chrysler 273-360 |
| Usage | Street/Strip |
| Valve Springs Required | Yes |
| Valve Stem Seals Included | No |
| weight | 22.0 |
| width | 10.25 |
