COMP Cams SK12-772-8 Xtreme Energy 248/254 Solid Roller Cam SK-Kit for Chevrolet Small Block
by COMP Cams
SKU ds_BDQQ_SK12-772-8
Proudly Canadian
Albertan Owned
Supporting Canadian truckers since 2018
Secure Payments
Financing Available
SSL encrypted checkout with financing options
Trusted Brands
Top-Quality Suppliers
Authorized dealer for Fox, Bilstein, BFGoodrich & 50+ brands
Sold out
Original price
$1,768.00
-
Original price
$1,768.00
Original price
$1,768.00
$1,768.00
$1,768.00
-
$1,768.00
Current price
$1,768.00
Availability:
Out of stock
Description

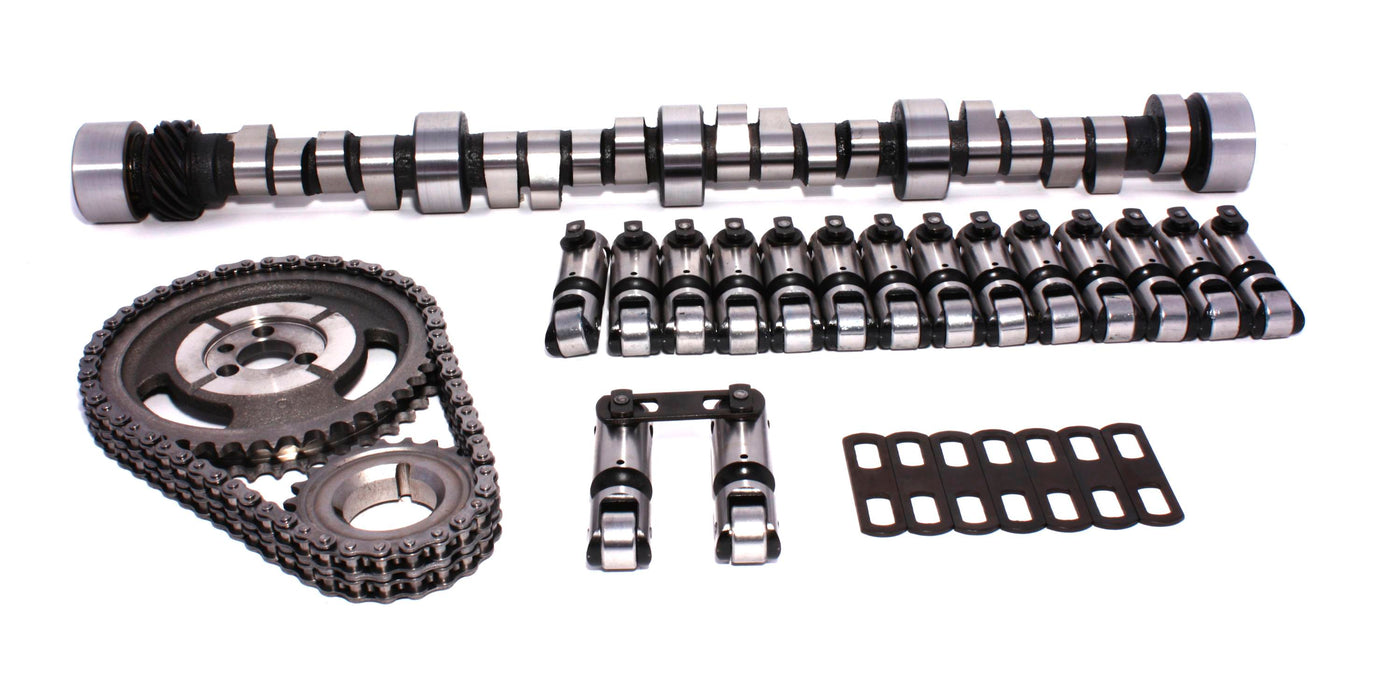

SK-KIT - Small Kit Includes: Camshaft, Lifters, Timing Chain Set, Assembly Lube, Decals and Instructions.
Resources
Installation InstructionsResources
Installation InstructionsSpecifications
| Advertised Exhaust Duration | 292 |
| Advertised Intake Duration | 286 |
| Amazon ASIN | B001R9BW6Y |
| Assembly Lubricant Included | No |
| Basic Operating RPM Range | 3,000-7000 |
| C.A.R.B. E.O. Number | N/A |
| C.A.R.B. Exempt for California Certified Vehicles Manufactured Before 1965? | Yes, but must meet tailpipe emission standards for year of vehicle. |
| C.A.R.B. Exempt for Federally Certified Vehicles Manufactured Before 1967? | Yes, but must meet tailpipe emission standards for year of vehicle. |
| C.A.R.B. Exempt for Foreign Vehicles Manufactured Before 1967? | Yes, but must meet tailpipe emission standards for year of vehicle. |
| C.A.R.B. Exempt for On-Road Vehicles? | No |
| C.A.R.B. Exempt for Racing and Off-Road Only Vehicles? | Yes, but must be a race/competition only vehicle. |
| C.A.R.B. Exemption Reason | N/A |
| California Proposition 65 | WARNING: Cancer and Reproductive Harm P65Warnings.ca.gov |
| Cam Type | Solid Roller |
| Camshaft Gear Attachment | 3-Bolt |
| Camshaft Material | Austempered Ductile Iron |
| Description_ASM | Fits Chevrolet GEN 1 Small Blocks including the 262, 265, 267, 283, 302, 305, 307, 327, 350 and 400. Does not fit LT1/LT4, or factory roller Small Blocks built from 1985 and newer. GM gradually added roller camshafts to 305's and 350's from the mid 80's forward. Camaros/Firebirds/Corvettes received the roller cams early, but many trucks and SUV's had flat tappet cams until the mid 90's. Remove the intake or timing cover to confirm whether the block is a factory roller or flat tappet. Does not fit the LS1, LS2, LS3 or any LS-based 4.8, 5.3, 5.7, 6.0 and 6.2. 1955-1957 Chevrolet 265 engines require a groove on the 5th cam journal for oiling. Contact us for more information. |
| Description_DEF | Engine Camshaft Kit |
| Description_DES | Endure-X Solid Roller Lifter Set for Chevrolet Small Block |
| Description_DES | Magnum Double Row Timing Set for '78-'86 Chevrolet V6 and 265-400 Small Block |
| Description_DES | Xtreme Energy 248/254 Solid Roller Cam for Chevrolet Small Block |
| Description_DES | Xtreme Energy 248/254 Solid Roller Cam SK-Kit for Chevrolet Small Block |
| Description_INV | XE 248/254 SRlr SK-Kit Small Block Chevy |
| Description_KEY | 265, 283, 307, 302, 305, 327, 350, 383, 400, 427, L46, L48, L65, LM1, LT-1, L82, L81, LS9, L83, L98, L05, LG3, LG4, LT1, LT4, Camaro, Corvette, Chevelle, Stingray, Silverado, C10, Firebird, Chevrolet, Chevy, Small Block Chevy, Caprice, Malibu, Impala, Nova, 355, GEN1, Monte Carlo, S10 |
| Description_MKT | SK-KIT - Small Kit Includes: Camshaft, Lifters, Timing Chain Set, Assembly Lube, Decals and Instructions. |
| Description_SHO | XE 248/254 SRlrSKSBC |
| Description_SHP | None |
| Exhaust Duration at .050 inch Lift | 254 |
| Exhaust Valve Lift | 0.582 |
| Gaskets Included | No |
| height | 5.0 |
| Intake Duration at .050 Inch Lift | 248 |
| Intake Valve Lift | 0.576 |
| Kit Type | SK-Kit - Small Kit |
| length | 25.5 |
| Lifter Type | Solid Roller |
| Lifters Included | Yes |
| Lobe Separation | 110 |
| Locks Included | No |
| LTL | N |
| Pushrods Included | No |
| Retainers Included | No |
| Timing Chain and Gears Included | Yes |
| Title | Xtreme Energy 248/254 Solid Roller Cam SK-Kit for Chevrolet Small Block |
| Usage | Street/Performance |
| Valve Springs Required | Yes |
| Valve Stem Seals Included | No |
| weight | 19.5 |
| width | 10.25 |
