COMP Cams SK11-218-4 Magnum 236/236 Solid Flat Cam SK-Kit for Chevrolet Big Block 396-454
by COMP Cams
SKU ds_BDQQ_SK11-218-4
Proudly Canadian
Albertan Owned
Supporting Canadian truckers since 2018
Secure Payments
Financing Available
SSL encrypted checkout with financing options
Trusted Brands
Top-Quality Suppliers
Authorized dealer for Fox, Bilstein, BFGoodrich & 50+ brands
Sold out
Original price
$643.13
-
Original price
$643.13
Original price
$643.13
$643.13
$643.13
-
$643.13
Current price
$643.13
Availability:
Out of stock
Description

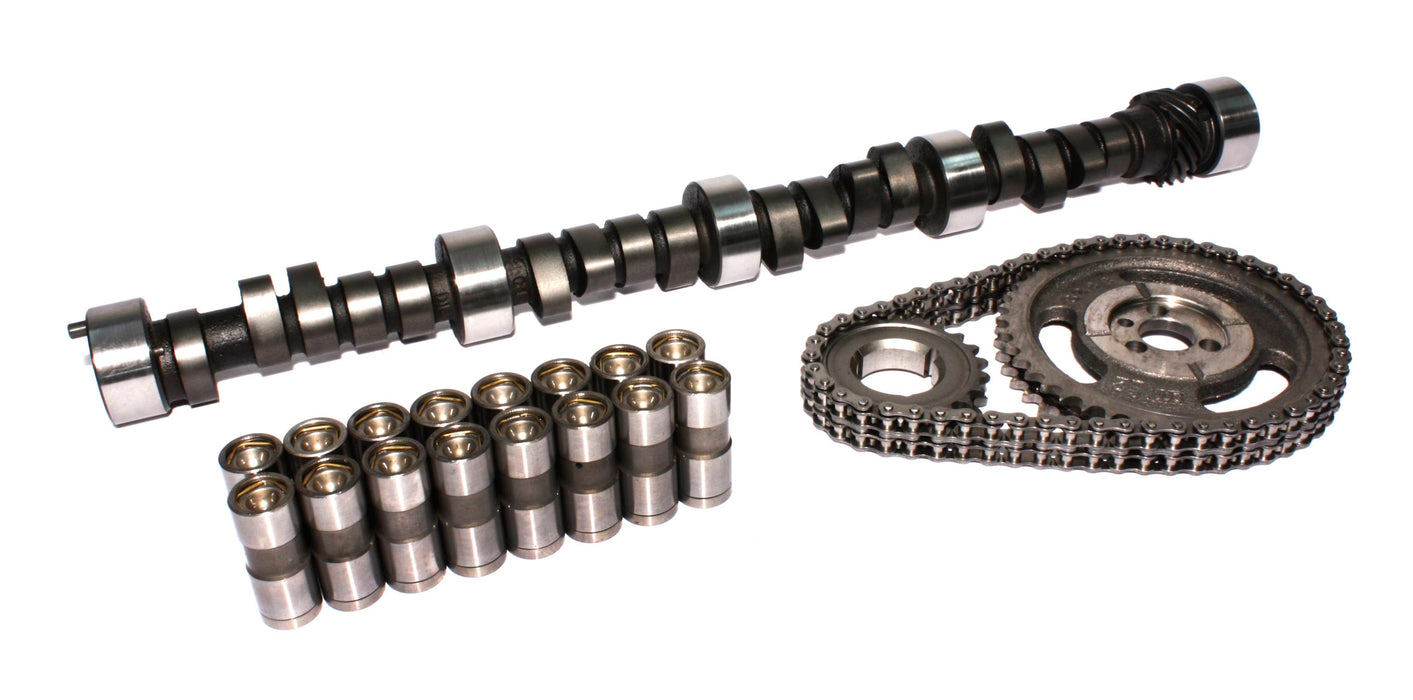

SK-KIT - Small Kit Includes: Camshaft, Lifters, Timing Chain Set, Assembly Lube, Decals and Instructions.
Resources
Installation InstructionsResources
Installation InstructionsSpecifications
| Advertised Exhaust Duration | 282 |
| Advertised Intake Duration | 282 |
| Amazon ASIN | B001R99RRU |
| Assembly Lubricant Included | Yes |
| Basic Operating RPM Range | 2,000-6,000 |
| C.A.R.B. E.O. Number | N/A |
| C.A.R.B. Exempt for California Certified Vehicles Manufactured Before 1965? | Yes, but must meet tailpipe emission standards for year of vehicle. |
| C.A.R.B. Exempt for Federally Certified Vehicles Manufactured Before 1967? | Yes, but must meet tailpipe emission standards for year of vehicle. |
| C.A.R.B. Exempt for Foreign Vehicles Manufactured Before 1967? | Yes, but must meet tailpipe emission standards for year of vehicle. |
| C.A.R.B. Exempt for On-Road Vehicles? | No |
| C.A.R.B. Exempt for Racing and Off-Road Only Vehicles? | Yes, but must be a race/competition only vehicle. |
| C.A.R.B. Exemption Reason | N/A |
| California Proposition 65 | WARNING: Cancer and Reproductive Harm P65Warnings.ca.gov |
| Cam Type | Solid Flat Tappet |
| Camshaft Gear Attachment | 3-Bolt |
| Camshaft Material | Cast Iron |
| Camshaft Series | Magnum |
| Description_ASM | Chevrolet GEN IV 396-454 Big Block Engines Originally Equipped with Flat Tappet Camshafts |
| Description_DEF | Engine Camshaft Kit |
| Description_DES | Magnum 236/236 Solid Flat Cam for Chevrolet Big Block 396-454 |
| Description_DES | Magnum 236/236 Solid Flat Cam SK-Kit for Chevrolet Big Block 396-454 |
| Description_DES | Magnum Double Row Timing Set for '65-'91 396-454 Chevrolet Big Block |
| Description_DES | Solid Lifter Set for Cadillac 472-500 and Chevrolet. |
| Description_EXT | Excellent for street machines. Use 2500+ stall, headers, 9:1+ compression and lower gears. Rough idle. |
| Description_INV | Magnum 236/236 S-Flat SK-Kit BBC 396-454 |
| Description_KEY | Chevelle, Camaro, Corvette, Stingray, Silverado, C10, Firebird, Chevrolet, Big Block, Chevy, BBC, 454, 427, 502, 396, Caprice, Malibu, Impala, Nova, Monte Carlo, S10, 572 |
| Description_MKT | SK-KIT - Small Kit Includes: Camshaft, Lifters, Timing Chain Set, Assembly Lube, Decals and Instructions. |
| Description_SHO | Mag 236/236 SFTSKBBC |
| Description_SHP | None |
| Engine Family | Chevrolet 396-454 c.i. 8 Cylinder (1967-1996) |
| Exhaust Duration at .050 inch Lift | 236 |
| Exhaust Valve Lift | 0.561 |
| Gaskets Included | No |
| height | 5.0 |
| Intake Duration at .050 Inch Lift | 236 |
| Intake Valve Lift | 0.561 |
| Kit Type | SK-Kit - Small Kit |
| length | 26.0 |
| Lifter Type | Solid Flat Tappet |
| Lifters Included | Yes |
| Lobe Separation | 110 |
| Locks Included | No |
| LTL | N |
| Pushrods Included | No |
| Retainers Included | No |
| Timing Chain and Gears Included | Yes |
| Title | Magnum 236/236 Solid Flat Cam SK-Kit for Chevrolet Big Block 396-454 |
| Usage | Street/Strip |
| Valve Springs Required | Yes |
| Valve Stem Seals Included | No |
| weight | 22.0 |
| width | 10.5 |
