COMP Cams SK09-430-8 Magnum 224/224 Hydraulic Roller Cam SK-Kit for Chevrolet 262/4.3L
by COMP Cams
SKU ds_BDQQ_SK09-430-8
Proudly Canadian
Albertan Owned
Supporting Canadian truckers since 2018
Secure Payments
Financing Available
SSL encrypted checkout with financing options
Trusted Brands
Top-Quality Suppliers
Authorized dealer for Fox, Bilstein, BFGoodrich & 50+ brands
Sold out
Original price
$1,226.98
-
Original price
$1,226.98
Original price
$1,226.98
$1,226.98
$1,226.98
-
$1,226.98
Current price
$1,226.98
Availability:
Out of stock
Description
Limited high performance street use. Needs intake, headers and 2500+ stall, 3.73 to 4.10 gears. Mild rough idle.
Resources
Installation InstructionsResources
Installation InstructionsSpecifications
| Advertised Exhaust Duration | 280 |
| Advertised Intake Duration | 280 |
| Amazon ASIN | B001R9FMJ2 |
| Assembly Lubricant Included | No |
| Basic Operating RPM Range | 2,000-5,500 |
| C.A.R.B. E.O. Number | N/A |
| C.A.R.B. Exempt for California Certified Vehicles Manufactured Before 1965? | Yes, but must meet tailpipe emission standards for year of vehicle. |
| C.A.R.B. Exempt for Federally Certified Vehicles Manufactured Before 1967? | Yes, but must meet tailpipe emission standards for year of vehicle. |
| C.A.R.B. Exempt for Foreign Vehicles Manufactured Before 1967? | Yes, but must meet tailpipe emission standards for year of vehicle. |
| C.A.R.B. Exempt for On-Road Vehicles? | No |
| C.A.R.B. Exempt for Racing and Off-Road Only Vehicles? | Yes, but must be a race/competition only vehicle. |
| C.A.R.B. Exemption Reason | N/A |
| California Proposition 65 | WARNING: Cancer and Reproductive Harm P65Warnings.ca.gov |
| Cam Type | Hydraulic Roller |
| Camshaft Gear Attachment | 3-Bolt |
| Camshaft Material | Austempered Ductile Iron |
| Camshaft Series | Magnum |
| Description_DEF | Engine Camshaft Kit |
| Description_DES | Hi-Tech Roller Race Timing Set for OE Roller Chevrolet 305-350 and 4.3L V6 |
| Description_DES | Magnum 224/224 Hydraulic Roller Cam for Chevrolet 262/4.3L |
| Description_DES | Magnum 224/224 Hydraulic Roller Cam SK-Kit for Chevrolet 262/4.3L |
| Description_EXT | Limited high performance street use. Needs intake, headers and 2500+ stall, 3.73 to 4.10 gears. Mild rough idle. |
| Description_INV | Magnum 224/224 Hyd Rlr SK-Kit Chev 4.3L |
| Description_KEY | 4.3: 262 |
| Description_KEY | 90 Degree V6 |
| Description_KEY | Astro Van |
| Description_KEY | Blazer |
| Description_KEY | Chevrolet 262 |
| Description_KEY | Chevrolet 4.3L |
| Description_KEY | GMC |
| Description_KEY | GMC Safari |
| Description_KEY | L35 |
| Description_KEY | LB1 |
| Description_KEY | LB4 |
| Description_KEY | LF6 |
| Description_KEY | S10 |
| Description_KEY | S10 Blazer |
| Description_KEY | S15 |
| Description_KEY | Safari |
| Description_KEY | Silverado |
| Description_KEY | Sonoma |

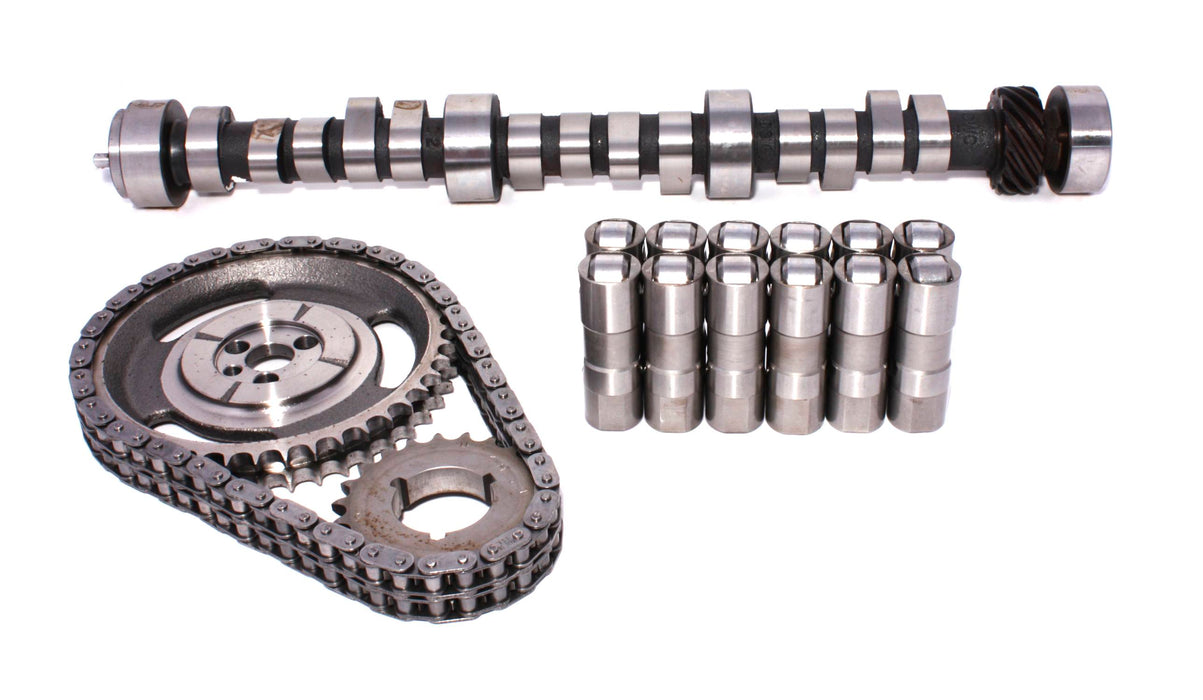

| Description_MKT | SK-KIT - Small Kit Includes: Camshaft, Lifters, Timing Chain Set, Assembly Lube, Decals and Instructions. |
| Description_SHO | Mag 224/224Rlr SK4.3 |
| Description_SHP | None |
| Engine Family | Chevrolet 4.3L 262 c.i. 90 Degree 6 Cylinder (1987+) Non-Balance Shaft |
| Exhaust Duration at .050 inch Lift | 224 |
| Exhaust Valve Lift | 0.525 |
| Gaskets Included | No |
| height | 5.0 |
| Intake Duration at .050 Inch Lift | 224 |
| Intake Valve Lift | 0.525 |
| Kit Type | SK-Kit - Small Kit |
| length | 26.0 |
| Lifter Type | Hydraulic Roller |
| Lifters Included | Yes |
| Lobe Separation | 110 |
| Locks Included | No |
| LTL | N |
| Pushrods Included | No |
| Retainers Included | No |
| Timing Chain and Gears Included | Yes |
| Title | Magnum 224/224 Hydraulic Roller Cam SK-Kit for Chevrolet 262/4.3L |
| Usage | Street/Strip |
| Valve Springs Required | Yes |
| Valve Stem Seals Included | No |
| weight | 18.0 |
| width | 10.5 |
