COMP Cams SK08-503-8 XE Computer Controlled 224/230 Hydraulic Roller Cam SK-Kit OE Roller SBC
by COMP Cams
SKU ds_BDQQ_SK08-503-8
Proudly Canadian
Albertan Owned
Supporting Canadian truckers since 2018
Secure Payments
Financing Available
SSL encrypted checkout with financing options
Trusted Brands
Top-Quality Suppliers
Authorized dealer for Fox, Bilstein, BFGoodrich & 50+ brands
Sold out
Original price
$1,328.61
-
Original price
$1,328.61
Original price
$1,328.61
$1,328.61
$1,328.61
-
$1,328.61
Current price
$1,328.61
Availability:
Out of stock
Description

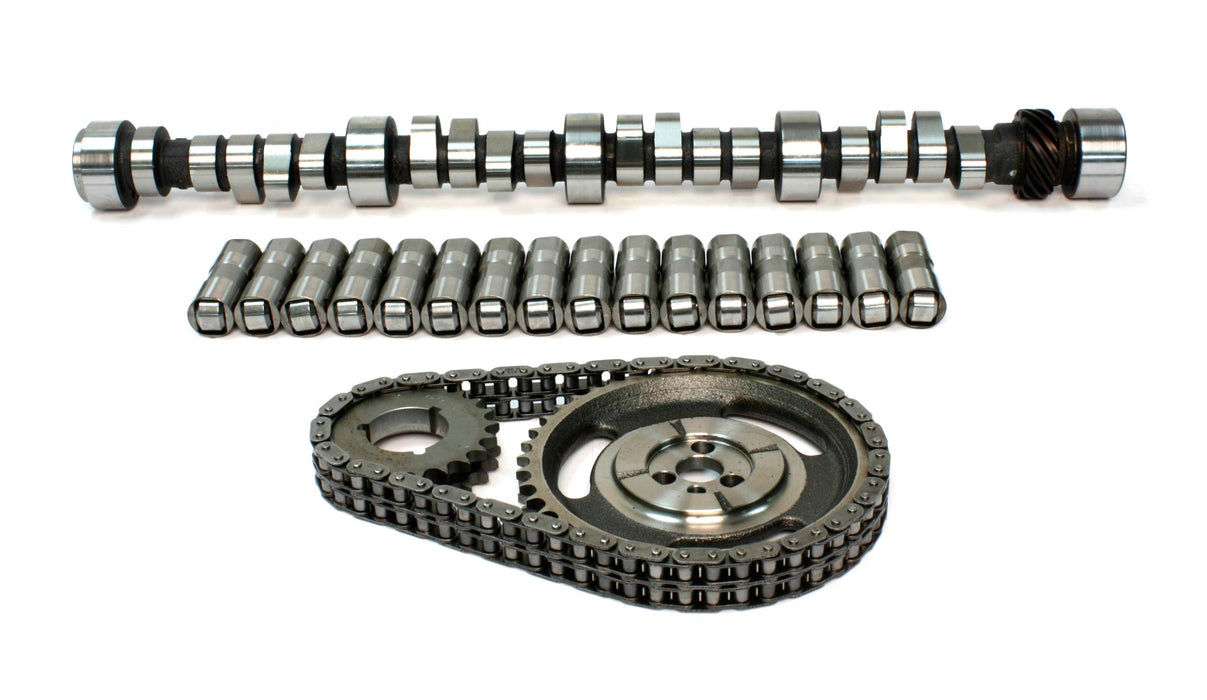

SK-KIT - Small Kit Includes: Camshaft, Lifters, Timing Chain Set, Assembly Lube, Decals and Instructions.
Resources
Installation InstructionsResources
Installation InstructionsSpecifications
| Advertised Exhaust Duration | 280 |
| Advertised Intake Duration | 276 |
| Amazon ASIN | B001R9HA2E |
| Assembly Lubricant Included | No |
| Basic Operating RPM Range | 1,800-5,800 |
| C.A.R.B. E.O. Number | N/A |
| C.A.R.B. Exempt for California Certified Vehicles Manufactured Before 1965? | Yes, but must meet tailpipe emission standards for year of vehicle. |
| C.A.R.B. Exempt for Federally Certified Vehicles Manufactured Before 1967? | Yes, but must meet tailpipe emission standards for year of vehicle. |
| C.A.R.B. Exempt for Foreign Vehicles Manufactured Before 1967? | Yes, but must meet tailpipe emission standards for year of vehicle. |
| C.A.R.B. Exempt for On-Road Vehicles? | No |
| C.A.R.B. Exempt for Racing and Off-Road Only Vehicles? | Yes, but must be a race/competition only vehicle. |
| C.A.R.B. Exemption Reason | N/A |
| California Proposition 65 | WARNING: Cancer and Reproductive Harm P65Warnings.ca.gov |
| Cam Type | Hydraulic Roller |
| Camshaft Gear Attachment | 3-Bolt |
| Camshaft Material | Austempered Ductile Iron |
| Camshaft Series | Xtreme Energy Computer Controlled |
| Description_ASM | Fits '87+ GEN 1 Chevrolet 305-350 Small Blocks w/ Factory Roller Camshafts (Not LT-1/LS1 etc) |
| Description_DEF | Engine Camshaft Kit |
| Description_DES | Hi-Tech Roller Race Timing Set for OE Roller Chevrolet 305-350 and 4.3L V6 |
| Description_DES | OE-Style Hydraulic Roller Lifter Set for '87+ SBC and LT/LS |
| Description_DES | XE Computer Controlled 224/230 Hydraulic Roller Cam SK-Kit OE Roller SBC |
| Description_DES | Xtreme Energy Computer Controlled 224/230 Hydraulic Roller Cam for OE Roller SBC |
| Description_EXT | Needs modified TPI w/injectors, plenum, runners, exhaust, 2000+ stall. Requires custom tuning. |
| Description_INV | XE CCtrl 224/230 H-Rlr SK-Kit OE Rlr SBC |
| Description_KEY | 265, 283, 307, 302, 305, 327, 350, 383, 400, 427, L46, L48, L65, LM1, LT-1, L82, L81, LS9, L83, L98, L05, LG3, LG4, LT1, LT4, Camaro, Corvette, Chevelle, Stingray, Silverado, C10, Firebird, Chevrolet, Chevy, Small Block Chevy, Caprice, Malibu, Impala, Nova, 355, GEN1, Monte Carlo, S10 |
| Description_MKT | SK-KIT - Small Kit Includes: Camshaft, Lifters, Timing Chain Set, Assembly Lube, Decals and Instructions. |
| Description_SHO | XE 224/230 HRlrSKSBC |
| Description_SHP | None |
| Engine Family | Chevrolet 305-350 c.i. 8 Cylinder O.E. Roller (1987-1998) |
| Exhaust Duration at .050 inch Lift | 239 |
| Exhaust Valve Lift | 0.51 |
| Gaskets Included | No |
| height | 5.2 |
| Intake Duration at .050 Inch Lift | 224 |
| Intake Valve Lift | 0.503 |
| Kit Type | SK-Kit - Small Kit |
| length | 25.2 |
| Lifter Type | Hydraulic Roller |
| Lifters Included | Yes |
| Lobe Separation | 112 |
| Locks Included | No |
| LTL | N |
| Pushrods Included | No |
| Retainers Included | No |
| Timing Chain and Gears Included | Yes |
| Title | XE Computer Controlled 224/230 Hydraulic Roller Cam SK-Kit OE Roller SBC |
| Usage | Street/Performance |
| Valve Springs Required | Yes |
| Valve Stem Seals Included | No |
| weight | 19.34 |
| width | 10.3 |
