COMP Cams MK54-332-58 Stage 2 LST (58X) Master Camshaft Kit for LS 4.8/5.3L Turbo Engines
by COMP Cams
SKU ds_BDQQ_MK54-332-58
Proudly Canadian
Albertan Owned
Supporting Canadian truckers since 2018
Secure Payments
Financing Available
SSL encrypted checkout with financing options
Trusted Brands
Top-Quality Suppliers
Authorized dealer for Fox, Bilstein, BFGoodrich & 50+ brands
Sold out
Original price
$2,684.72
-
Original price
$2,684.72
Original price
$2,684.72
$2,684.72
$2,684.72
-
$2,684.72
Current price
$2,684.72
Availability:
Out of stock
Description

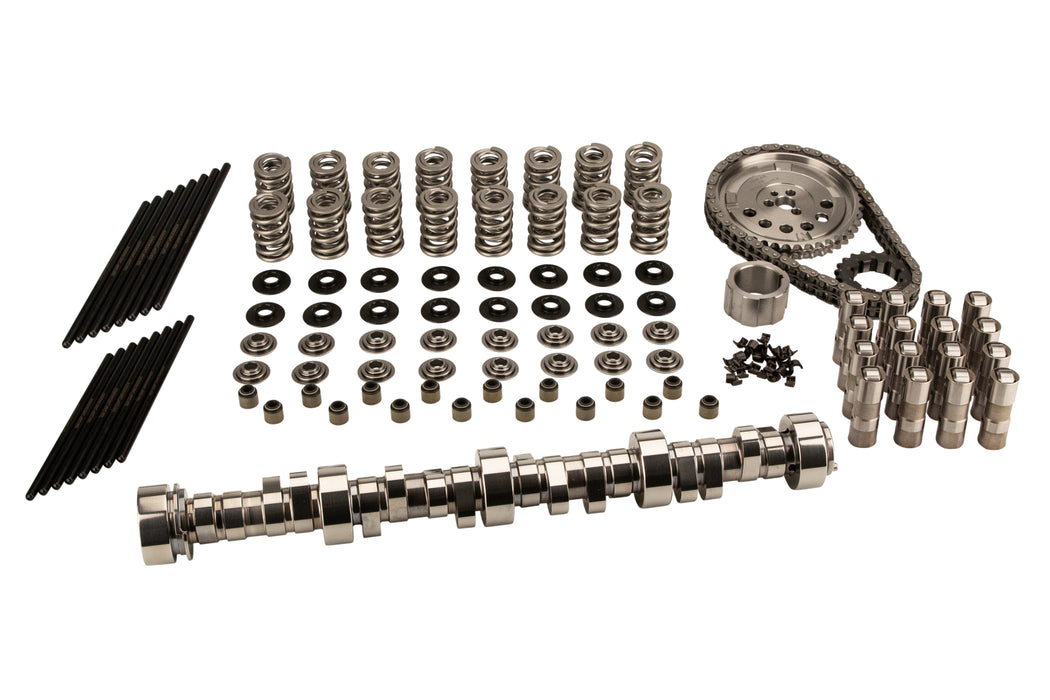

The Stage 2 LST Master Cam Kit for turbo 5.3 LS engines makes power from 2,500-7,400 RPM and is ideal for upgraded lower back pressure systems. Kit includes lifters, 58X timing set, pushrods, springs, retainers, locks, seats and seals.
Resources
Installation InstructionsResources
Installation InstructionsSpecifications
| Advertised Exhaust Duration | 292 |
| Advertised Intake Duration | 286 |
| Amazon ASIN | B07MC8YL72 |
| Assembly Lubricant Included | No |
| Basic Operating RPM Range | 2,500-7,400 |
| C.A.R.B. E.O. Number | N/A |
| C.A.R.B. Exempt for California Certified Vehicles Manufactured Before 1965? | Yes, but must meet tailpipe emission standards for year of vehicle. |
| C.A.R.B. Exempt for Federally Certified Vehicles Manufactured Before 1967? | Yes, but must meet tailpipe emission standards for year of vehicle. |
| C.A.R.B. Exempt for Foreign Vehicles Manufactured Before 1967? | Yes, but must meet tailpipe emission standards for year of vehicle. |
| C.A.R.B. Exempt for On-Road Vehicles? | No |
| C.A.R.B. Exempt for Racing and Off-Road Only Vehicles? | Yes, but must be a race/competition only vehicle. |
| C.A.R.B. Exemption Reason | N/A |
| California Proposition 65 | WARNING: Cancer and Reproductive Harm P65Warnings.ca.gov |
| Cam Type | Hydraulic Roller |
| Camshaft Gear Attachment | 3-Bolt |
| Camshaft Material | Billet Steel |
| Camshaft Series | Low Shock Technology |
| Description_ASC | Included timing set is a 4 pole reluctor, 58x design. |
| Description_ASC | See MK54-332-24 for Master Kit with 1 pole reluctor, 24x design timing set. |
| Description_ASM | Buick: Allure 08 - 09 5.3 L Engine, Buick: LaCrosse 08 - 09 5.3 L Engine, Buick: Rainier 04 - 07 5.3 L Engine, Cadillac: Escalade 02 - 05 5.3 L Engine, Chevrolet: Avalanche 07 - 13 5.3 L Engine, Chevrolet: Avalanche 1500 02 - 06 5.3 L Engine, Chevrolet: Cheyenne 07 - 15 5.3 L Engine, Chevrolet: Colorado 09 - 12 5.3 L Engine, Chevrolet: Express 1500 03 - 14 5.3 L Engine, Chevrolet: Express 2500 10 - 15 4.8 L Engine, Chevrolet: Express 2500 03 - 05 5.3 L Engine, Chevrolet: Express 3500 10 - 15 4.8 L Engine, Chevrolet: Express 3500 03 - 05 5.3 L Engine, Chevrolet: Express Pasajeros 10 - 15 5.3 L Engine, Chevrolet: Impala 06 - 09 5.3 L Engine, Chevrolet: Monte Carlo 06 - 07 5.3 L Engine, Chevrolet: SSR 03 - 04 5.3 L Engine, Chevrolet: Silverado 1500 10 - 13 4.8 L Engine, Chevrolet: Silverado 1500 99 - 13 5.3 L Engine, Chevrolet: Silverado 1500 Classic 07 - 07 5.3 L Engine, Chevrolet: Silverado 2500 99 - 15 5.3 L Engine, Chevrolet: Suburban 14 - 15 5.3 L Engine, Chevrolet: Suburban 1500 00 - 14 5.3 L Engine, Chevrolet: Tahoe 00 - 14 5.3 L Engine, Chevrolet: Trailblazer 06 - 08 5.3 L Engine, Chevrolet: Trailblazer EXT 03 - 06 5.3 L Engine, GMC: Canyon 09 - 12 5.3 L Engine, GMC: Envoy 05 - 09 5.3 L Engine, GMC: Envoy XL 03 - 06 5.3 L Engine, GMC: Envoy XUV 04 - 05 5.3 L Engine, GMC: Savana 1500 03 - 14 5.3 L Engine, GMC: Savana 2500 10 - 15 4.8 L Engine, GMC: Savana 2500 03 - 05 5.3 L Engine, GMC: Savana 3500 10 - 15 4.8 L Engine, GMC: Sierra 11 - 15 5.3 L Engine, GMC: Sierra 1500 10 - 13 4.8 L Engine, GMC: Sierra 1500 99 - 13 5.3 L Engine, GMC: Sierra 1500 Classic 07 - 07 5.3 L Engine, GMC: Sierra 2500 99 - 00 5.3 L Engine, GMC: Yukon 00 - 14 5.3 L Engine, GMC: Yukon XL 1500 00 - 14 5.3 L Engine, Hummer: H3 08 - 10 5.3 L Engine, Hummer: H3T 09 - 10 5.3 L Engine, Isuzu: Ascender 03 - 06 5.3 L Engine, Pontiac: Grand Prix 05 - 08 5.3 L Engine, Saab: 9-7x 05 - 09 5.3 L Engine |
| Description_DEF | Engine Camshaft Kit |
| Description_DES | 7 Tool Steel Retainer Set of 16, 8mm Valve w/ 26926 Springs |
| Description_DES | ID Spring Locator Set of 16 - 1.300" OD, .520" ID, .060" Thickness |
| Description_DES | Keyway Adjustable Billet Timing Set for 58X 3-Bolt, 4 Pole GM LS3 |
| Description_DES | Machined Steel Set of 16 - 7 Degree, 8mm, Single Groove Race Locks |
| Description_DES | Magnum 7.450" Long, .080" Wall, 5/16" Diameter Pushrod Set |
| Description_DES | Race Sportsman 1.320" OD Dual Springs; 1.835" Installed Height; 16 Springs |
| Description_DES | Reduced Travel OE-Style Hydraulic Roller Lifter Set for '87+ SBC and LT/LS |
| Description_DES | Set of 16 Steel Viton Valve Seals for .500" Guide Size, 8mm Valve Stem |
| Description_DES | Stage 2 LST (58X) Master Camshaft Kit for LS 4.8/5.3L Turbo Engines |
| Description_DES | Stage 2 LST Camshaft for LS 4.8/5.3L Turbo Engines |
| Description_EXT | The Stage 2 LST Master Cam Kit for turbo 5.3 LS engines makes power from 2,500-7,400 RPM and is ideal for upgraded lower back pressure systems. Kit includes lifters, 58X timing set, pushrods, springs, retainers, locks, seats and seals. |
| Description_INV | Stage 2 MK GM LS 4.8/5.3L Turbo 58X |
| Description_KEY | GM, 4.8, 5.3, 5.7, 6.0, 6.2, 7.0, LS1, LS2, LS3, LS4, LS6, LS7, LSA, LS9, Camaro, Silverado, LS Swap, 383, 350, SBC, Chevelle, Yukon, L92, LM7, 325, GMC, Trailblazer, Corvette, GM LS, GEN III, GEN 3, GEN IV, GEN 4, DOD, AFM, VVT, BTR, Texas Speed |
| Description_SHO | MKStg258xTurbo |
| Description_SHP | None |
| Description_SLA | Stage 2 LST 58x Master Cam Kit for 4.8 and 5.3 Turbo engines |
| Engine Family | GM LS GEN III/IV 3-Bolt 8 Cylinder (1997-2015) |
| Exhaust Duration at .050 inch Lift | 237 |
| Exhaust Valve Lift | 0.61 |
| Gaskets Included | No |
| Grind Number | 286HLO15 |
| height | 5.5 |
| Intake Duration at .050 Inch Lift | 231 |
| Intake Valve Lift | 0.605 |
| Kit Type | MK-Kit |
| length | 26.0 |
| Lifter Type | Hydraulic Roller |
| Lifters Included | Yes |
| Lobe Separation | 115 |
| Locks Included | Yes |
| LTL | N |
| Pushrods Included | Yes |
| Recommended Upgraded Stock Rocker Arms | 1477-16 |
| Retainers Included | Yes |
| Stage | 2 |
| Timing Set Included | Yes |
| Title | Stage 2 LST (58X) Master Camshaft Kit for LS 4.8/5.3L Turbo Engines |
| Usage | Street / Performance, Street/Strip |
| Valve Seals Included | Yes |
| Valve Spring Seats Included | Yes |
| Valve Springs Included | Yes |
| weight | 27.25 |
| width | 10.5 |
