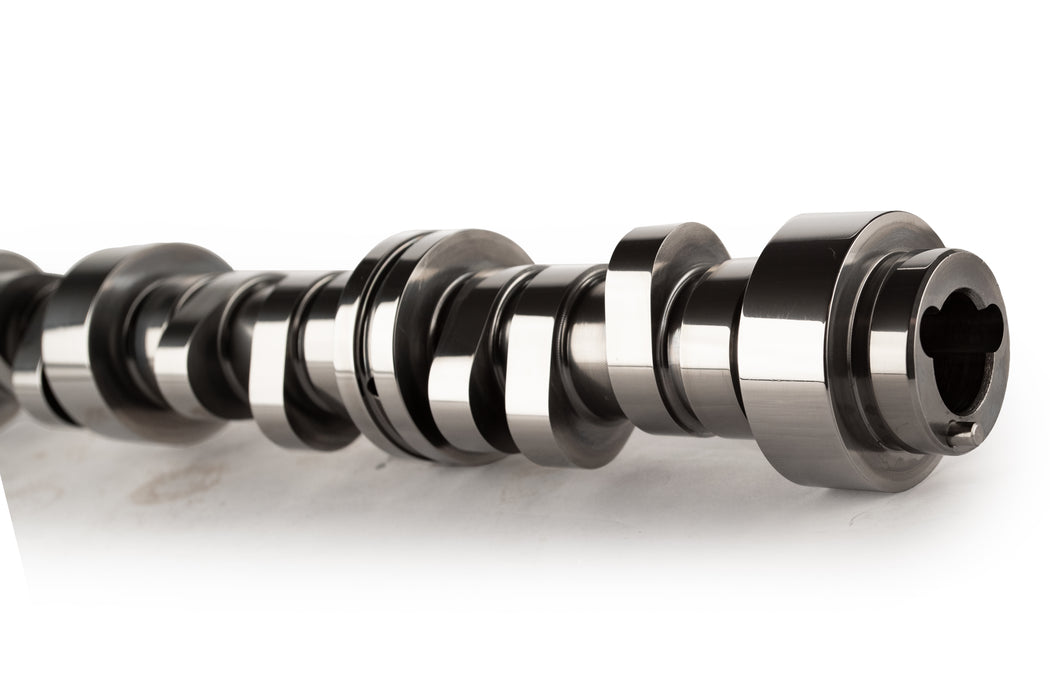

COMP Cams MK224-302-13 Stage 2 LST Master Cam Kit for LT1 Camaro and Corvette w/ AFM Delete
by COMP Cams
SKU ds_BDQQ_MK224-302-13
Proudly Canadian
Albertan Owned
Supporting Canadian truckers since 2018
Secure Payments
Financing Available
SSL encrypted checkout with financing options
Trusted Brands
Top-Quality Suppliers
Authorized dealer for Fox, Bilstein, BFGoodrich & 50+ brands
Sold out
Original price
$2,606.97
-
Original price
$2,606.97
Original price
$2,606.97
$2,606.97
$2,606.97
-
$2,606.97
Current price
$2,606.97
Availability:
Out of stock
Description
The Stage 2 LST Master Cam Kit for LT1 GEN V Camaro and C7 Corvette delivers max horsepower from 4,000 to 7,400 RPM. Deletes AFM and includes lifters, VVT limiter, pushrods, dual springs, retainers, locks, spring seats and seals.
Resources
Installation InstructionsSpecifications
| Advertised Exhaust Duration | 297 |
| Advertised Intake Duration | 290 |
| Amazon ASIN | B07MJH8WV6 |
| Assembly Lubricant Included | No |
| Basic Operating RPM Range | 2,700-7,400 |
| C.A.R.B. E.O. Number | N/A |
| C.A.R.B. Exempt for California Certified Vehicles Manufactured Before 1965? | Yes, but must meet tailpipe emission standards for year of vehicle. |
| C.A.R.B. Exempt for Federally Certified Vehicles Manufactured Before 1967? | Yes, but must meet tailpipe emission standards for year of vehicle. |
| C.A.R.B. Exempt for Foreign Vehicles Manufactured Before 1967? | Yes, but must meet tailpipe emission standards for year of vehicle. |
| C.A.R.B. Exempt for On-Road Vehicles? | No |
| C.A.R.B. Exempt for Racing and Off-Road Only Vehicles? | Yes, but must be a race/competition only vehicle. |
| C.A.R.B. Exemption Reason | N/A |
| California Proposition 65 | WARNING: Cancer and Reproductive Harm P65Warnings.ca.gov |
| Cam Type | Hydraulic Roller |
| Camshaft Gear Attachment | 1-Bolt |
| Camshaft Material | Billet Steel |
| Camshaft Series | Low Shock Technology |
| Description_ASC | See MK224-300-13 for Stage 1. |
| Description_ASM | Chevrolet: Camaro 16 - 19 6.2 L Engine, Chevrolet: Corvette 14 - 19 6.2 L Engine |
| Description_DEF | Engine Camshaft Kit |
| Description_DES | .700" Max Lift Dual Valve Springs for GM LS7, LT1 & LT4 Engines |
| Description_DES | 7 Tool Steel Retainer Set of 16, 8mm Valve w/ 26926 Springs |
| Description_DES | Cam Phaser Limiter Kit for '07-'08 GM GEN IV LS and '14+ GM GEN V LT1 |
| Description_DES | ID Spring Locator Set of 16 - 1.300" OD, .520" ID, .060" Thickness |
| Description_DES | Machined Steel Set of 16 - 7 Degree, 8mm, Single Groove Race Locks |
| Description_DES | Magnum 7.900" Long, .080" Wall, 3/8" Diameter Pushrod Set |
| Description_DES | Reduced Travel OE-Style Hydraulic Roller Lifter Set for '87+ SBC and LT/LS |
| Description_DES | Set of 16 Steel Viton Valve Seals for .500" Guide Size, 8mm Valve Stem |
| Description_DES | Stage 2 LST Cam for LT1 Camaro and Corvette w/ AFM Delete |
| Description_DES | Stage 2 LST Master Cam Kit for LT1 Camaro and Corvette w/ AFM Delete |
| Description_EXT | The Stage 2 LST Master Cam Kit for LT1 GEN V Camaro and C7 Corvette delivers max horsepower from 4,000 to 7,400 RPM. Deletes AFM and includes lifters, VVT limiter, pushrods, dual springs, retainers, locks, spring seats and seals. |
| Description_INV | Stg 2 LST MK LT1 Camaro/Corvette AFM Del |
| Description_KEY | GM, 4.8, 5.3, 5.7, 6.0, 6.2, 7.0, LS1, LS2, LS3, LS4, LS6, LS7, LSA, LS9, Camaro, Silverado, LS Swap, 383, 350, SBC, Chevelle, Yukon, L92, LM7, 325, GMC, Trailblazer, Corvette, GM LS, GEN III, GEN 3, GEN IV, GEN 4, DOD, AFM, VVT, BTR, Texas Speed |
| Description_SHO | Stg2LSTMKLT1AFDelete |
| Description_SHP | None |
| Description_SLA | Stage 2 LST Master Cam Kit for LT1 Camaro and Corvette |
| Engine Family | GM GEN V LT w/ VVT w/o AFM 2014-Present |
| Exhaust Duration at .050 inch Lift | 248 |
| Exhaust Valve Lift | 0.643 |
| Gaskets Included | No |
| Grind Number | 290LMH20 |
| height | 5.5 |
| Intake Duration at .050 Inch Lift | 235 |
| Intake Valve Lift | 0.65 |
| Kit Type | MK-Kit |
| length | 26.0 |
| Lifter Type | Hydraulic Roller |
| Lifters Included | Yes |
| Lobe Separation | 120 |
| Locks Included | Yes |
| LTL | N |
| Pushrods Included | Yes |
| Recommended Upgraded Stock Rocker Arms | N/A |
| Retainers Included | Yes |
| Stage | 2 |
| Timing Set Included | No |
| Title | Stage 2 LST Master Cam Kit for LT1 Camaro and Corvette w/ AFM Delete |
| Usage | Street/Strip |
| Valve Seals Included | Yes |
| Valve Spring Seats Included | Yes |
| Valve Springs Included | Yes |
| weight | 27.25 |
| width | 10.5 |
