COMP Cams K54-418-11 XFI RPM 224/228 Hydraulic Roller Cam K-Kit for GM LS GEN III/IV
by COMP Cams
SKU ds_BDQQ_K54-418-11
Proudly Canadian
Albertan Owned
Supporting Canadian truckers since 2018
Secure Payments
Financing Available
SSL encrypted checkout with financing options
Trusted Brands
Top-Quality Suppliers
Authorized dealer for Fox, Bilstein, BFGoodrich & 50+ brands
Sold out
Original price
$1,611.61
-
Original price
$1,611.61
Original price
$1,611.61
$1,611.61
$1,611.61
-
$1,611.61
Current price
$1,611.61
Availability:
Out of stock
Description

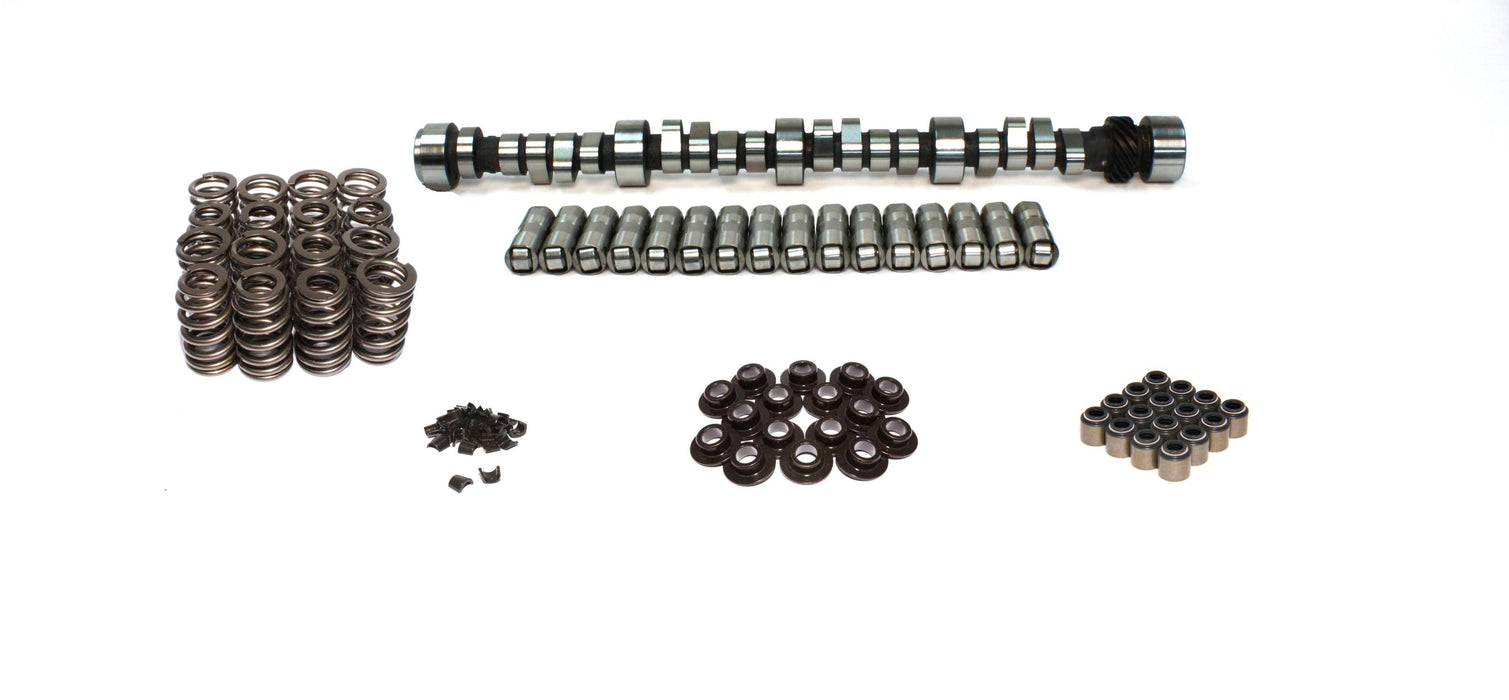

K-KIT - Complete Kit Includes: Camshaft, Lifters, Valve Springs, Retainers, Valve Locks, Valve Stem Seals, Timing Chain Set, Assembly Lube (in flat tappet applications), Decals and Instructions.
Resources
Installation InstructionsResources
Installation InstructionsSpecifications
| Advertised Exhaust Duration | 281 |
| Advertised Intake Duration | 277 |
| Amazon ASIN | B005H89TNY |
| Assembly Lubricant Included | No |
| Basic Operating RPM Range | 2,000-6,800 |
| C.A.R.B. E.O. Number | N/A |
| C.A.R.B. Exempt for California Certified Vehicles Manufactured Before 1965? | Yes, but must meet tailpipe emission standards for year of vehicle. |
| C.A.R.B. Exempt for Federally Certified Vehicles Manufactured Before 1967? | Yes, but must meet tailpipe emission standards for year of vehicle. |
| C.A.R.B. Exempt for Foreign Vehicles Manufactured Before 1967? | Yes, but must meet tailpipe emission standards for year of vehicle. |
| C.A.R.B. Exempt for On-Road Vehicles? | No |
| C.A.R.B. Exempt for Racing and Off-Road Only Vehicles? | Yes, but must be a race/competition only vehicle. |
| C.A.R.B. Exemption Reason | N/A |
| California Proposition 65 | WARNING: Cancer and Reproductive Harm P65Warnings.ca.gov |
| Cam Type | Hydraulic Roller |
| Camshaft Material | Billet Steel |
| Description_ASM | Fits 4.8, 5.3, 5.7, 6.0, 6.2 and 7.0 Liter LS1, LS2, LS3, LS4, LS6, LS7 plus SUV and Truck Engines (Grinds are specific to displacement and cylinder head design) |
| Description_DEF | Engine Camshaft Kit |
| Description_DES | 7 Steel Retainer Set of 16 for GM GEN III w/ 26915/26918 Beehive Springs |
| Description_DES | Machined Steel Set of 16 - 7 Degree, 8mm, Single Groove Race Locks |
| Description_DES | OE-Style Hydraulic Roller Lifter Set for '87+ SBC and LT/LS |
| Description_DES | Performance Street 1.290" OD Beehive Spring; 1.800" Installed Height; 16 Springs |
| Description_DES | Set of 16 Steel Viton Valve Seals for .500" Guide Size, 8mm Valve Stem |
| Description_DES | XFI RPM 224/228 Hydraulic Roller Cam for GM LS GEN III/IV |
| Description_DES | XFI RPM 224/228 Hydraulic Roller Cam K-Kit for GM LS GEN III/IV |
| Description_EXT | Street/strip camshaft designed for use with FAST LSX intake. Requires programmer. |
| Description_INV | XFI RPM 224/228 Hyd Rlr K-KIT LS |
| Description_KEY | GM, 4.8, 5.3, 5.7, 6.0, 6.2, 7.0, LS1, LS2, LS3, LS4, LS6, LS7, LSA, LS9, Camaro, Silverado, LS Swap, 383, 350, SBC, Chevelle, Yukon, L92, LM7, 325, GMC, Trailblazer, Corvette, GM LS, GEN III, GEN 3, GEN IV, GEN 4, DOD, AFM, VVT, BTR, Texas Speed |
| Description_MKT | K-KIT - Complete Kit Includes: Camshaft, Lifters, Valve Springs, Retainers, Valve Locks, Valve Stem Seals, Timing Chain Set, Assembly Lube (in flat tappet applications), Decals and Instructions. |
| Description_SHO | Engine Camshaft Kit |
| Description_SHP | None |
| Exhaust Duration at .050 inch Lift | 228 |
| Exhaust Valve Lift | 0.537 |
| Gaskets Included | No |
| height | 5.0 |
| Intake Duration at .050 Inch Lift | 224 |
| Intake Valve Lift | 0.534 |
| Kit Type | K-Kit - Complete Kit |
| length | 25.3 |
| Lifter Type | Hydraulic Roller |
| Lifters Included | Yes |
| Lobe Separation | 112 |
| LTL | N |
| Title | XFI RPM 224/228 Hydraulic Roller Cam K-Kit for GM LS GEN III/IV |
| Usage | Street/Performance |
| Valve Springs Included | Yes |
| weight | 20.194 |
| width | 10.2 |
