COMP Cams K20-233-4 340-360 street/strip use. 9:1 compression with 2500 stall, strong mid-range.
by COMP Cams
SKU ds_BDQQ_K20-233-4
Proudly Canadian
Albertan Owned
Supporting Canadian truckers since 2018
Secure Payments
Financing Available
SSL encrypted checkout with financing options
Trusted Brands
Top-Quality Suppliers
Authorized dealer for Fox, Bilstein, BFGoodrich & 50+ brands
Sold out
Original price
$1,115.64
-
Original price
$1,115.64
Original price
$1,115.64
$1,115.64
$1,115.64
-
$1,115.64
Current price
$1,115.64
Availability:
Out of stock
Description

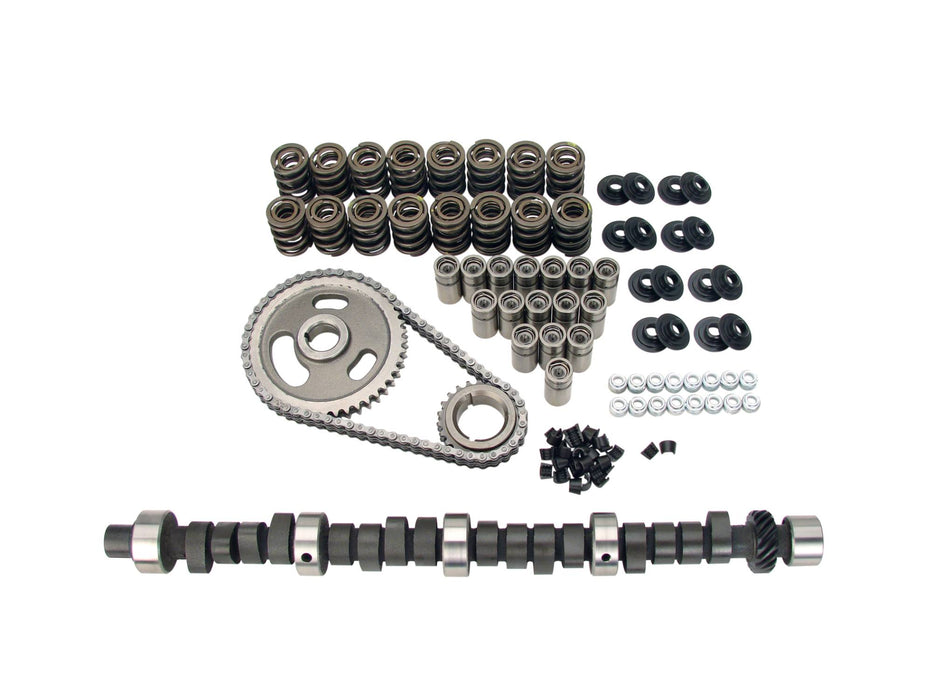

K-KIT - Complete Kit Includes: Camshaft, Lifters, Valve Springs, Retainers, Valve Locks, Valve Stem Seals, Timing Chain Set, Assembly Lube (in flat tappet applications), Decals and Instructions.
Resources
Installation InstructionsResources
Installation InstructionsSpecifications
| Advertised Exhaust Duration | 274 |
| Advertised Intake Duration | 230 |
| Amazon ASIN | B001R9DTNI |
| Assembly Lubricant Included | Yes |
| Basic Operating RPM Range | 2,000-6,000 |
| C.A.R.B. E.O. Number | N/A |
| C.A.R.B. Exempt for California Certified Vehicles Manufactured Before 1965? | Yes, but must meet tailpipe emission standards for year of vehicle. |
| C.A.R.B. Exempt for Federally Certified Vehicles Manufactured Before 1967? | Yes, but must meet tailpipe emission standards for year of vehicle. |
| C.A.R.B. Exempt for Foreign Vehicles Manufactured Before 1967? | Yes, but must meet tailpipe emission standards for year of vehicle. |
| C.A.R.B. Exempt for On-Road Vehicles? | No |
| C.A.R.B. Exempt for Racing and Off-Road Only Vehicles? | Yes, but must be a race/competition only vehicle. |
| C.A.R.B. Exemption Reason | N/A |
| California Proposition 65 | WARNING: Cancer and Reproductive Harm P65Warnings.ca.gov |
| Cam Type | Solid Flat Tappet |
| Camshaft Material | Cast Iron |
| Camshaft Series | Xtreme Energy |
| Description_ASM | Fits Chrysler 273, 318, 340 and 360 LA |
| Description_DEF | Engine Camshaft Kit |
| Description_DES | 10 Superlock Steel Retainer Set of 16 for 1.437"-1.500" OD Valve Spring |
| Description_DES | Engine Valve Spring Kit |
| Description_DES | Magnum Double Row Timing Set for '56-'88 Chrysler 273-360 V8 |
| Description_DES | Set of 16 - 10 Degree, 3/8", 4 Groove Locks for Chrysler |
| Description_DES | Set of 16 PTFE Valve Seals for .530" Guide Size, 3/8" Valve Stem |
| Description_DES | Solid Lifter Set for Chrysler 273-360, 383-440/426 HEMI |
| Description_DES | Xtreme Energy 230/236 Solid Flat Cam for Chrysler 273-360 |
| Description_DES | Xtreme Energy 230/236 Solid Flat Cam K-Kit for Chrysler 273-360 |
| Description_EXT | 340-360 street/strip use. 9:1 compression with 2500 stall, strong mid-range. |
| Description_INV | XE 230/236 S-Flat K-Kit Chrysler 273-360 |
| Description_KEY | 273, 360, 318, AMC, Dodge, Mopar, Plymouth, Dart, Road Runner, Charger, Challenger, 383, 400, 440, 426, HEMI, 426 Wedge, 426 HEMI, RB, B, HEMI, 392, Chrysler, LA |
| Description_MKT | K-KIT - Complete Kit Includes: Camshaft, Lifters, Valve Springs, Retainers, Valve Locks, Valve Stem Seals, Timing Chain Set, Assembly Lube (in flat tappet applications), Decals and Instructions. |
| Description_SHO | Engine Camshaft Kit |
| Description_SHP | None |
| Engine Family | Chrysler 273-360 c.i. 8 Cylinder (1964-2002) |
| Exhaust Duration at .050 inch Lift | 236 |
| Exhaust Valve Lift | 0.501 |
| Gaskets Included | No |
| height | 5.3 |
| Intake Duration at .050 Inch Lift | 230 |
| Intake Valve Lift | 0.488 |
| Kit Type | K-Kit - Complete Kit |
| length | 25.0 |
| Lifter Type | Solid Flat Tappet |
| Lifters Included | Yes |
| Lobe Separation | 110 |
| LTL | N |
| Title | Xtreme Energy 230/236 Solid Flat Cam K-Kit for Chrysler 273-360 |
| Usage | Street/Performance |
| Valve Springs Included | Yes |
| weight | 24.4 |
| width | 10.3 |
