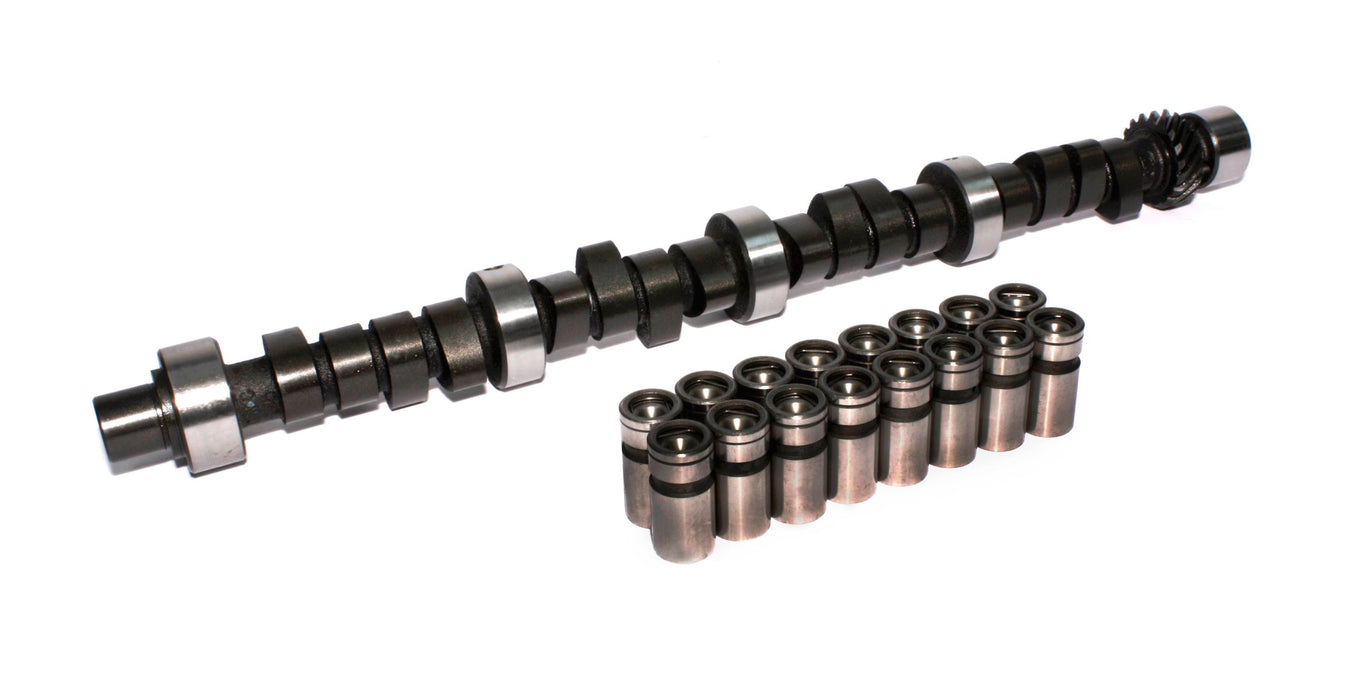

COMP Cams CL20-226-4 Xtreme Energy 250/256 Hydraulic Flat Cam and Lifter Kit for Chrysler 273-360
by COMP Cams
SKU ds_BDQQ_CL20-226-4
Proudly Canadian
Albertan Owned
Supporting Canadian truckers since 2018
Secure Payments
Financing Available
SSL encrypted checkout with financing options
Trusted Brands
Top-Quality Suppliers
Authorized dealer for Fox, Bilstein, BFGoodrich & 50+ brands
Sold out
Original price
$589.69
-
Original price
$589.69
Original price
$589.69
$589.69
$589.69
-
$589.69
Current price
$589.69
Availability:
Out of stock
Description
CL-KIT - Cam and Lifter Kit Includes: Camshaft, Lifters, Assembly Lube, Decals and Instructions.
Resources
Installation InstructionsResources
Installation InstructionsSpecifications
| Advertised Exhaust Duration | 306 |
| Advertised Intake Duration | 294 |
| Amazon ASIN | B000P5BN3S |
| Assembly Lubricant Included | Yes |
| Basic Operating RPM Range | 3,000-7000 |
| C.A.R.B. E.O. Number | N/A |
| C.A.R.B. Exempt for California Certified Vehicles Manufactured Before 1965? | Yes, but must meet tailpipe emission standards for year of vehicle. |
| C.A.R.B. Exempt for Federally Certified Vehicles Manufactured Before 1967? | Yes, but must meet tailpipe emission standards for year of vehicle. |
| C.A.R.B. Exempt for Foreign Vehicles Manufactured Before 1967? | Yes, but must meet tailpipe emission standards for year of vehicle. |
| C.A.R.B. Exempt for On-Road Vehicles? | No |
| C.A.R.B. Exempt for Racing and Off-Road Only Vehicles? | Yes, but must be a race/competition only vehicle. |
| C.A.R.B. Exemption Reason | N/A |
| California Proposition 65 | WARNING: Cancer and Reproductive Harm P65Warnings.ca.gov |
| Cam Type | Hydraulic Flat Tappet |
| Camshaft Gear Attachment | 1-Bolt |
| Camshaft Material | Cast Iron |
| Camshaft Series | Thumpr |
| Description_ASM | Fits Chrysler 273, 318, 340 and 360 LA |
| Description_DEF | Engine Camshaft and Lifter Kit |
| Description_DES | High Energy Hydraulic Flat Lifter Set for Chrysler 273-360 and 383-440 |
| Description_DES | Xtreme Energy 250/256 Hydraulic Flat Cam and Lifter Kit for Chrysler 273-360 |
| Description_DES | Xtreme Energy 250/256 Hydraulic Flat Cam for Chrysler 273-360 |
| Description_EXT | Pro Street/bracket, good intake, headers, gear, 3500+ stall. |
| Description_INV | XE 250/256 Hyd Flat CL-Kit Chrys 273-360 |
| Description_KEY | 273, 360, 318, AMC, Dodge, Mopar, Plymouth, Dart, Road Runner, Charger, Challenger, 383, 400, 440, 426, HEMI, 426 Wedge, 426 HEMI, RB, B, HEMI, 392, Chrysler, LA |
| Description_MKT | CL-KIT - Cam and Lifter Kit Includes: Camshaft, Lifters, Assembly Lube, Decals and Instructions. |
| Description_SHO | Camshaft, Lifter Kt |
| Description_SHP | None |
| Engine Family | Chrysler 273-360 c.i. 8 Cylinder (1964-2002) |
| Exhaust Duration at .050 inch Lift | 256 |
| Exhaust Valve Lift | 0.524 |
| Gaskets Included | No |
| height | 3.0 |
| Intake Duration at .050 Inch Lift | 250 |
| Intake Valve Lift | 0.519 |
| K-Kit Upgrade | K20-226-4 |
| Kit Type | CL-Kit - Cam and Lifter Kit |
| length | 26.0 |
| Lifter Type | Hydraulic Flat Tappet |
| Lifters Included | Yes |
| Lobe Separation | 110 |
| Locks Included | No |
| LTL | N |
| Retainers Included | No |
| SK-Kit Upgrade | SK20-226-4 |
| Timing Chain and Gears Included | No |
| Title | Xtreme Energy 250/256 Hydraulic Flat Cam and Lifter Kit for Chrysler 273-360 |
| Usage | Street/Performance |
| Valve Springs Required | Yes |
| Valve Stem Seals Included | No |
| weight | 14.24 |
| width | 5.5 |
