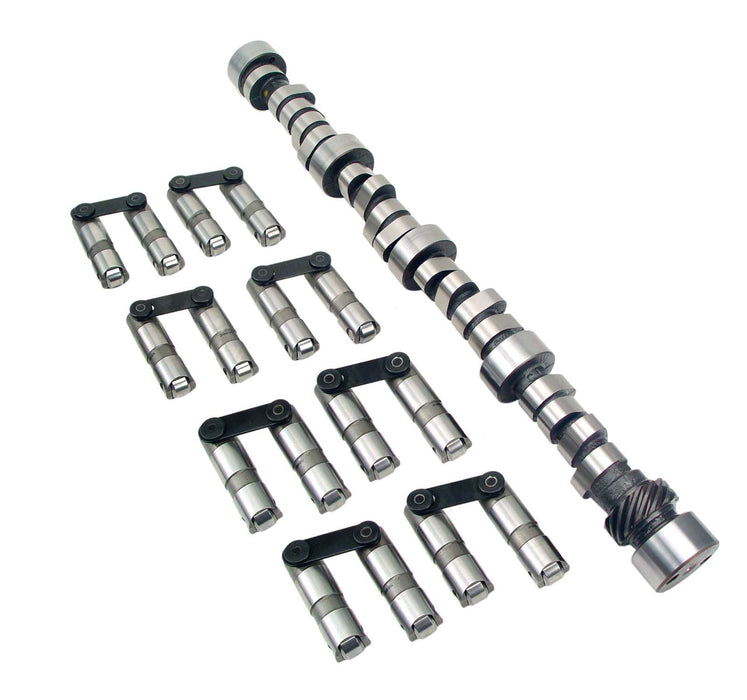

COMP Cams CL12-422-8 Xtreme Energy 218/224 Hydraulic Roller Cam and Lifter Kit Chevrolet Small Block
by COMP Cams
SKU ds_BDQQ_CL12-422-8
Proudly Canadian
Albertan Owned
Supporting Canadian truckers since 2018
Secure Payments
Financing Available
SSL encrypted checkout with financing options
Trusted Brands
Top-Quality Suppliers
Authorized dealer for Fox, Bilstein, BFGoodrich & 50+ brands
Sold out
Original price
$1,663.28
-
Original price
$1,663.28
Original price
$1,663.28
$1,663.28
$1,663.28
-
$1,663.28
Current price
$1,663.28
Availability:
Out of stock
Description
CL-KIT - Cam and Lifter Kit Includes: Camshaft, Lifters, Assembly Lube, Decals and Instructions.
Resources
Installation InstructionsResources
Installation InstructionsSpecifications
| Advertised Exhaust Duration | 276 |
| Advertised Intake Duration | 270 |
| Amazon ASIN | B000P59J0C |
| Assembly Lubricant Included | No |
| Basic Operating RPM Range | 1,600-5,400 |
| C.A.R.B. E.O. Number | N/A |
| C.A.R.B. Exempt for California Certified Vehicles Manufactured Before 1965? | Yes, but must meet tailpipe emission standards for year of vehicle. |
| C.A.R.B. Exempt for Federally Certified Vehicles Manufactured Before 1967? | Yes, but must meet tailpipe emission standards for year of vehicle. |
| C.A.R.B. Exempt for Foreign Vehicles Manufactured Before 1967? | Yes, but must meet tailpipe emission standards for year of vehicle. |
| C.A.R.B. Exempt for On-Road Vehicles? | No |
| C.A.R.B. Exempt for Racing and Off-Road Only Vehicles? | Yes, but must be a race/competition only vehicle. |
| C.A.R.B. Exemption Reason | N/A |
| California Proposition 65 | WARNING: Cancer and Reproductive Harm P65Warnings.ca.gov |
| Cam Type | Hydraulic Roller |
| Camshaft Gear Attachment | 3-Bolt |
| Camshaft Material | Austempered Ductile Iron |
| Camshaft Series | Xtreme Energy |
| Description_ASM | Fits Chevrolet GEN 1 Small Blocks including the 262, 265, 267, 283, 302, 305, 307, 327, 350 and 400. Does not fit LT1/LT4, or factory roller Small Blocks built from 1985 and newer. GM gradually added roller camshafts to 305's and 350's from the mid 80's forward. Camaros/Firebirds/Corvettes received the roller cams early, but many trucks and SUV's had flat tappet cams until the mid 90's. Remove the intake or timing cover to confirm whether the block is a factory roller or flat tappet. Does not fit the LS1, LS2, LS3 or any LS-based 4.8, 5.3, 5.7, 6.0 and 6.2. 1955-1957 Chevrolet 265 engines require a groove on the 5th cam journal for oiling. Contact us for more information. |
| Description_DEF | Engine Camshaft and Lifter Kit |
| Description_DES | Retro-Fit Hydraulic Roller Lifter Set for 265-400 Chevrolet Small Block |
| Description_DES | Xtreme Energy 218/224 Hydraulic Roller Cam and Lifter Kit Chevrolet Small Block |
| Description_DES | Xtreme Energy 218/224 Hydraulic Roller Cam for Chevrolet Small Block |
| Description_EXT | High performance application, largest with stock converter, noticeable idle. |
| Description_INV | XE 218/224 Hyd Roller CL-Kit SBC |
| Description_KEY | 265, 283, 307, 302, 305, 327, 350, 383, 400, 427, L46, L48, L65, LM1, LT-1, L82, L81, LS9, L83, L98, L05, LG3, LG4, LT1, LT4, Camaro, Corvette, Chevelle, Stingray, Silverado, C10, Firebird, Chevrolet, Chevy, Small Block Chevy, Caprice, Malibu, Impala, Nova, 355, GEN1, Monte Carlo, S10 |
| Description_MKT | CL-KIT - Cam and Lifter Kit Includes: Camshaft, Lifters, Assembly Lube, Decals and Instructions. |
| Description_SHO | Camshaft, Lifter Kt |
| Description_SHP | None |
| Engine Family | Chevrolet 262-400 c.i. 8 Cylinder (1958-1998) |
| Exhaust Duration at .050 inch Lift | 224 |
| Exhaust Valve Lift | 0.502 |
| Gaskets Included | No |
| height | 3.6 |
| Intake Duration at .050 Inch Lift | 218 |
| Intake Valve Lift | 0.495 |
| Kit Type | CL-Kit - Cam and Lifter Kit |
| length | 25.4 |
| Lifter Type | Hydraulic Roller |
| Lifters Included | Yes |
| Lobe Separation | 110 |
| Locks Included | No |
| Retainers Included | No |
| Timing Chain and Gears Included | No |
| Title | Xtreme Energy 218/224 Hydraulic Roller Cam and Lifter Kit Chevrolet Small Block |
| Usage | Street/Performance |
| Valve Springs Required | Yes |
| Valve Stem Seals Included | No |
| weight | 14.639 |
| width | 6.0 |
