COMP Cams CL11-236-4 Xtreme Marine 226/236 Hydraulic Flat Cam/Lifter Kit Chevrolet Big Block 396-454
by COMP Cams
SKU ds_BDQQ_CL11-236-4
Proudly Canadian
Albertan Owned
Supporting Canadian truckers since 2018
Secure Payments
Financing Available
SSL encrypted checkout with financing options
Trusted Brands
Top-Quality Suppliers
Authorized dealer for Fox, Bilstein, BFGoodrich & 50+ brands
Sold out
Original price
$596.71
-
Original price
$596.71
Original price
$596.71
$596.71
$596.71
-
$596.71
Current price
$596.71
Availability:
Out of stock
Description

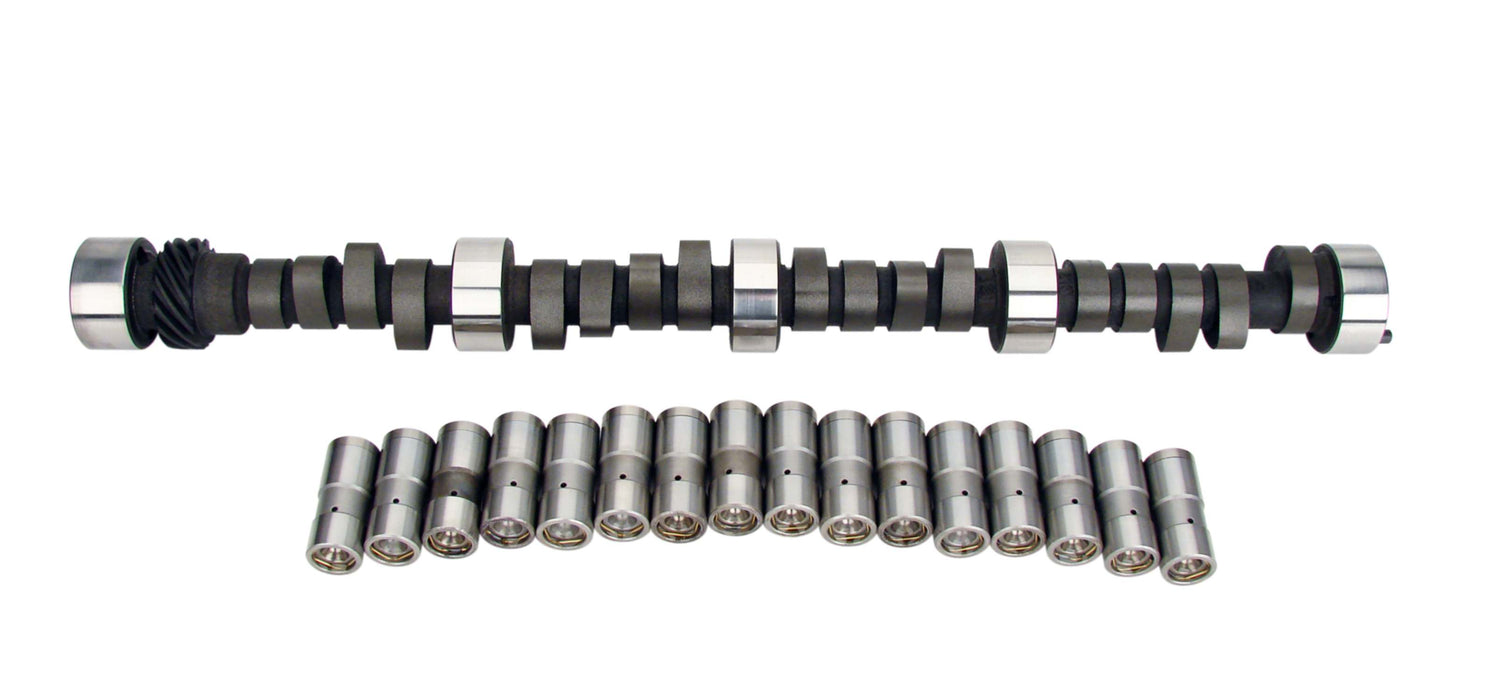

CL-KIT - Cam and Lifter Kit Includes: Camshaft, Lifters, Assembly Lube, Decals and Instructions.
Resources
Installation InstructionsSpecifications
| Advertised Exhaust Duration | 286 |
| Advertised Intake Duration | 270 |
| Amazon ASIN | B001GERGC4 |
| Assembly Lubricant Included | Yes |
| Basic Operating RPM Range | 1,600-5,800 |
| C.A.R.B. E.O. Number | N/A |
| C.A.R.B. Exempt for California Certified Vehicles Manufactured Before 1965? | Yes, but must meet tailpipe emission standards for year of vehicle. |
| C.A.R.B. Exempt for Federally Certified Vehicles Manufactured Before 1967? | Yes, but must meet tailpipe emission standards for year of vehicle. |
| C.A.R.B. Exempt for Foreign Vehicles Manufactured Before 1967? | Yes, but must meet tailpipe emission standards for year of vehicle. |
| C.A.R.B. Exempt for On-Road Vehicles? | No |
| C.A.R.B. Exempt for Racing and Off-Road Only Vehicles? | Yes, but must be a race/competition only vehicle. |
| C.A.R.B. Exemption Reason | N/A |
| California Proposition 65 | WARNING: Cancer and Reproductive Harm P65Warnings.ca.gov |
| Cam Type | Hydraulic Flat Tappet |
| Camshaft Gear Attachment | 3-Bolt |
| Camshaft Material | Cast Iron |
| Camshaft Series | Xtreme Marine |
| Description_ASM | Chevrolet GEN IV 396-454 Big Block Engines Originally Equipped with Flat Tappet Camshafts |
| Description_DEF | Engine Camshaft and Lifter Kit |
| Description_DES | High Energy Hydraulic Flat Lifter Set for Chevrolet Small and Big Block. |
| Description_DES | Xtreme Marine 226/236 Hydraulic Flat Cam for Chevrolet Big Block 396-454 |
| Description_DES | Xtreme Marine 226/236 Hydraulic Flat Cam/Lifter Kit Chevrolet Big Block 396-454 |
| Description_EXT | Jet w/ A impeller, strong mid- range, good throttle response, noticeable idle. |
| Description_INV | Marine 226/236 H-Flat CL-Kit BBC 396-454 |
| Description_KEY | Chevelle, Camaro, Corvette, Stingray, Silverado, C10, Firebird, Chevrolet, Big Block, Chevy, BBC, 454, 427, 502, 396, Caprice, Malibu, Impala, Nova, Monte Carlo, S10, 572 |
| Description_MKT | CL-KIT - Cam and Lifter Kit Includes: Camshaft, Lifters, Assembly Lube, Decals and Instructions. |
| Description_SHO | Camshaft, Lifter Kt |
| Description_SHP | None |
| Engine Family | Chevrolet 396-454 c.i. 8 Cylinder (1967-1996) |
| Exhaust Duration at .050 inch Lift | 236 |
| Exhaust Valve Lift | 0.547 |
| Gaskets Included | No |
| height | 3.0 |
| Intake Duration at .050 Inch Lift | 226 |
| Intake Valve Lift | 0.544 |
| Kit Type | CL-Kit - Cam and Lifter Kit |
| length | 26.0 |
| Lifter Type | Hydraulic Flat Tappet |
| Lifters Included | Yes |
| Lobe Separation | 112 |
| Locks Included | No |
| LTL | N |
| Retainers Included | No |
| Timing Chain and Gears Included | No |
| Title | Xtreme Marine 226/236 Hydraulic Flat Cam/Lifter Kit Chevrolet Big Block 396-454 |
| Usage | Marine |
| Valve Springs Required | Yes |
| Valve Stem Seals Included | No |
| weight | 14.22 |
| width | 5.5 |
