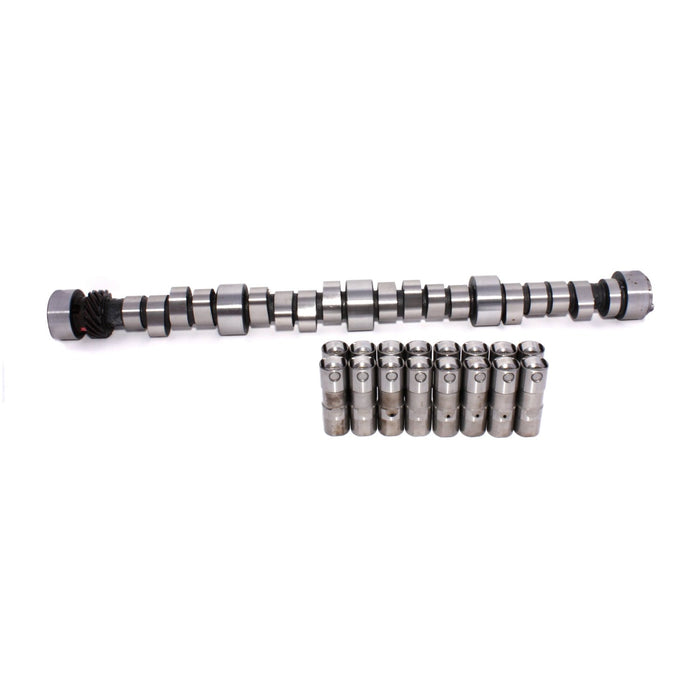

COMP Cams CL01-775-8 XE Comp Control 224/232 Hydraulic Roller Cam/Lifter Kit Chevy Big Block GEN VI
by COMP Cams
SKU ds_BDQQ_CL01-775-8
Proudly Canadian
Albertan Owned
Supporting Canadian truckers since 2018
Secure Payments
Financing Available
SSL encrypted checkout with financing options
Trusted Brands
Top-Quality Suppliers
Authorized dealer for Fox, Bilstein, BFGoodrich & 50+ brands
Sold out
Original price
$1,183.73
-
Original price
$1,183.73
Original price
$1,183.73
$1,183.73
$1,183.73
-
$1,183.73
Current price
$1,183.73
Availability:
Out of stock
Description
Works well with ported heads, serious valve train upgrade required, needs 2200+ stall and programmer.
Resources
Installation InstructionsResources
Installation InstructionsSpecifications
| Advertised Exhaust Duration | 279 |
| Advertised Intake Duration | 271 |
| Amazon ASIN | B0046ZL44Q |
| Assembly Lubricant Included | No |
| Basic Operating RPM Range | 1,800-6,000 |
| C.A.R.B. E.O. Number | N/A |
| C.A.R.B. Exempt for California Certified Vehicles Manufactured Before 1965? | Yes, but must meet tailpipe emission standards for year of vehicle. |
| C.A.R.B. Exempt for Federally Certified Vehicles Manufactured Before 1967? | Yes, but must meet tailpipe emission standards for year of vehicle. |
| C.A.R.B. Exempt for Foreign Vehicles Manufactured Before 1967? | Yes, but must meet tailpipe emission standards for year of vehicle. |
| C.A.R.B. Exempt for On-Road Vehicles? | No |
| C.A.R.B. Exempt for Racing and Off-Road Only Vehicles? | Yes, but must be a race/competition only vehicle. |
| C.A.R.B. Exemption Reason | N/A |
| California Proposition 65 | WARNING: Cancer and Reproductive Harm P65Warnings.ca.gov |
| Cam Type | Hydraulic Roller |
| Camshaft Gear Attachment | 3-Bolt |
| Camshaft Material | Austempered Ductile Iron |
| Camshaft Series | Xtreme Energy Computer Controlled |
| Description_ASM | 1996-1999 Chevrolet 454/502 GEN VI Big Block |
| Description_DEF | Engine Camshaft and Lifter Kit |
| Description_DES | OE-Style Hydraulic Roller Lifter for '96+ Chevrolet GEN VI Big Block and 8.1L |
| Description_DES | XE Comp Control 224/232 Hydraulic Roller Cam/Lifter Kit Chevy Big Block GEN VI |
| Description_DES | XE Computer Controlled 224/232 Hydraulic Roller Cam Chevrolet Big Block GEN VI |
| Description_EXT | Works well with ported heads, serious valve train upgrade required, needs 2200+ stall and programmer. |
| Description_INV | XE CCtrl 224/232 H-Rlr CL-Kit BBC GEN VI |
| Description_KEY | Chevelle, Camaro, Corvette, Stingray, Silverado, C10, Firebird, Chevrolet, Big Block, Chevy, BBC, 454, 427, 502, 396, Caprice, Malibu, Impala, Nova, Monte Carlo, S10, 572 |
| Description_MKT | CL-KIT - Cam and Lifter Kit Includes: Camshaft, Lifters, Assembly Lube, Decals and Instructions. |
| Description_SHO | Camshaft, Lifter Kt |
| Description_SHP | None |
| Engine Family | Chevrolet GEN VI 454 and 502 c.i. 8 Cylinder (1996-1999) |
| Exhaust Duration at .050 inch Lift | 232 |
| Exhaust Valve Lift | 0.601 |
| Gaskets Included | No |
| height | 3.0 |
| Intake Duration at .050 Inch Lift | 224 |
| Intake Valve Lift | 0.591 |
| Kit Type | CL-Kit - Cam and Lifter Kit |
| length | 26.0 |
| Lifter Type | Hydraulic Roller |
| Lifters Included | Yes |
| Lobe Separation | 112 |
| Locks Included | No |
| LTL | N |
| Retainers Included | No |
| Timing Chain and Gears Included | No |
| Title | XE Comp Control 224/232 Hydraulic Roller Cam/Lifter Kit Chevy Big Block GEN VI |
| Usage | Street/Performance |
| Valve Springs Required | Yes |
| Valve Stem Seals Included | No |
| weight | 14.5 |
| width | 6.5 |
