COMP Cams CK54-330-11 Stage 1 LST Camshaft Kit for LS 4.8/5.3L Turbo Engines
by COMP Cams
SKU ds_BDQQ_CK54-330-11
Proudly Canadian
Albertan Owned
Supporting Canadian truckers since 2018
Secure Payments
Financing Available
SSL encrypted checkout with financing options
Trusted Brands
Top-Quality Suppliers
Authorized dealer for Fox, Bilstein, BFGoodrich & 50+ brands
Sold out
Original price
$2,042.60
-
Original price
$2,042.60
Original price
$2,042.60
$2,042.60
$2,042.60
-
$2,042.60
Current price
$2,042.60
Availability:
Out of stock
Description

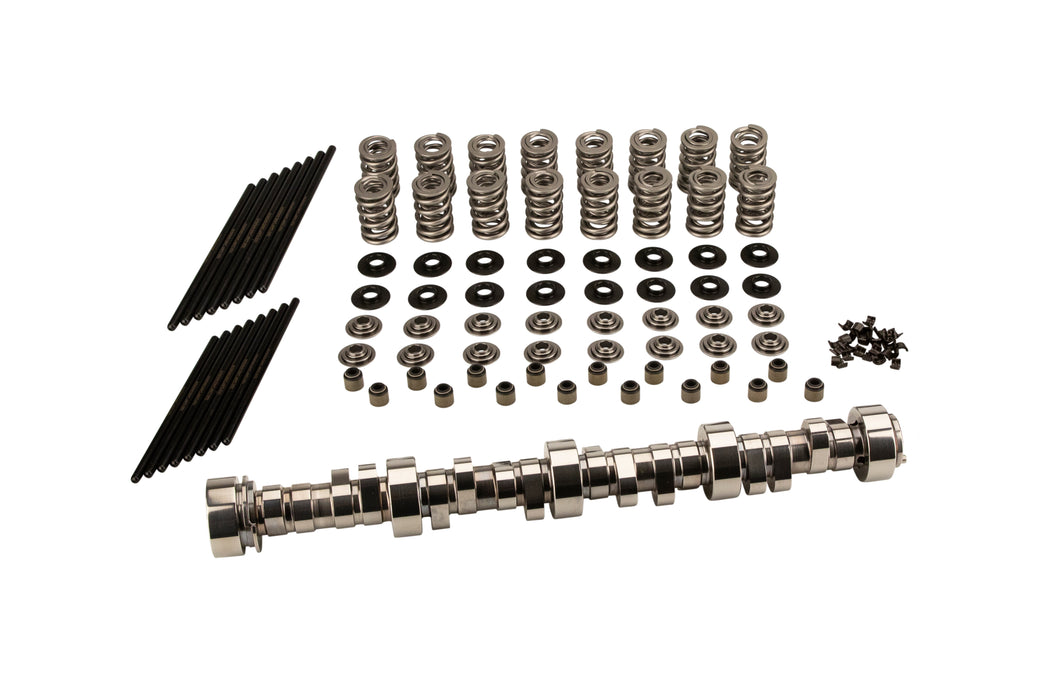

The Stage 1 LST Cam Kit for LS 4.8 and 5.3L turbo engines is the perfect choice for "cam only" turbo builds with unknown back pressure. Kit includes pushrods, dual springs, retainers, locks, spring seats and valve seals.
Resources
Installation InstructionsResources
Installation InstructionsSpecifications
| Advertised Exhaust Duration | 280 |
| Advertised Intake Duration | 278 |
| Amazon ASIN | B07M7L1H55 |
| Assembly Lubricant Included | No |
| Basic Operating RPM Range | 2,300-7,400 |
| C.A.R.B. E.O. Number | N/A |
| C.A.R.B. Exempt for California Certified Vehicles Manufactured Before 1965? | Yes, but must meet tailpipe emission standards for year of vehicle. |
| C.A.R.B. Exempt for Federally Certified Vehicles Manufactured Before 1967? | Yes, but must meet tailpipe emission standards for year of vehicle. |
| C.A.R.B. Exempt for Foreign Vehicles Manufactured Before 1967? | Yes, but must meet tailpipe emission standards for year of vehicle. |
| C.A.R.B. Exempt for On-Road Vehicles? | No |
| C.A.R.B. Exempt for Racing and Off-Road Only Vehicles? | Yes, but must be a race/competition only vehicle. |
| C.A.R.B. Exemption Reason | N/A |
| California Proposition 65 | WARNING: Cancer and Reproductive Harm P65Warnings.ca.gov |
| Cam Type | Hydraulic Roller |
| Camshaft Gear Attachment | 3-Bolt |
| Camshaft Material | Billet Steel |
| Camshaft Series | Low Shock Technology |
| Description_ASC | See CK54-332-11 for 4.8/5.3L Turbo Stage 2 Cam Kit. |
| Description_ASC | See MK54-330-24 for 4.8/5.3L Turbo Stage 1 Master Kit with 1 pole reluctor, 24x design timing set. |
| Description_ASC | See MK54-330-58 for 4.8/5.3L Turbo Stage 1 Master Kit with 4 pole reluctor, 58x design timing set. |
| Description_ASM | Buick: Allure 08 - 09 5.3 L Engine, Buick: LaCrosse 08 - 09 5.3 L Engine, Buick: Rainier 04 - 07 5.3 L Engine, Cadillac: Escalade 02 - 05 5.3 L Engine, Chevrolet: Avalanche 07 - 13 5.3 L Engine, Chevrolet: Avalanche 1500 02 - 06 5.3 L Engine, Chevrolet: Cheyenne 07 - 16 5.3 L Engine, Chevrolet: Colorado 09 - 12 5.3 L Engine, Chevrolet: Express 1500 03 - 14 5.3 L Engine, Chevrolet: Express 2500 10 - 17 4.8 L Engine, Chevrolet: Express 2500 03 - 05 5.3 L Engine, Chevrolet: Express 3500 10 - 17 4.8 L Engine, Chevrolet: Express 3500 03 - 05 5.3 L Engine, Chevrolet: Express Pasajeros 10 - 15 5.3 L Engine, Chevrolet: Impala 06 - 09 5.3 L Engine, Chevrolet: Monte Carlo 06 - 07 5.3 L Engine, Chevrolet: SSR 03 - 04 5.3 L Engine, Chevrolet: Silverado 1500 10 - 13 4.8 L Engine, Chevrolet: Silverado 1500 99 - 13 5.3 L Engine, Chevrolet: Silverado 1500 Classic 07 - 07 5.3 L Engine, Chevrolet: Silverado 2500 99 - 16 5.3 L Engine, Chevrolet: Suburban 14 - 16 5.3 L Engine, Chevrolet: Suburban 1500 00 - 14 5.3 L Engine, Chevrolet: Tahoe 00 - 14 5.3 L Engine, Chevrolet: Trailblazer 06 - 08 5.3 L Engine, Chevrolet: Trailblazer EXT 03 - 06 5.3 L Engine, GMC: Canyon 09 - 12 5.3 L Engine, GMC: Envoy 05 - 09 5.3 L Engine, GMC: Envoy XL 03 - 06 5.3 L Engine, GMC: Envoy XUV 04 - 05 5.3 L Engine, GMC: Savana 1500 03 - 14 5.3 L Engine, GMC: Savana 2500 10 - 17 4.8 L Engine, GMC: Savana 2500 03 - 05 5.3 L Engine, GMC: Savana 3500 10 - 17 4.8 L Engine, GMC: Sierra 11 - 16 5.3 L Engine, GMC: Sierra 1500 10 - 13 4.8 L Engine, GMC: Sierra 1500 99 - 13 5.3 L Engine, GMC: Sierra 1500 Classic 07 - 07 5.3 L Engine, GMC: Sierra 2500 99 - 00 5.3 L Engine, GMC: Yukon 00 - 14 5.3 L Engine, GMC: Yukon XL 1500 00 - 14 5.3 L Engine, Hummer: H3 08 - 10 5.3 L Engine, Hummer: H3T 09 - 10 5.3 L Engine, Isuzu: Ascender 03 - 06 5.3 L Engine, Pontiac: Grand Prix 05 - 08 5.3 L Engine, Saab: 9-7x 05 - 09 5.3 L Engine |
| Description_DEF | Engine Camshaft Kit |
| Description_DES | 7 Tool Steel Retainer Set of 16, 8mm Valve w/ 26926 Springs |
| Description_DES | ID Spring Locator Set of 16 - 1.300" OD, .520" ID, .060" Thickness |
| Description_DES | Machined Steel Set of 16 - 7 Degree, 8mm, Single Groove Race Locks |
| Description_DES | Magnum 7.450" Long, .080" Wall, 5/16" Diameter Pushrod Set |
| Description_DES | Race Sportsman 1.320" OD Dual Springs; 1.835" Installed Height; 16 Springs |
| Description_DES | Set of 16 Steel Viton Valve Seals for .500" Guide Size, 8mm Valve Stem |
| Description_DES | Stage 1 LST Camshaft for LS 4.8/5.3L Turbo Engines |
| Description_DES | Stage 1 LST Camshaft Kit for LS 4.8/5.3L Turbo Engines |
| Description_EXT | The Stage 1 LST Cam Kit for LS 4.8 and 5.3L turbo engines is the perfect choice for "cam only" turbo builds with unknown back pressure. Kit includes pushrods, dual springs, retainers, locks, spring seats and valve seals. |
| Description_INV | Stage 1 CK GM LS 4.8/5.3L Turbo Engines |
| Description_KEY | GM, 4.8, 5.3, 5.7, 6.0, 6.2, 7.0, LS1, LS2, LS3, LS4, LS6, LS7, LSA, LS9, Camaro, Silverado, LS Swap, 383, 350, SBC, Chevelle, Yukon, L92, LM7, 325, GMC, Trailblazer, Corvette, GM LS, GEN III, GEN 3, GEN IV, GEN 4, DOD, AFM, VVT, BTR, Texas Speed |
| Description_SHO | CKSTg14.85.3Turbo |
| Description_SHP | None |
| Description_SLA | Stage 1 LST Cam Kit for 4.8 and 5.3 Turbo engines |
| Engine Family | GM LS GEN III/IV 3-Bolt 8 Cylinder (1997-2015) |
| Exhaust Duration at .050 inch Lift | 225 |
| Exhaust Valve Lift | 0.6 |
| Grind Number | 278HLO15 |
| height | 5.5 |
| Intake Duration at .050 Inch Lift | 223 |
| Intake Valve Lift | 0.598 |
| length | 26.0 |
| Lifter Type | Hydraulic Roller |
| Lifters Included | No |
| Lobe Separation | 115 |
| LTL | N |
| Recommended Upgraded Stock Rocker Arms | 1477-16 |
| Stage | 1 |
| Title | Stage 1 LST Camshaft Kit for LS 4.8/5.3L Turbo Engines |
| Usage | Street / Performance, Street/Strip |
| Valve Springs Required | Yes |
| weight | 18.75 |
| width | 10.5 |
