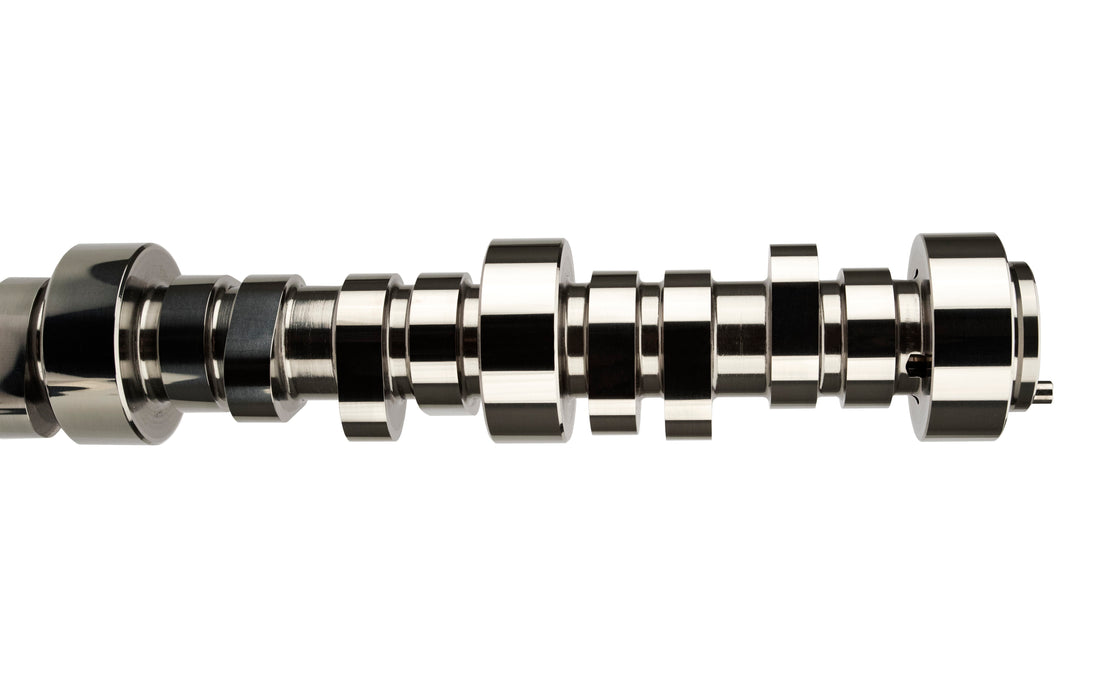

COMP Cams CK54-315-11 Stage 1 LST Max HP Solid Roller Cam Kit for 3-Bolt LS w/ Aftermarket Pistons
by COMP Cams
SKU ds_BDQQ_CK54-315-11
Proudly Canadian
Albertan Owned
Supporting Canadian truckers since 2018
Secure Payments
Financing Available
SSL encrypted checkout with financing options
Trusted Brands
Top-Quality Suppliers
Authorized dealer for Fox, Bilstein, BFGoodrich & 50+ brands
Sold out
Original price
$2,236.48
-
Original price
$2,236.48
Original price
$2,236.48
$2,236.48
$2,236.48
-
$2,236.48
Current price
$2,236.48
Availability:
Out of stock
Description

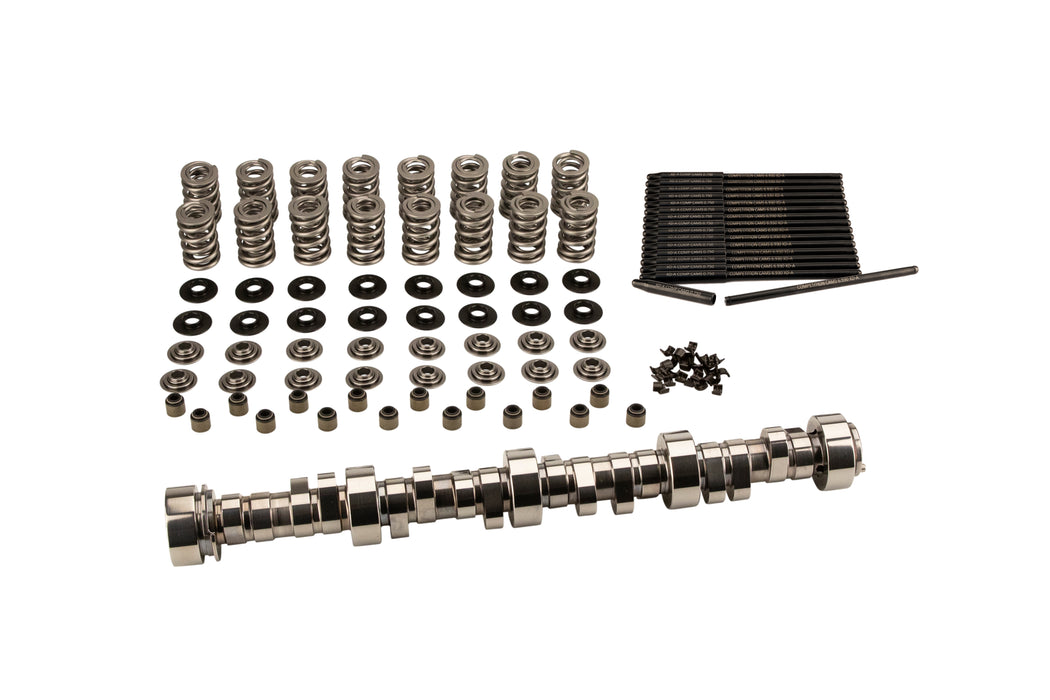

The Stage 1 Max Horsepower Solid Roller LS Cam Kit offers excellent torque and HP for serious street and road race applications. Includes XD-A pushrods, springs, retainers, locks, spring seats and seals.
Resources
Installation InstructionsResources
Installation InstructionsSpecifications
| Advertised Exhaust Duration | 300 |
| Advertised Intake Duration | 290 |
| Amazon ASIN | B07MQBDLWH |
| Assembly Lubricant Included | No |
| Basic Operating RPM Range | 3,400-7,500 |
| C.A.R.B. E.O. Number | N/A |
| C.A.R.B. Exempt for California Certified Vehicles Manufactured Before 1965? | Yes, but must meet tailpipe emission standards for year of vehicle. |
| C.A.R.B. Exempt for Federally Certified Vehicles Manufactured Before 1967? | Yes, but must meet tailpipe emission standards for year of vehicle. |
| C.A.R.B. Exempt for Foreign Vehicles Manufactured Before 1967? | Yes, but must meet tailpipe emission standards for year of vehicle. |
| C.A.R.B. Exempt for On-Road Vehicles? | No |
| C.A.R.B. Exempt for Racing and Off-Road Only Vehicles? | Yes, but must be a race/competition only vehicle. |
| C.A.R.B. Exemption Reason | N/A |
| California Proposition 65 | WARNING: Cancer and Reproductive Harm P65Warnings.ca.gov |
| Cam Type | Solid Roller |
| Camshaft Gear Attachment | 3-Bolt |
| Camshaft Material | Billet Steel |
| Camshaft Series | Low Shock Technology |
| Description_ASC | See CK54-311-11 for Stage 1 Cam Kit that is designed for stock piston applications. |
| Description_ASM | Buick: Allure 08 - 09 5.3 L Engine, Buick: LaCrosse 08 - 09 5.3 L Engine, Buick: Rainier 04 - 07 5.3 L Engine, Cadillac: CTS 09 - 15 6.2 L Engine, Cadillac: Escalade 02 - 05 5.3 L Engine, Cadillac: Escalade 09 - 13 6 L Engine, Cadillac: Escalade 07 - 16 6.2 L Engine, Cadillac: Escalade ESV 07 - 15 6.2 L Engine, Cadillac: Escalade EXT 07 - 13 6.2 L Engine, Chevrolet: Avalanche 07 - 13 5.3 L Engine, Chevrolet: Avalanche 07 - 09 6 L Engine, Chevrolet: Avalanche 1500 02 - 06 5.3 L Engine, Chevrolet: Camaro 10 - 15 6.2 L Engine, Chevrolet: Camaro 14 - 15 7 L Engine, Chevrolet: Caprice 11 - 17 6 L Engine, Chevrolet: Cheyenne 07 - 16 5.3 L Engine, Chevrolet: Colorado 09 - 12 5.3 L Engine, Chevrolet: Corvette 05 - 07 6 L Engine, Chevrolet: Corvette 08 - 13 6.2 L Engine, Chevrolet: Corvette 06 - 13 7 L Engine, Chevrolet: Express 1500 03 - 14 5.3 L Engine, Chevrolet: Express 2500 10 - 17 4.8 L Engine, Chevrolet: Express 2500 03 - 05 5.3 L Engine, Chevrolet: Express 2500 10 - 19 6 L Engine, Chevrolet: Express 3500 10 - 17 4.8 L Engine, Chevrolet: Express 3500 03 - 05 5.3 L Engine, Chevrolet: Express 3500 10 - 19 6 L Engine, Chevrolet: Express Cargo 10 - 17 6 L Engine, Chevrolet: Express Pasajeros 10 - 15 5.3 L Engine, Chevrolet: Express Pasajeros 10 - 18 6 L Engine, Chevrolet: Impala 06 - 09 5.3 L Engine, Chevrolet: LCF 3500 16 - 17 6 L Engine, Chevrolet: Monte Carlo 06 - 07 5.3 L Engine, Chevrolet: SS 14 - 17 6.2 L Engine, Chevrolet: SSR 03 - 04 5.3 L Engine, Chevrolet: Silverado 1500 10 - 13 4.8 L Engine, Chevrolet: Silverado 1500 99 - 13 5.3 L Engine, Chevrolet: Silverado 1500 07 - 13 6 L Engine, Chevrolet: Silverado 1500 09 - 13 6.2 L Engine, Chevrolet: Silverado 1500 Classic 07 - 07 5.3 L Engine, Chevrolet: Silverado 2500 99 - 16 5.3 L Engine, Chevrolet: Silverado 2500 HD 10 - 19 6 L Engine, Chevrolet: Silverado 3500 08 - 18 6 L Engine, Chevrolet: Silverado 3500 HD 10 - 19 6 L Engine, Chevrolet: Suburban 14 - 16 5.3 L Engine, Chevrolet: Suburban 16 - 18 6 L Engi... |
| Description_DEF | Engine Camshaft Kit |
| Description_DES | 7 Tool Steel Retainer Set of 16, 8mm Valve w/ 26926 Springs |
| Description_DES | ID Spring Locator Set of 16 - 1.300" OD, .520" ID, .060" Thickness |
| Description_DES | Machined Steel Set of 16 - 7 Degree, 8mm, Single Groove Race Locks |
| Description_DES | Race Sportsman 1.320" OD Dual Springs; 1.835" Installed Height; 16 Springs |
| Description_DES | Set of 16 Steel Viton Valve Seals for .500" Guide Size, 8mm Valve Stem |
| Description_DES | Stage 1 LST Max HP Solid Roller Cam for 3-Bolt LS w/ Aftermarket Pistons |
| Description_DES | Stage 1 LST Max HP Solid Roller Cam Kit for 3-Bolt LS w/ Aftermarket Pistons |
| Description_DES | XD-A Adjustable Pushrod Kit (7.740 7.972) |
| Description_EXT | The Stage 1 Max Horsepower Solid Roller LS Cam Kit offers excellent torque and HP for serious street and road race applications. Includes XD-A pushrods, springs, retainers, locks, spring seats and seals. |
| Description_INV | Stg1 LST Max HP CK LS Aftmkt Pistons |
| Description_KEY | GM, 4.8, 5.3, 5.7, 6.0, 6.2, 7.0, LS1, LS2, LS3, LS4, LS6, LS7, LSA, LS9, Camaro, Silverado, LS Swap, 383, 350, SBC, Chevelle, Yukon, L92, LM7, 325, GMC, Trailblazer, Corvette, GM LS, GEN III, GEN 3, GEN IV, GEN 4, DOD, AFM, VVT, BTR, Texas Speed |
| Description_SHO | Stg1LSTHPSldRlr3Bolt |
| Description_SHP | None |
| Description_SLA | Stage 1 LST Cam Kit for 3-Bolt GM LS w/ Aftermarket Pistons |
| Engine Family | GM LS GEN III/IV 3-Bolt 8 Cylinder (1997-2015) |
| Estimated Horsepower Gain with Kit | 98 |
| Exhaust Duration at .050 inch Lift | 260 |
| Exhaust Valve Lift | 0.668 |
| Gaskets Included | No |
| Grind Number | 290LGW11 |
| height | 5.5 |
| Intake Duration at .050 Inch Lift | 250 |
| Intake Valve Lift | 0.672 |
| Kit Type | CK-Kit |
| length | 26.0 |
| Lifter Type | Solid Roller |
| Lifters Included | No |
| Lobe Separation | 111 |
| Locks Included | Yes |
| LTL | N |
| Pushrods Included | Yes |
| Recommended Upgraded Stock Rocker Arms | 1477-16 (LS1), 1478-16 (LS3), 1479-16 (LS7) |
| Retainers Included | Yes |
| Stage | 1 |
| Timing Set Included | No |
| Title | Stage 1 LST Max HP Solid Roller Cam Kit for 3-Bolt LS w/ Aftermarket Pistons |
| Usage | Street/Strip, Drag Race, Road Race |
| Valve Seals Included | Yes |
| Valve Spring Seats Included | Yes |
| Valve Springs Included | Yes |
| weight | 18.75 |
| width | 10.5 |
