COMP Cams CK54-307-11 Stage 2 LST Cam Kit for Manual LS3 Corvette/Camaro w/ Aftermarket Pistons
by COMP Cams
SKU ds_BDQQ_CK54-307-11
Proudly Canadian
Albertan Owned
Supporting Canadian truckers since 2018
Secure Payments
Financing Available
SSL encrypted checkout with financing options
Trusted Brands
Top-Quality Suppliers
Authorized dealer for Fox, Bilstein, BFGoodrich & 50+ brands
Sold out
Original price
$1,891.52
-
Original price
$1,891.52
Original price
$1,891.52
$1,891.52
$1,891.52
-
$1,891.52
Current price
$1,891.52
Availability:
Out of stock
Description

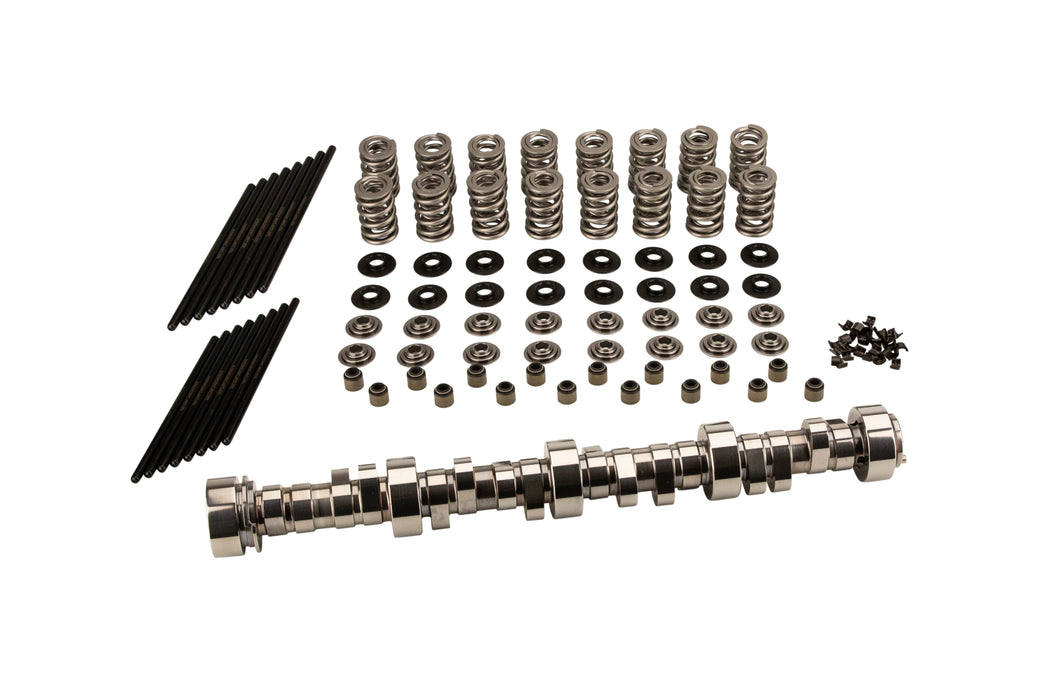

The Stage 2 LST Cam Kit for Manual LS3 Camaro and Corvette is the answer for those who want maximum power from an aftermarket piston LS3. Kit includes pushrods, springs, retainers, locks, spring seats and seals.
Resources
Installation InstructionsResources
Installation InstructionsSpecifications
| Advertised Exhaust Duration | 315 |
| Advertised Intake Duration | 306 |
| Amazon ASIN | B07MJH8YFQ |
| Assembly Lubricant Included | No |
| Basic Operating RPM Range | 3,500-7,500 |
| C.A.R.B. E.O. Number | N/A |
| C.A.R.B. Exempt for California Certified Vehicles Manufactured Before 1965? | Yes, but must meet tailpipe emission standards for year of vehicle. |
| C.A.R.B. Exempt for Federally Certified Vehicles Manufactured Before 1967? | Yes, but must meet tailpipe emission standards for year of vehicle. |
| C.A.R.B. Exempt for Foreign Vehicles Manufactured Before 1967? | Yes, but must meet tailpipe emission standards for year of vehicle. |
| C.A.R.B. Exempt for On-Road Vehicles? | No |
| C.A.R.B. Exempt for Racing and Off-Road Only Vehicles? | Yes, but must be a race/competition only vehicle. |
| C.A.R.B. Exemption Reason | N/A |
| California Proposition 65 | WARNING: Cancer and Reproductive Harm P65Warnings.ca.gov |
| Cam Type | Hydraulic Roller |
| Camshaft Gear Attachment | 3-Bolt |
| Camshaft Material | Billet Steel |
| Camshaft Series | Low Shock Technology |
| Description_ASC | SeeCK54-303-11 for Stage 2 Cam Kit that is designed for stock piston applications. |
| Description_ASM | Chevrolet: Camaro 10 - 16 6.2 L Engine, Chevrolet: Corvette 08 - 13 6.2 L Engine, Chevrolet: SS 14 - 16 6.2 L Engine |
| Description_DEF | Engine Camshaft Kit |
| Description_DES | 7 Tool Steel Retainer Set of 16, 8mm Valve w/ 26926 Springs |
| Description_DES | ID Spring Locator Set of 16 - 1.300" OD, .520" ID, .060" Thickness |
| Description_DES | Machined Steel Set of 16 - 7 Degree, 8mm, Single Groove Race Locks |
| Description_DES | Magnum 7.450" Long, .080" Wall, 5/16" Diameter Pushrod Set |
| Description_DES | Race Sportsman 1.320" OD Dual Springs; 1.835" Installed Height; 16 Springs |
| Description_DES | Set of 16 Steel Viton Valve Seals for .500" Guide Size, 8mm Valve Stem |
| Description_DES | Stage 2 LST Cam for Manual LS3 Corvette/Camaro w/ Aftermarket Pistons |
| Description_DES | Stage 2 LST Cam Kit for Manual LS3 Corvette/Camaro w/ Aftermarket Pistons |
| Description_EXT | The Stage 2 LST Cam Kit for Manual LS3 Camaro and Corvette is the answer for those who want maximum power from an aftermarket piston LS3. Kit includes pushrods, springs, retainers, locks, spring seats and seals. |
| Description_INV | Stg2 LSTCK LS3 Vette/Cmro Aftmkt Pistons |
| Description_KEY | GM, 4.8, 5.3, 5.7, 6.0, 6.2, 7.0, LS1, LS2, LS3, LS4, LS6, LS7, LSA, LS9, Camaro, Silverado, LS Swap, 383, 350, SBC, Chevelle, Yukon, L92, LM7, 325, GMC, Trailblazer, Corvette, GM LS, GEN III, GEN 3, GEN IV, GEN 4, DOD, AFM, VVT, BTR, Texas Speed |
| Description_SHO | Stg2LSTLS3Aftmkt |
| Description_SHP | None |
| Description_SLA | Stage 2 LST Cam Kit for Manual Transmission LS3 Corvette/Camaro w/ aftermarket pistons |
| Engine Family | GM LS GEN III/IV 3-Bolt 8 Cylinder (1997-2015) |
| Exhaust Duration at .050 inch Lift | 266 |
| Exhaust Valve Lift | 0.655 |
| Gaskets Included | No |
| Grind Number | 306LMH13 |
| height | 5.5 |
| Intake Duration at .050 Inch Lift | 251 |
| Intake Valve Lift | 0.663 |
| Kit Type | CK-Kit |
| length | 26.0 |
| Lifter Type | Hydraulic Roller |
| Lifters Included | No |
| Lobe Separation | 113 |
| Locks Included | Yes |
| LTL | N |
| Pushrods Included | Yes |
| Recommended Upgraded Stock Rocker Arms | 1478-16 |
| Retainers Included | Yes |
| Stage | 2 |
| Timing Set Included | No |
| Title | Stage 2 LST Cam Kit for Manual LS3 Corvette/Camaro w/ Aftermarket Pistons |
| Usage | Drag Race |
| Valve Seals Included | Yes |
| Valve Spring Seats Included | Yes |
| Valve Springs Included | Yes |
| weight | 18.75 |
| width | 10.5 |
