COMP Cams CK54-305-11 Stage 1 LST Cam Kit for Manual LS3 Corvette/Camaro w/ Aftermarket Pistons
by COMP Cams
SKU ds_BDQQ_CK54-305-11
Proudly Canadian
Albertan Owned
Supporting Canadian truckers since 2018
Secure Payments
Financing Available
SSL encrypted checkout with financing options
Trusted Brands
Top-Quality Suppliers
Authorized dealer for Fox, Bilstein, BFGoodrich & 50+ brands
Sold out
Original price
$2,025.09
-
Original price
$2,025.09
Original price
$2,025.09
$2,025.09
$2,025.09
-
$2,025.09
Current price
$2,025.09
Availability:
Out of stock
Description

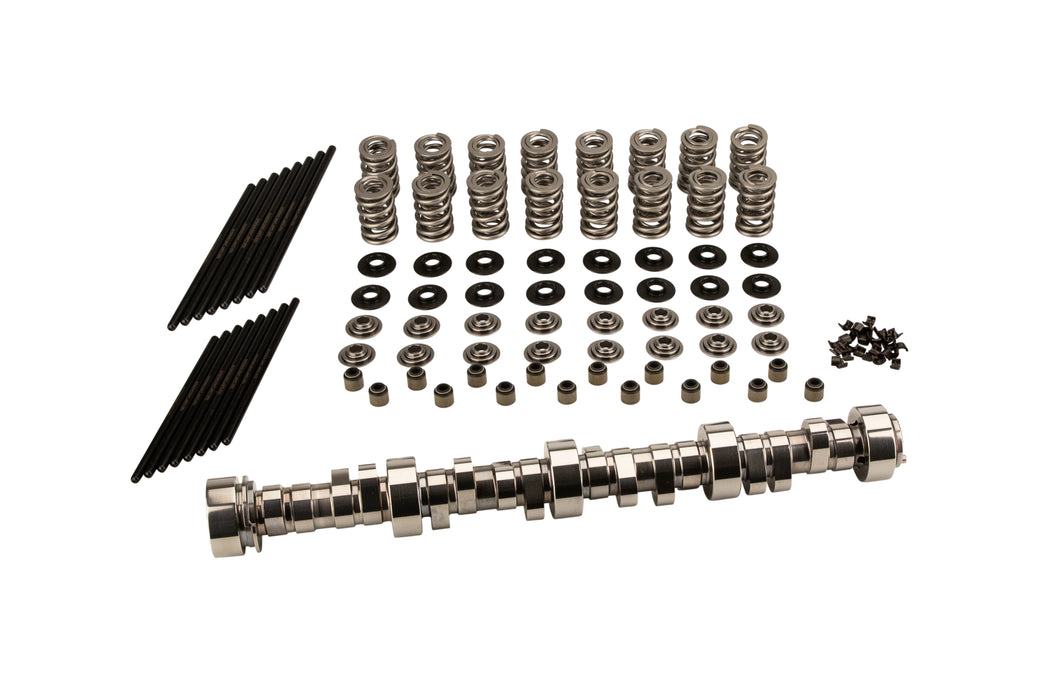

The Stage 1 LST Cam Kit for Manual LS3 Camaro/Corvette delivers the best average HP over a wide RPM range, ideal for serious street/track cars. Includes pushrods, springs, retainers, locks, seats and seals.
Resources
Installation InstructionsResources
Installation InstructionsSpecifications
| Advertised Exhaust Duration | 303 |
| Advertised Intake Duration | 298 |
| Amazon ASIN | B07MSTYGTJ |
| Assembly Lubricant Included | No |
| Basic Operating RPM Range | 3,300-7,500 |
| C.A.R.B. E.O. Number | N/A |
| C.A.R.B. Exempt for California Certified Vehicles Manufactured Before 1965? | Yes, but must meet tailpipe emission standards for year of vehicle. |
| C.A.R.B. Exempt for Federally Certified Vehicles Manufactured Before 1967? | Yes, but must meet tailpipe emission standards for year of vehicle. |
| C.A.R.B. Exempt for Foreign Vehicles Manufactured Before 1967? | Yes, but must meet tailpipe emission standards for year of vehicle. |
| C.A.R.B. Exempt for On-Road Vehicles? | No |
| C.A.R.B. Exempt for Racing and Off-Road Only Vehicles? | Yes, but must be a race/competition only vehicle. |
| C.A.R.B. Exemption Reason | N/A |
| California Proposition 65 | WARNING: Cancer and Reproductive Harm P65Warnings.ca.gov |
| Cam Type | Hydraulic Roller |
| Camshaft Gear Attachment | 3-Bolt |
| Camshaft Material | Billet Steel |
| Camshaft Series | Low Shock Technology |
| Description_ASC | SeeCK54-301-11 for Stage 1 Cam Kit that is designed for stock piston applications. |
| Description_ASM | Chevrolet: Camaro 10 - 16 6.2 L Engine, Chevrolet: Corvette 08 - 13 6.2 L Engine, Chevrolet: SS 14 - 16 6.2 L Engine |
| Description_DEF | Engine Camshaft Kit |
| Description_DES | 7 Tool Steel Retainer Set of 16, 8mm Valve w/ 26926 Springs |
| Description_DES | ID Spring Locator Set of 16 - 1.300" OD, .520" ID, .060" Thickness |
| Description_DES | Machined Steel Set of 16 - 7 Degree, 8mm, Single Groove Race Locks |
| Description_DES | Magnum 7.450" Long, .080" Wall, 5/16" Diameter Pushrod Set |
| Description_DES | Race Sportsman 1.320" OD Dual Springs; 1.835" Installed Height; 16 Springs |
| Description_DES | Set of 16 Steel Viton Valve Seals for .500" Guide Size, 8mm Valve Stem |
| Description_DES | Stage 1 LST Cam for Manual LS3 Corvette/Camaro w/ Aftermarket Pistons |
| Description_DES | Stage 1 LST Cam Kit for Manual LS3 Corvette/Camaro w/ Aftermarket Pistons |
| Description_EXT | The Stage 1 LST Cam Kit for Manual LS3 Camaro/Corvette delivers the best average HP over a wide RPM range, ideal for serious street/track cars. Includes pushrods, springs, retainers, locks, seats and seals. |
| Description_INV | Stg1 LSTCK LS3 Vette/Cmro Aftmkt Pistons |
| Description_KEY | GM, 4.8, 5.3, 5.7, 6.0, 6.2, 7.0, LS1, LS2, LS3, LS4, LS6, LS7, LSA, LS9, Camaro, Silverado, LS Swap, 383, 350, SBC, Chevelle, Yukon, L92, LM7, 325, GMC, Trailblazer, Corvette, GM LS, GEN III, GEN 3, GEN IV, GEN 4, DOD, AFM, VVT, BTR, Texas Speed |
| Description_SHO | Stg1LSTLS3Aftmkt |
| Description_SHP | None |
| Description_SLA | Stage 1 LST Cam Kit for Manual Transmission LS3 Corvette/Camaro w/ aftermarket pistons |
| Engine Family | GM LS GEN III/IV 3-Bolt 8 Cylinder (1997-2015) |
| Exhaust Duration at .050 inch Lift | 254 |
| Exhaust Valve Lift | 0.655 |
| Gaskets Included | No |
| Grind Number | 298LMH11 |
| height | 5.5 |
| Intake Duration at .050 Inch Lift | 243 |
| Intake Valve Lift | 0.663 |
| Kit Type | CK-Kit |
| length | 26.0 |
| Lifter Type | Hydraulic Roller |
| Lifters Included | No |
| Lobe Separation | 111 |
| Locks Included | Yes |
| LTL | N |
| Pushrods Included | Yes |
| Recommended Upgraded Stock Rocker Arms | 1478-16 |
| Retainers Included | Yes |
| Stage | 1 |
| Timing Set Included | No |
| Title | Stage 1 LST Cam Kit for Manual LS3 Corvette/Camaro w/ Aftermarket Pistons |
| Usage | Street/Strip |
| Valve Seals Included | Yes |
| Valve Spring Seats Included | Yes |
| Valve Springs Included | Yes |
| weight | 18.75 |
| width | 10.5 |
