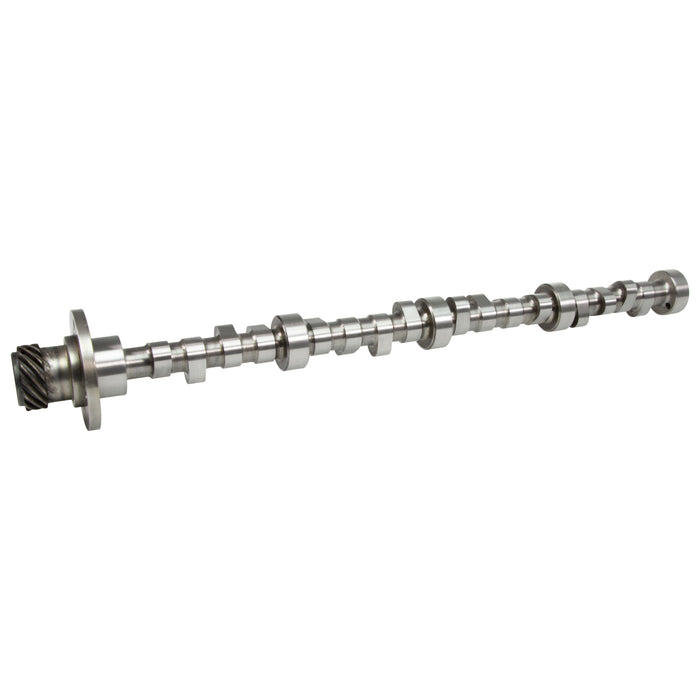

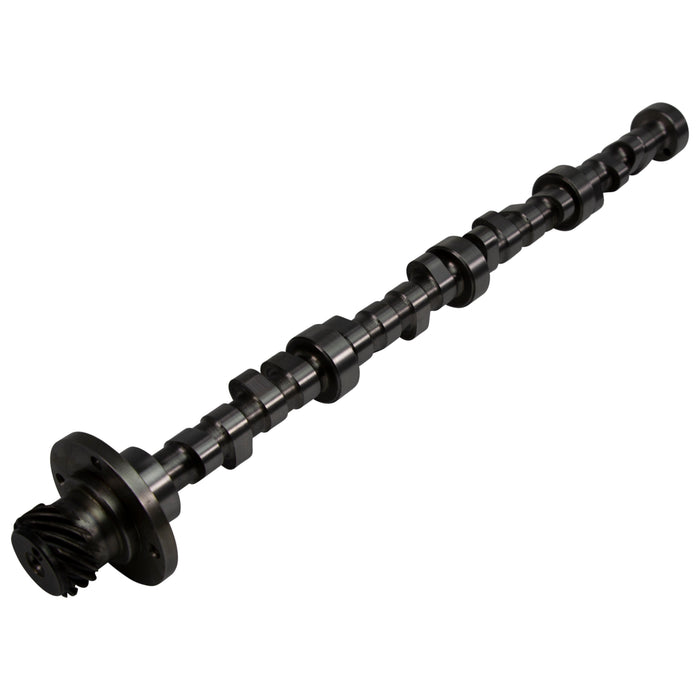

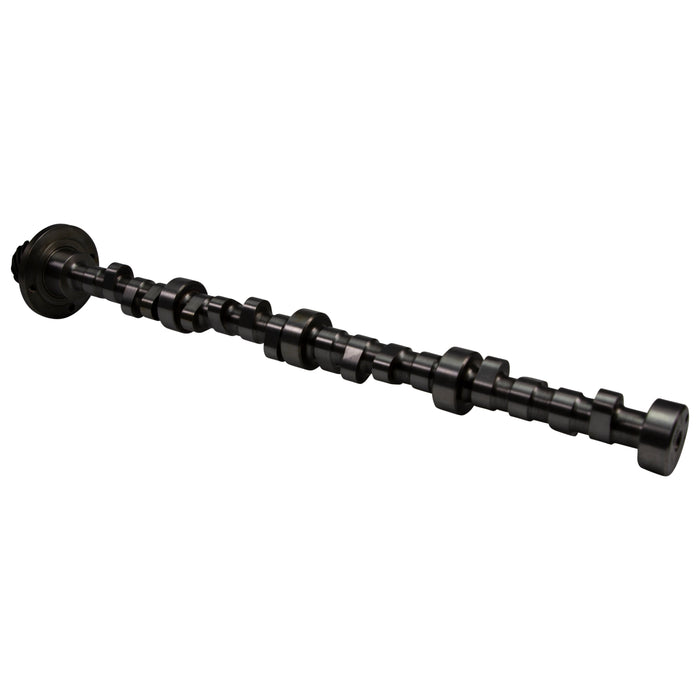

COMP Cams 94-801-10 Xtreme Energy 230/236 Hydraulic Roller Cam for Cadillac 425, 472, 500
by COMP Cams
SKU ds_BDQQ_94-801-10
Proudly Canadian
Albertan Owned
Supporting Canadian truckers since 2018
Secure Payments
Financing Available
SSL encrypted checkout with financing options
Trusted Brands
Top-Quality Suppliers
Authorized dealer for Fox, Bilstein, BFGoodrich & 50+ brands
Sold out
Original price
$1,292.17
-
Original price
$1,292.17
Original price
$1,292.17
$1,292.17
$1,292.17
-
$1,292.17
Current price
$1,292.17
Availability:
Out of stock
Description
Best all around high performance hydraulic roller camshaft for modified 500c.i. engines with high compression, converter and gears.
Resources
Installation InstructionsSpecifications
| Advertised Exhaust Duration | 291 |
| Advertised Intake Duration | 285 |
| Amazon ASIN | N/A |
| Assembly Lubricant Included | No |
| Basic Operating RPM Range | 1,800-5,400 |
| C.A.R.B. E.O. Number | N/A |
| C.A.R.B. Exempt for California Certified Vehicles Manufactured Before 1965? | Yes, but must meet tailpipe emission standards for year of vehicle. |
| C.A.R.B. Exempt for Federally Certified Vehicles Manufactured Before 1967? | Yes, but must meet tailpipe emission standards for year of vehicle. |
| C.A.R.B. Exempt for Foreign Vehicles Manufactured Before 1967? | Yes, but must meet tailpipe emission standards for year of vehicle. |
| C.A.R.B. Exempt for On-Road Vehicles? | No |
| C.A.R.B. Exempt for Racing and Off-Road Only Vehicles? | Yes, but must be a race/competition only vehicle. |
| C.A.R.B. Exemption Reason | N/A |
| California Proposition 65 | WARNING: Cancer and Reproductive Harm P65Warnings.ca.gov |
| Cam Type | Hydraulic Roller |
| Camshaft Gear Attachment | 1-Bolt |
| Camshaft Material | Billet Steel |
| Camshaft Series | Xtreme Energy |
| Description_ASM | Fits Cadillac 425, 472 and 500 |
| Description_DEF | Engine Camshaft |
| Description_DES | Xtreme Energy 230/236 Hydraulic Roller Cam for Cadillac 425, 472, 500 |
| Description_EXT | Best all around high performance hydraulic roller camshaft for modified 500c.i. engines with high compression, converter and gears. |
| Description_INV | XE 230/236 Hyd Roller Cam Cadillac |
| Description_KEY | 425 |
| Description_KEY | 472 |
| Description_KEY | 500 |
| Description_KEY | Cadillac |
| Description_KEY | Cadillac 500 |
| Description_SHO | XE285HR-10 |
| Description_SHP | None |
| Engine Family | Cadillac 425, 472, 500 c.i. (1963-1979) |
| Exhaust Duration at .050 inch Lift | 236 |
| Exhaust Valve Lift | 0.558 |
| Grind Number | XE285HR-10 |
| height | 4.0 |
| Intake Duration at .050 Inch Lift | 230 |
| Intake Valve Lift | 0.558 |
| length | 24.0 |
| Lifter Type | Hydraulic Roller |
| Lifters Included | No |
| Lobe Separation | 110 |
| LTL | N |
| Title | Xtreme Energy 230/236 Hydraulic Roller Cam for Cadillac 425, 472, 500 |
| Usage | Street/Performance |
| Valve Springs Required | Yes |
| weight | 12.0 |
| width | 4.0 |
