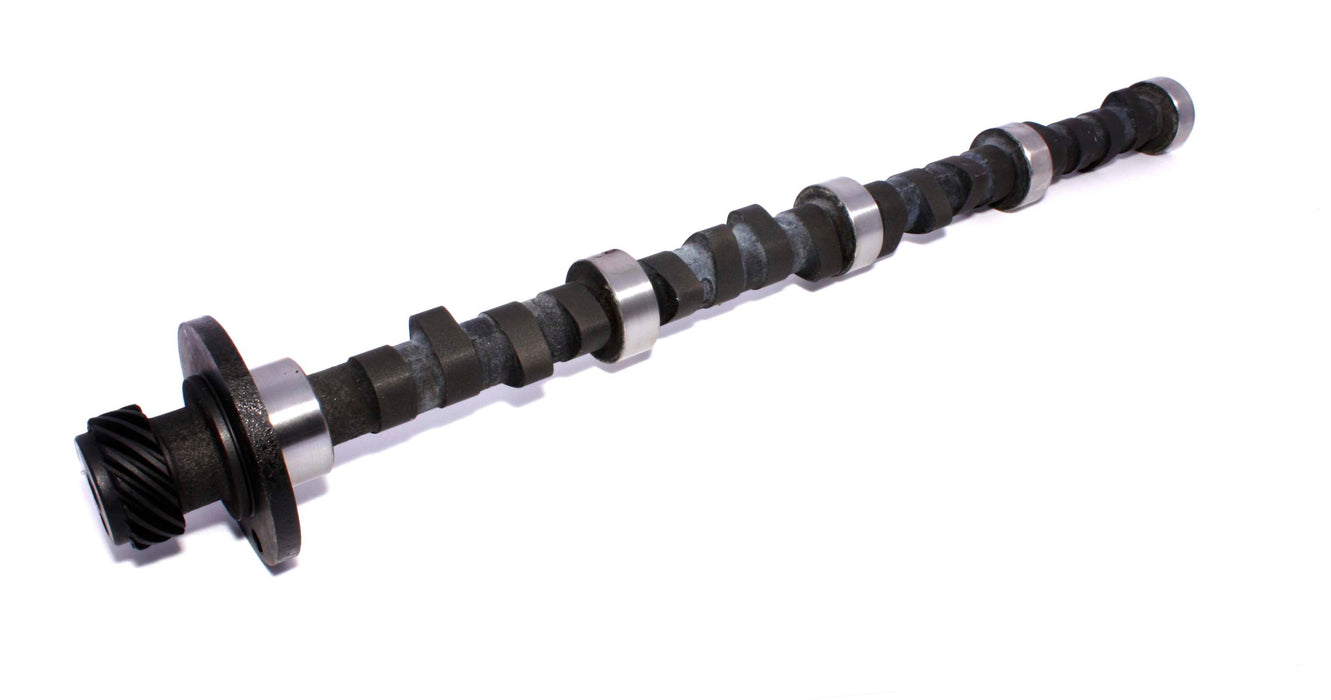

COMP Cams 94-306-5 Magnum 224/224 Hydraulic Flat Cam for Cadillac 425, 472, 500
by COMP Cams
SKU ds_BDQQ_94-306-5
Proudly Canadian
Albertan Owned
Supporting Canadian truckers since 2018
Secure Payments
Financing Available
SSL encrypted checkout with financing options
Trusted Brands
Top-Quality Suppliers
Authorized dealer for Fox, Bilstein, BFGoodrich & 50+ brands
Original price
$754.03
-
Original price
$754.03
Original price
$754.03
$754.03
$754.03
-
$754.03
Current price
$754.03
Availability:
Only 1 left!
Description
High performance street, strong mid-range, best with upgraded exhaust and 2000+ stall. Choppy idle.
Resources
Installation InstructionsResources
Installation InstructionsSpecifications
| Advertised Exhaust Duration | 270 |
| Advertised Intake Duration | 270 |
| Amazon ASIN | B001R9DRXU |
| Assembly Lubricant Included | Yes |
| Basic Operating RPM Range | 1,500-5,500 |
| C.A.R.B. E.O. Number | N/A |
| C.A.R.B. Exempt for California Certified Vehicles Manufactured Before 1965? | Yes, but must meet tailpipe emission standards for year of vehicle. |
| C.A.R.B. Exempt for Federally Certified Vehicles Manufactured Before 1967? | Yes, but must meet tailpipe emission standards for year of vehicle. |
| C.A.R.B. Exempt for Foreign Vehicles Manufactured Before 1967? | Yes, but must meet tailpipe emission standards for year of vehicle. |
| C.A.R.B. Exempt for On-Road Vehicles? | No |
| C.A.R.B. Exempt for Racing and Off-Road Only Vehicles? | Yes, but must be a race/competition only vehicle. |
| C.A.R.B. Exemption Reason | N/A |
| California Proposition 65 | WARNING: Cancer and Reproductive Harm P65Warnings.ca.gov |
| Cam and Lifter Kit Upgrade | CL94-306-5 |
| Cam Type | Hydraulic Flat Tappet |
| Camshaft Gear Attachment | 1-Bolt |
| Camshaft Material | Cast Iron |
| Camshaft Series | Magnum |
| Description_ASC | Available in a Cam and Lifter Kit under CL94-306-5 |
| Description_ASM | Fits Cadillac 425, 472 and 500 |
| Description_DEF | Engine Camshaft |
| Description_DES | Magnum 224/224 Hydraulic Flat Cam for Cadillac 425, 472, 500 |
| Description_EXT | High performance street, strong mid-range, best with upgraded exhaust and 2000+ stall. Choppy idle. |
| Description_INV | Magnum 224/224 Hyd Flat Cam Cadillac |
| Description_KEY | 425 |
| Description_KEY | 472 |
| Description_KEY | 500 |
| Description_KEY | Cadillac |
| Description_KEY | Cadillac 500 |
| Description_SHO | 270H |
| Description_SHP | None |
| Engine Family | Cadillac 425, 472, 500 c.i. (1963-1979) |
| Exhaust Duration at .050 inch Lift | 224 |
| Exhaust Valve Lift | 0.516 |
| Grind Number | 270H |
| height | 4.6 |
| Intake Duration at .050 Inch Lift | 224 |
| Intake Valve Lift | 0.516 |
| length | 25.5 |
| Lifter Type | Hydraulic Flat Tappet |
| Lifters Included | No |
| Lobe Separation | 110 |
| LTL | N |
| Title | Magnum 224/224 Hydraulic Flat Cam for Cadillac 425, 472, 500 |
| Usage | Street/Strip |
| Valve Springs Required | Yes |
| weight | 9.9 |
| width | 4.5 |
