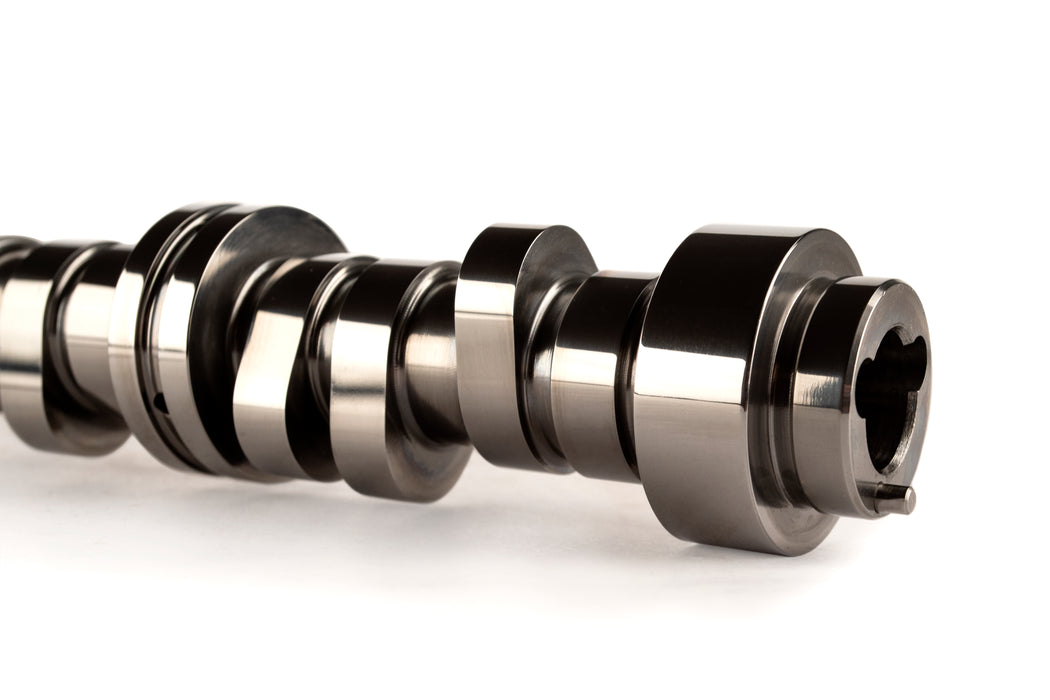

COMP Cams 689-422-13 XFI AFM 220/232 D, 218/230 N Hydraulic Roller Cam for GM LS GEN IV
by COMP Cams
SKU ds_BDQQ_689-422-13
Proudly Canadian
Albertan Owned
Supporting Canadian truckers since 2018
Secure Payments
Financing Available
SSL encrypted checkout with financing options
Trusted Brands
Top-Quality Suppliers
Authorized dealer for Fox, Bilstein, BFGoodrich & 50+ brands
Sold out
Original price
$704.23
-
Original price
$704.23
Original price
$704.23
$704.23
$704.23
-
$704.23
Current price
$704.23
Availability:
Out of stock
Description
Great all around performance and best choice for mildly modified L99 Camaro applications with AFM enabled.
Resources
Installation InstructionsResources
Installation InstructionsSpecifications
| Amazon ASIN | B0066SUNUM |
| Assembly Lubricant Included | No |
| C.A.R.B. E.O. Number | N/A |
| C.A.R.B. Exempt for California Certified Vehicles Manufactured Before 1965? | Yes, but must meet tailpipe emission standards for year of vehicle. |
| C.A.R.B. Exempt for Federally Certified Vehicles Manufactured Before 1967? | Yes, but must meet tailpipe emission standards for year of vehicle. |
| C.A.R.B. Exempt for Foreign Vehicles Manufactured Before 1967? | Yes, but must meet tailpipe emission standards for year of vehicle. |
| C.A.R.B. Exempt for On-Road Vehicles? | No |
| C.A.R.B. Exempt for Racing and Off-Road Only Vehicles? | Yes, but must be a race/competition only vehicle. |
| C.A.R.B. Exemption Reason | N/A |
| California Proposition 65 | WARNING: Cancer and Reproductive Harm P65Warnings.ca.gov |
| Camshaft Gear Attachment | 1-Bolt |
| Camshaft Material | Billet Steel |
| Camshaft Series | XFI AFM |
| Description_ASC | Only fits applications with part number 12606358 Variable Valve Timing Actuator. |
| Description_ASM | Cadillac: Escalade 10 - 13 6 L Engine, Cadillac: Escalade 08 - 16 6.2 L Engine, Cadillac: Escalade ESV 08 - 15 6.2 L Engine, Cadillac: Escalade EXT 08 - 13 6.2 L Engine, Chevrolet: Avalanche 08 - 13 5.3 L Engine, Chevrolet: Camaro 10 - 15 6.2 L Engine, Chevrolet: Colorado 10 - 12 5.3 L Engine, Chevrolet: Express 1500 08 - 14 5.3 L Engine, Chevrolet: Express Pasajeros 10 - 15 5.3 L Engine, Chevrolet: Silverado 1500 08 - 13 5.3 L Engine, Chevrolet: Silverado 1500 10 - 13 6 L Engine, Chevrolet: Silverado 1500 09 - 13 6.2 L Engine, Chevrolet: Suburban 1500 08 - 14 5.3 L Engine, Chevrolet: Tahoe 09 - 11 5.3 L Engine, Chevrolet: Tahoe 10 - 13 6 L Engine, Chevrolet: Tahoe 08 - 09 6.2 L Engine, GMC: Canyon 10 - 12 5.3 L Engine, GMC: Savana 1500 08 - 14 5.3 L Engine, GMC: Sierra 11 - 16 5.3 L Engine, GMC: Sierra 08 - 08 6.2 L Engine, GMC: Sierra 1500 08 - 13 5.3 L Engine, GMC: Sierra 1500 10 - 13 6 L Engine, GMC: Sierra 1500 08 - 13 6.2 L Engine, GMC: Yukon 09 - 10 5.3 L Engine, GMC: Yukon 10 - 13 6 L Engine, GMC: Yukon 08 - 14 6.2 L Engine, GMC: Yukon XL 1500 08 - 14 5.3 L Engine, GMC: Yukon XL 1500 08 - 14 6.2 L Engine, Hummer: H2 08 - 09 6.2 L Engine, Hummer: H3 10 - 10 5.3 L Engine, Hummer: H3T 10 - 10 5.3 L Engine |
| Description_DEF | Engine Camshaft |
| Description_DES | XFI AFM 220/232 D, 218/230 N Hydraulic Roller Cam for GM LS GEN IV |
| Description_EXT | Great all around performance and best choice for mildly modified L99 Camaro applications with AFM enabled. |
| Description_INV | XFI AFM 220/232 D H-Rlr Cam GM LS GEN IV |
| Description_KEY | GM, 4.8, 5.3, 5.7, 6.0, 6.2, 7.0, LS1, LS2, LS3, LS4, LS6, LS7, LSA, LS9, Camaro, Silverado, LS Swap, 383, 350, SBC, Chevelle, Yukon, L92, LM7, 325, GMC, Trailblazer, Corvette, GM LS, GEN III, GEN 3, GEN IV, GEN 4, DOD, AFM, VVT, BTR, Texas Speed |
| Description_SHO | XFIA 220/232HRlr LS |
| Description_SHP | None |
| Engine Family | GM LS GEN IV Single Bolt w/ VVT (12606358) and w/ AFM 8 Cylinder (2008-2015) |
| Grind Number | 270PIIHR15 |
| height | 2.75 |
| length | 24.5 |
| Lifters Included | No |
| Lobe Separation | 115 |
| LTL | N |
| Title | XFI AFM 220/232 D, 218/230 N Hydraulic Roller Cam for GM LS GEN IV |
| Usage | Street/Performance |
| Valve Springs Required | Yes |
| weight | 10.0 |
| width | 3.0 |
