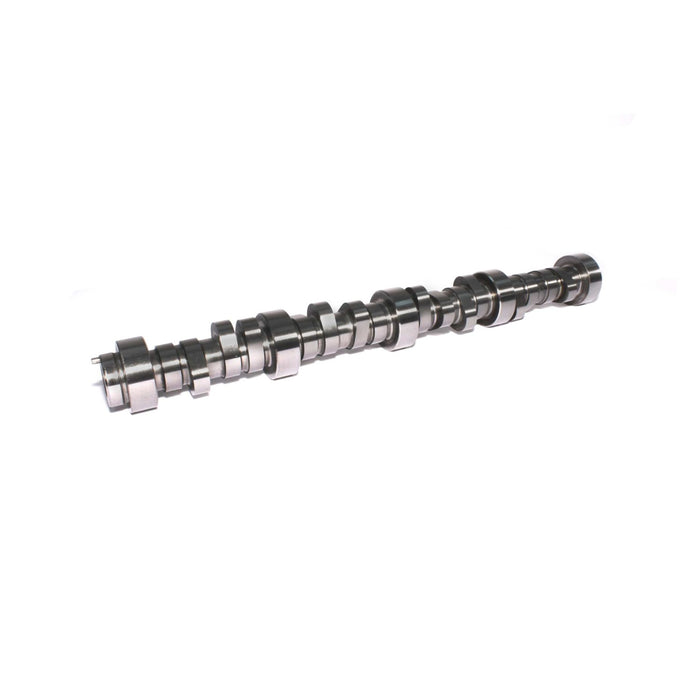

COMP Cams 646-432-13 XFI AFM 216/228 D, 214/226 N Hydraulic Roller Cam for GM LS2/LS3 GEN IV
by COMP Cams
SKU ds_BDQQ_646-432-13
Proudly Canadian
Albertan Owned
Supporting Canadian truckers since 2018
Secure Payments
Financing Available
SSL encrypted checkout with financing options
Trusted Brands
Top-Quality Suppliers
Authorized dealer for Fox, Bilstein, BFGoodrich & 50+ brands
Sold out
Original price
$728.25
-
Original price
$728.25
Original price
$728.25
$728.25
$728.25
-
$728.25
Current price
$728.25
Availability:
Out of stock
Description
Excellent performance gains over the widest possible range in modified applications like a G8 with manifold and headers.
Resources
Installation InstructionsResources
Installation InstructionsSpecifications
| Amazon ASIN | B0066ST5U6 |
| Assembly Lubricant Included | No |
| Basic Operating RPM Range | 1,900-6,500 |
| C.A.R.B. E.O. Number | N/A |
| C.A.R.B. Exempt for California Certified Vehicles Manufactured Before 1965? | Yes, but must meet tailpipe emission standards for year of vehicle. |
| C.A.R.B. Exempt for Federally Certified Vehicles Manufactured Before 1967? | Yes, but must meet tailpipe emission standards for year of vehicle. |
| C.A.R.B. Exempt for Foreign Vehicles Manufactured Before 1967? | Yes, but must meet tailpipe emission standards for year of vehicle. |
| C.A.R.B. Exempt for On-Road Vehicles? | No |
| C.A.R.B. Exempt for Racing and Off-Road Only Vehicles? | Yes, but must be a race/competition only vehicle. |
| C.A.R.B. Exemption Reason | N/A |
| California Proposition 65 | WARNING: Cancer and Reproductive Harm P65Warnings.ca.gov |
| Cam Type | Hydraulic Roller |
| Camshaft Gear Attachment | 1-Bolt |
| Camshaft Material | Billet Steel |
| Camshaft Series | XFI AFM |
| Description_ASM | Chevrolet: Suburban 14 - 16 5.3 L Engine, Chevrolet: Trailblazer EXT 05 - 06 5.3 L Engine, GMC: Envoy XL 05 - 06 5.3 L Engine, GMC: Envoy XUV 05 - 05 5.3 L Engine, GMC: Sierra 11 - 16 5.3 L Engine, Chevrolet: Cheyenne 07 - 16 5.3 L Engine, Chevrolet: Caprice 11 - 17 6 L Engine, Saab: 9-7x 05 - 09 5.3 L Engine, Chevrolet: Express 3500 03 - 05 5.3 L Engine, Chevrolet: Avalanche 07 - 13 5.3 L Engine, Chevrolet: Silverado 1500 07 - 13 5.3 L Engine, Chevrolet: Tahoe 08 - 09 6 L Engine, Pontiac: G8 08 - 09 6 L Engine, Chevrolet: Silverado 2500 11 - 16 5.3 L Engine, Chevrolet: Express 1500 03 - 05 5.3 L Engine, GMC: Yukon XL 1500 07 - 09 6 L Engine, GMC: Sierra 1500 07 - 09 6 L Engine, Buick: Rainier 05 - 07 5.3 L Engine, GMC: Envoy 05 - 09 5.3 L Engine, Chevrolet: Avalanche 07 - 09 6 L Engine, Chevrolet: Cheyenne 14 - 16 6.2 L Engine, GMC: Sierra 1500 07 - 13 5.3 L Engine, GMC: Yukon 07 - 14 5.3 L Engine, Chevrolet: Suburban 1500 07 - 14 5.3 L Engine, Chevrolet: Suburban 1500 07 - 09 6 L Engine, Chevrolet: Trailblazer 06 - 08 5.3 L Engine, Isuzu: Ascender 05 - 06 5.3 L Engine, Chevrolet: Tahoe 07 - 14 5.3 L Engine, GMC: Yukon 08 - 09 6 L Engine, Cadillac: Escalade 09 - 09 6 L Engine, GMC: Yukon XL 1500 07 - 14 5.3 L Engine, Chevrolet: Silverado 1500 07 - 09 6 L Engine |
| Description_DEF | Engine Camshaft |
| Description_DES | XFI AFM 216/228 D, 214/226 N Hydraulic Roller Cam for GM LS2/LS3 GEN IV |
| Description_EXT | Excellent performance gains over the widest possible range in modified applications like a G8 with manifold and headers. |
| Description_INV | XFI AFM 216/228 D H-Rlr Cam GM LS2/LS3 |
| Description_KEY | GM, 4.8, 5.3, 5.7, 6.0, 6.2, 7.0, LS1, LS2, LS3, LS4, LS6, LS7, LSA, LS9, Camaro, Silverado, LS Swap, 383, 350, SBC, Chevelle, Yukon, L92, LM7, 325, GMC, Trailblazer, Corvette, GM LS, GEN III, GEN 3, GEN IV, GEN 4, DOD, AFM, VVT, BTR, Texas Speed |
| Description_SHO | XFIA 216/228DLS |
| Description_SHP | None |
| Engine Family | GM LS2/LS3 GEN IV Single-Bolt w/ AFM and w/o VVT 8 Cylinder (2005-2014) |
| Grind Number | 266AFM16 |
| height | 2.75 |
| length | 24.5 |
| Lifter Type | Hydraulic Roller |
| Lifters Included | No |
| Lobe Separation | 116 |
| LTL | N |
| Title | XFI AFM 216/228 D, 214/226 N Hydraulic Roller Cam for GM GEN IV w/ AFM w/o VVT |
| Valve Springs Required | Yes |
| weight | 10.0 |
| width | 3.0 |
