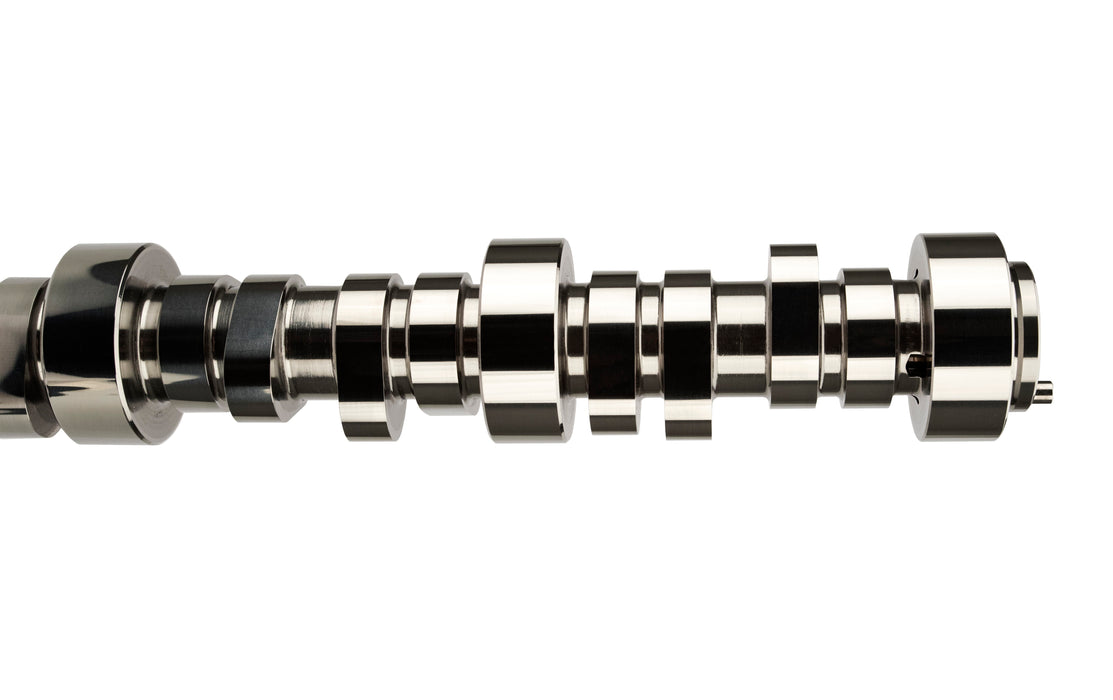

COMP Cams 54-697-11 Hustler Stage 2 Hydraulic Roller Cam for CT525 Crate Engine
by COMP Cams
SKU ds_BDQQ_54-697-11
Proudly Canadian
Albertan Owned
Supporting Canadian truckers since 2018
Secure Payments
Financing Available
SSL encrypted checkout with financing options
Trusted Brands
Top-Quality Suppliers
Authorized dealer for Fox, Bilstein, BFGoodrich & 50+ brands
Sold out
Original price
$728.52
-
Original price
$728.52
Original price
$728.52
$728.52
$728.52
-
$728.52
Current price
$728.52
Availability:
Out of stock
Description
Hustler CT525 Grind with .004" more lift and a small enough duration increase to make it very difficult to catch without removing the camshaft
Resources
Installation InstructionsResources
Installation InstructionsSpecifications
| Advertised Exhaust Duration | 306 |
| Advertised Intake Duration | 294 |
| Assembly Lubricant Included | Yes |
| Basic Operating RPM Range | 3500-7200 |
| C.A.R.B. E.O. Number | N/A |
| C.A.R.B. Exempt for California Certified Vehicles Manufactured Before 1965? | Yes, but must meet tailpipe emission standards for year of vehicle. |
| C.A.R.B. Exempt for Federally Certified Vehicles Manufactured Before 1967? | Yes, but must meet tailpipe emission standards for year of vehicle. |
| C.A.R.B. Exempt for Foreign Vehicles Manufactured Before 1967? | Yes, but must meet tailpipe emission standards for year of vehicle. |
| C.A.R.B. Exempt for On-Road Vehicles? | No |
| C.A.R.B. Exempt for Racing and Off-Road Only Vehicles? | Yes, but must be a race/competition only vehicle. |
| C.A.R.B. Exemption Reason | N/A |
| California Proposition 65 | WARNING: Cancer and Reproductive Harm P65Warnings.ca.gov |
| Cam Type | Hydraulic Roller |
| Camshaft Gear Attachment | 3-Bolt |
| Camshaft Material | Billet Steel |
| Camshaft Series | Hustler |
| Description_ASC | See 54-696-11 for Stage 1 |
| Description_ASM | CT525 Circle Track Crate Engine |
| Description_DEF | Engine Camshaft |
| Description_DES | Hustler Stage 2 Hydraulic Roller Cam for CT525 Crate Engine |
| Description_EXT | Hustler CT525 Grind with .004" more lift and a small enough duration increase to make it very difficult to catch without removing the camshaft |
| Description_INV | Hustler Stage 2 for CT525 Crate |
| Description_SHO | Hustler Stage2 Ct525 |
| Description_SHP | None |
| Engine Family | Chevrolet Gen III Small Block 1997-Present, LS1 & LS6 |
| Exhaust Duration at .050 inch Lift | 249 |
| Exhaust Valve Lift | 0.529 |
| Grind Number | 294LMH10 |
| height | 2.75 |
| Intake Duration at .050 Inch Lift | 239 |
| Intake Valve Lift | 0.529 |
| length | 24.0 |
| Lifter Type | Hydraulic Roller |
| Lifters Included | No |
| Lobe Separation | 110 |
| LTL | N |
| Stage | 2 |
| Title | Hustler Stage 2 Hydraulic Roller Cam for CT525 Crate Engine |
| Usage | Race |
| Valve Springs Required | No |
| weight | 10.2 |
| width | 3.0 |
