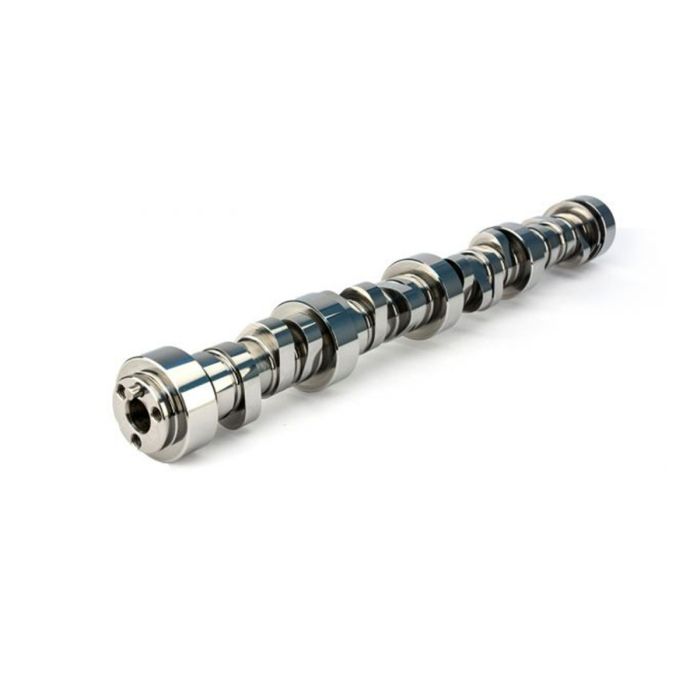

COMP Cams 54-275-11 HV Cam 226/234 .575/.570 Hyd Roller for GEN III/IV 4.8L/5.3L/6.0L
by COMP Cams
SKU ds_BDQQ_54-275-11
Proudly Canadian
Albertan Owned
Supporting Canadian truckers since 2018
Secure Payments
Financing Available
SSL encrypted checkout with financing options
Trusted Brands
Top-Quality Suppliers
Authorized dealer for Fox, Bilstein, BFGoodrich & 50+ brands
Original price
$890.11
-
Original price
$890.11
Original price
$890.11
$890.11
$890.11
-
$890.11
Current price
$890.11
Availability:
Only 1 left!
Description
This COMP Cams HV cam is designed with a focus toward either drivability, towing and response in larger displacement (6.0L up) engines or moving peak torque to higher RPM in smaller displacement (4.8L & 5.3L) applications. Awesome performance gains with +94 horsepower at peak and increased torque from 2800 rpm up. Get the most out of your cruiser or daily driver while enjoying great street manners. The HV cam will provide a deep rumble with a noticeable lope. At .575" lift, this cam is designed to take advantage of the inexpensive 26906 valve spring upgrade. Also compatible with stock converters.
Resources
Installation InstructionsSpecifications
| Advertised Exhaust Duration | 286 |
| Advertised Intake Duration | 279 |
| Basic Operating RPM Range | 2700 - 6500 |
| California Proposition 65 | WARNING: Cancer and Reproductive Harm P65Warnings.ca.gov |
| Cam Type | Hydraulic Roller |
| Camshaft Series | HV |
| Computer Controlled Compatible | Yes |
| Description_ASM | GM cathedral port LS engines GEN III/IV 4.8L/5.3/6.0L |
| Description_DEF | Engine Camshaft |
| Description_DES | HV Cam 226/234 .575/.570 Hyd Roller for GEN III/IV 4.8L/5.3L/6.0L |
| Description_EXT | This COMP Cams HV cam is designed with a focus towardeither drivability, towing and response in largerdisplacement (6.0L up) engines or moving peak torque tohigher RPM in smaller displacement (4.8L & 5.3L) applications. |
| Description_INV | HV Cam 226/234 GM LS GEN III/IV |
| Description_LAB | HV Cam 226/234 .575/.570 Hyd Roller for GEN III/IV 4.8L/5.3L/6.0L |
| Description_MKT | This COMP Cams HV cam is designed with a focus toward either drivability, towing and response in larger displacement (6.0L up) engines or moving peak torque to higher RPM in smaller displacement (4.8L & 5.3L) applications. Awesome performance gains with +94 horsepower at peak and increased torque from 2800 rpm up. Get the most out of your cruiser or daily driver while enjoying great street manners. The HV cam will provide a deep rumble with a noticeable lope. At .575" lift, this cam is designed to take advantage of the inexpensive 26906 valve spring upgrade. Also compatible with stock converters. |
| Description_SHO | Hyd Roller Camshaft |
| Description_SHP | None |
| Exhaust Duration at .050 inch Lift | 234 |
| height | 2.75 |
| Intake Duration at .050 Inch Lift | 226 |
| length | 24.0 |
| Lifter Type | Roller Tappet |
| Lobe Separation | 112.5 |
| LTL | N |
| Usage | Street |
| Valve Springs Required | Yes |
| weight | 10.0 |
| width | 2.75 |
