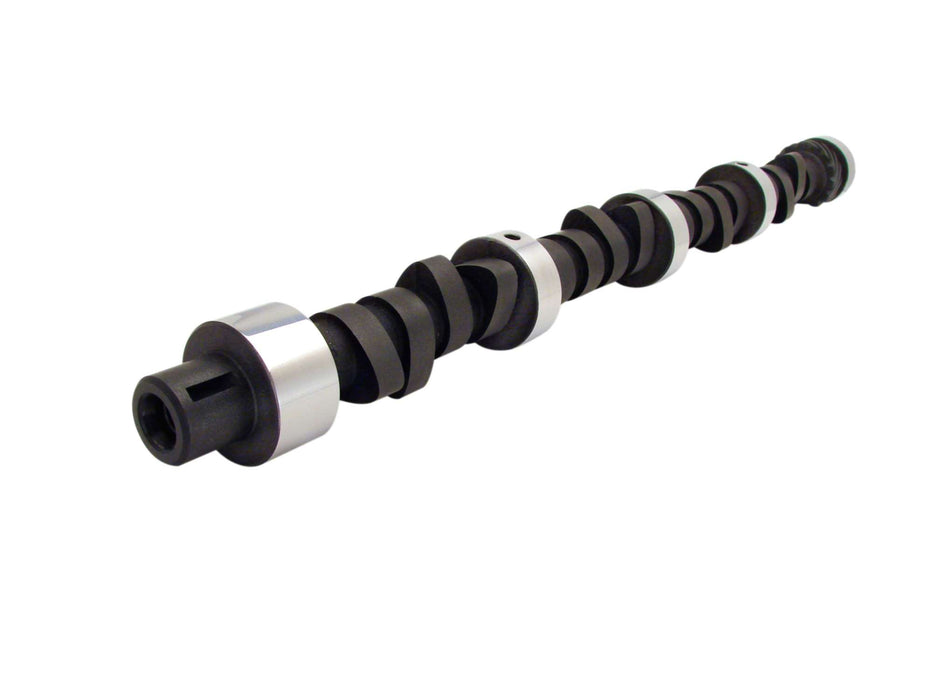

COMP Cams 51-245-4 Magnum 236/236 Solid Flat Cam for Pontiac 265-455
by COMP Cams
SKU ds_BDQQ_51-245-4
Proudly Canadian
Albertan Owned
Supporting Canadian truckers since 2018
Secure Payments
Financing Available
SSL encrypted checkout with financing options
Trusted Brands
Top-Quality Suppliers
Authorized dealer for Fox, Bilstein, BFGoodrich & 50+ brands
Sold out
Original price
$463.64
-
Original price
$463.64
Original price
$463.64
$463.64
$463.64
-
$463.64
Current price
$463.64
Availability:
Out of stock
Description
Mild idle, street machine cam. Needs 9.5:1+ compression, 2000+ stall and headers.
Resources
Installation InstructionsSpecifications
| Advertised Exhaust Duration | 282 |
| Advertised Intake Duration | 282 |
| Amazon ASIN | B001R9H7SQ |
| Assembly Lubricant Included | Yes |
| Basic Operating RPM Range | 2,000-6,000 |
| C.A.R.B. E.O. Number | N/A |
| C.A.R.B. Exempt for California Certified Vehicles Manufactured Before 1965? | Yes, but must meet tailpipe emission standards for year of vehicle. |
| C.A.R.B. Exempt for Federally Certified Vehicles Manufactured Before 1967? | Yes, but must meet tailpipe emission standards for year of vehicle. |
| C.A.R.B. Exempt for Foreign Vehicles Manufactured Before 1967? | Yes, but must meet tailpipe emission standards for year of vehicle. |
| C.A.R.B. Exempt for On-Road Vehicles? | No |
| C.A.R.B. Exempt for Racing and Off-Road Only Vehicles? | Yes, but must be a race/competition only vehicle. |
| C.A.R.B. Exemption Reason | N/A |
| California Proposition 65 | WARNING: Cancer and Reproductive Harm P65Warnings.ca.gov |
| Cam and Lifter Kit Upgrade | CL51-245-4 |
| Cam Type | Solid Flat Tappet |
| Camshaft Gear Attachment | 1-Bolt |
| Camshaft Material | Cast Iron |
| Camshaft Series | Magnum |
| Description_ASM | Pontiac 265-455 V8 |
| Description_DEF | Engine Camshaft |
| Description_DES | Magnum 236/236 Solid Flat Cam for Pontiac 265-455 |
| Description_EXT | Mild idle, street machine cam. Needs 9.5:1+ compression, 2000+ stall and headers. |
| Description_INV | Magnm 236/236 S-Flat Cam Pontiac 265-455 |
| Description_KEY | 265 |
| Description_KEY | 287 |
| Description_KEY | 301 |
| Description_KEY | 317 |
| Description_KEY | 347 |
| Description_KEY | 350 |
| Description_KEY | 370 |
| Description_KEY | 389 |
| Description_KEY | 400 |
| Description_KEY | 421 |
| Description_KEY | 428 |
| Description_KEY | 455 |
| Description_KEY | 455 HO |
| Description_KEY | Bonneville |
| Description_KEY | Catalina |
| Description_KEY | Century |
| Description_KEY | Firebird |
| Description_KEY | Formula |
| Description_KEY | Grand Am |
| Description_KEY | Grand Prix |
| Description_KEY | HO |
| Description_KEY | LeMans |
| Description_KEY | Parisienne |
| Description_KEY | Pontiac |
| Description_KEY | Ram Air |
| Description_KEY | Ram Air III |
| Description_KEY | Ram Air IV |
| Description_KEY | Regal |
| Description_KEY | SD |
| Description_KEY | SD455 |
| Description_KEY | Super Duty |
| Description_KEY | Trans-Am |
| Description_SHO | Mag 236/236 SFT Pont |
| Description_SHP | None |
| Engine Family | Pontiac 265-455 C.I. 8 Cylinder (1955-1981) |
| Exhaust Duration at .050 inch Lift | 236 |
| Exhaust Valve Lift | 0.495 |
| Grind Number | 282S |
| height | 2.75 |
| Intake Duration at .050 Inch Lift | 236 |
| Intake Valve Lift | 0.495 |
| K-Kit Upgrade | K51-245-4 |
| length | 24.5 |
| Lifter Type | Solid Flat Tappet |
| Lifters Included | No |
| Lobe Separation | 110 |
| LTL | N |
| SK-Kit Upgrade | SK51-245-4 |
| Title | Magnum 236/236 Solid Flat Cam for Pontiac 265-455 |
| Usage | Street/Performance |
| Valve Springs Required | Yes |
| weight | 8.81 |
| width | 3.0 |
