COMP Cams 46-525-9 Tri-Power Xtreme 194/206 Hydraulic Roller Cam for GM 8100/8.1L
by COMP Cams
SKU ds_BDQQ_46-525-9
Proudly Canadian
Albertan Owned
Supporting Canadian truckers since 2018
Secure Payments
Financing Available
SSL encrypted checkout with financing options
Trusted Brands
Top-Quality Suppliers
Authorized dealer for Fox, Bilstein, BFGoodrich & 50+ brands
Sold out
Original price
$795.61
-
Original price
$795.61
Original price
$795.61
$795.61
$795.61
-
$795.61
Current price
$795.61
Availability:
Out of stock
Description

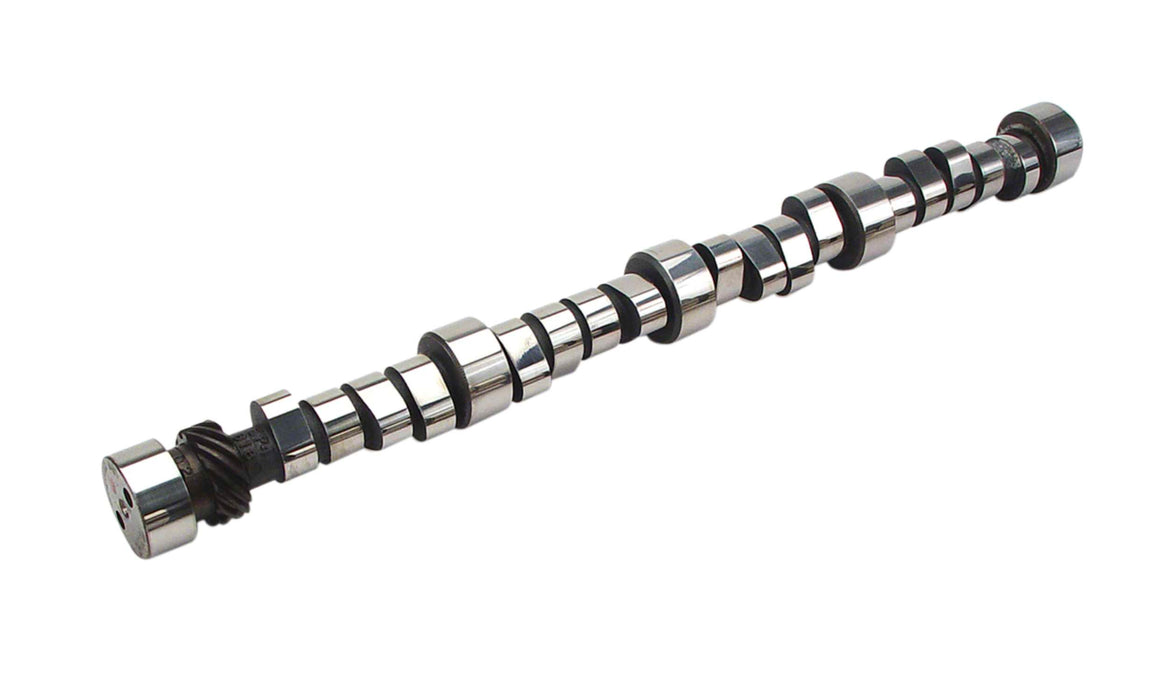

Tri-Power Xtreme 194/206 Hydraulic Roller Cam for GM 8100/8.1L
Resources
Installation InstructionsResources
Installation InstructionsSpecifications
| Advertised Exhaust Duration | 258 |
| Advertised Intake Duration | 246 |
| Amazon ASIN | B001G8GSYW |
| Assembly Lubricant Included | No |
| Basic Operating RPM Range | 600-4,600 |
| C.A.R.B. E.O. Number | N/A |
| C.A.R.B. Exempt for California Certified Vehicles Manufactured Before 1965? | Yes, but must meet tailpipe emission standards for year of vehicle. |
| C.A.R.B. Exempt for Federally Certified Vehicles Manufactured Before 1967? | Yes, but must meet tailpipe emission standards for year of vehicle. |
| C.A.R.B. Exempt for Foreign Vehicles Manufactured Before 1967? | Yes, but must meet tailpipe emission standards for year of vehicle. |
| C.A.R.B. Exempt for On-Road Vehicles? | No |
| C.A.R.B. Exempt for Racing and Off-Road Only Vehicles? | Yes, but must be a race/competition only vehicle. |
| C.A.R.B. Exemption Reason | N/A |
| California Proposition 65 | WARNING: Cancer and Reproductive Harm P65Warnings.ca.gov |
| Cam Type | Hydraulic Roller |
| Camshaft Material | Billet Steel |
| Camshaft Series | Tri-Power Xtreme |
| Description_DEF | Engine Camshaft |
| Description_DES | Tri-Power Xtreme 194/206 Hydraulic Roller Cam for GM 8100/8.1L |
| Description_EXT | Optimized fuel mileage with good torque and HP. |
| Description_INV | Tri-Power-X 194/206 H-Rlr Cam GM 8.1L |
| Description_SHO | TPX 194/206 HRlr8100 |
| Description_SHP | None |
| Engine Family | GM 8100/8.1L 8 Cylinder (2001+) |
| Exhaust Duration at .050 inch Lift | 206 |
| Exhaust Valve Lift | 0.493 |
| Grind Number | TPX246HR-16 246 |
| height | 2.75 |
| Intake Duration at .050 Inch Lift | 194 |
| Intake Valve Lift | 0.5 |
| length | 24.5 |
| Lifter Type | Hydraulic Roller |
| Lifters Included | No |
| Lobe Separation | 116 |
| LTL | N |
| Title | Tri-Power Xtreme 194/206 Hydraulic Roller Cam for GM 8100/8.1L |
| Usage | Street/Performance |
| Valve Springs Required | Yes |
| weight | 11.606 |
| width | 3.0 |
