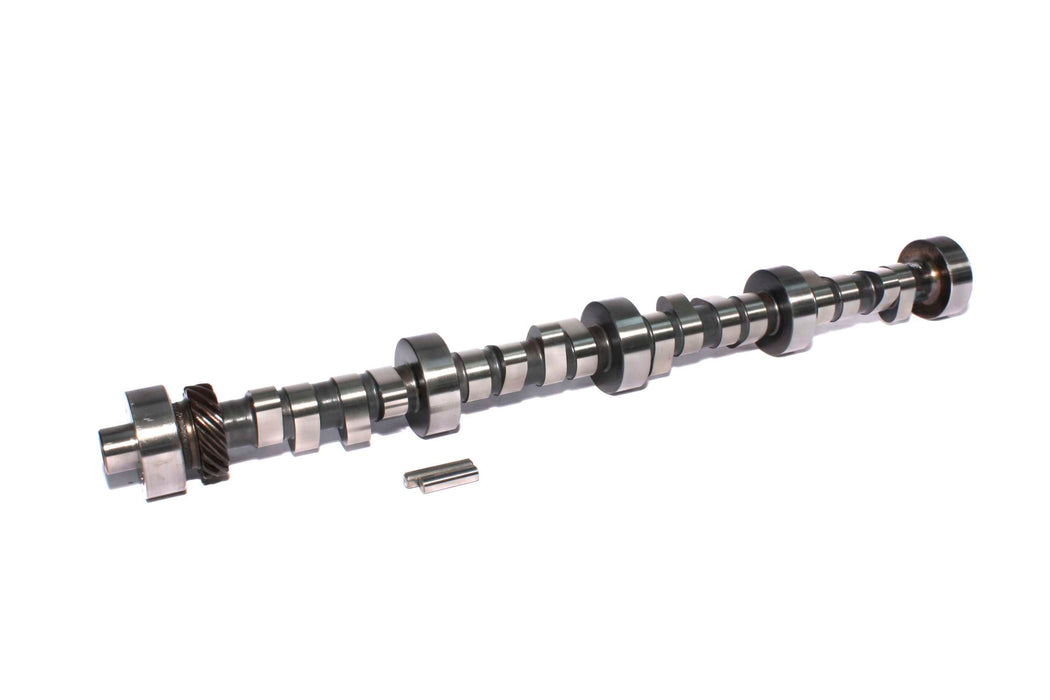

COMP Cams 35-452-8 Magnum 230/230 Hydraulic Roller Cam for Ford 351W
by COMP Cams
SKU ds_BDQQ_35-452-8
Proudly Canadian
Albertan Owned
Supporting Canadian truckers since 2018
Secure Payments
Financing Available
SSL encrypted checkout with financing options
Trusted Brands
Top-Quality Suppliers
Authorized dealer for Fox, Bilstein, BFGoodrich & 50+ brands
Sold out
Original price
$760.09
-
Original price
$760.09
Original price
$760.09
$760.09
$760.09
-
$760.09
Current price
$760.09
Availability:
Out of stock
Description
Street machine and limited high performance street use. Best with 4 speed or 2800+ stall and 3.40 to 4.10 gears, aftermarket intake and headers.
Resources
Installation InstructionsResources
Installation InstructionsSpecifications
| Advertised Exhaust Duration | 290 |
| Advertised Intake Duration | 290 |
| Amazon ASIN | B001GC46RY |
| Assembly Lubricant Included | No |
| Basic Operating RPM Range | 2,500-6,000 |
| C.A.R.B. E.O. Number | N/A |
| C.A.R.B. Exempt for California Certified Vehicles Manufactured Before 1965? | Yes, but must meet tailpipe emission standards for year of vehicle. |
| C.A.R.B. Exempt for Federally Certified Vehicles Manufactured Before 1967? | Yes, but must meet tailpipe emission standards for year of vehicle. |
| C.A.R.B. Exempt for Foreign Vehicles Manufactured Before 1967? | Yes, but must meet tailpipe emission standards for year of vehicle. |
| C.A.R.B. Exempt for On-Road Vehicles? | No |
| C.A.R.B. Exempt for Racing and Off-Road Only Vehicles? | Yes, but must be a race/competition only vehicle. |
| C.A.R.B. Exemption Reason | N/A |
| California Proposition 65 | WARNING: Cancer and Reproductive Harm P65Warnings.ca.gov |
| Cam and Lifter Kit Upgrade | CL35-452-8 |
| Cam Type | Hydraulic Roller |
| Camshaft Gear Attachment | 1-Bolt |
| Camshaft Material | Austempered Ductile Iron |
| Camshaft Series | Magnum |
| Description_ASM | Fits Ford Small Block Engines originally equipped with "Old" firing order and 351 Windsor engines with the "Windsor" firing order |
| Description_DEF | Engine Camshaft |
| Description_DES | Magnum 230/230 Hydraulic Roller Cam for Ford 351W |
| Description_EXT | Street machine and limited high performance street use. Best with 4 speed or 2800+ stall and 3.40 to 4.10 gears, aftermarket intake and headers. |
| Description_INV | Magnum 230/230 Hyd Roller Cam Ford 351W |
| Description_KEY | Ford, 351W, Windsor, 351 Windsor, 302, 5.0 HO, Explorer, Mutang, Ford Mustang, 408, 347, Fox Body Mustang, Fox Body, 302 HO, Cougar, F100, F150 |
| Description_SHO | Mag 230/230 HRlr351W |
| Description_SHP | None |
| Engine Family | Ford 351W 8 Cylinder (1969-1996) |
| Exhaust Duration at .050 inch Lift | 230 |
| Exhaust Valve Lift | 0.544 |
| Grind Number | 290HR |
| height | 2.75 |
| Intake Duration at .050 Inch Lift | 230 |
| Intake Valve Lift | 0.544 |
| K-Kit Upgrade | K35-452-8 |
| length | 24.5 |
| Lifter Type | Hydraulic Roller |
| Lifters Included | No |
| Lobe Separation | 110 |
| LTL | N |
| SK-Kit Upgrade | SK35-452-8 |
| Title | Magnum 230/230 Hydraulic Roller Cam for Ford 351W |
| Usage | Street/Strip |
| Valve Springs Required | Yes |
| weight | 9.61 |
| width | 3.0 |
