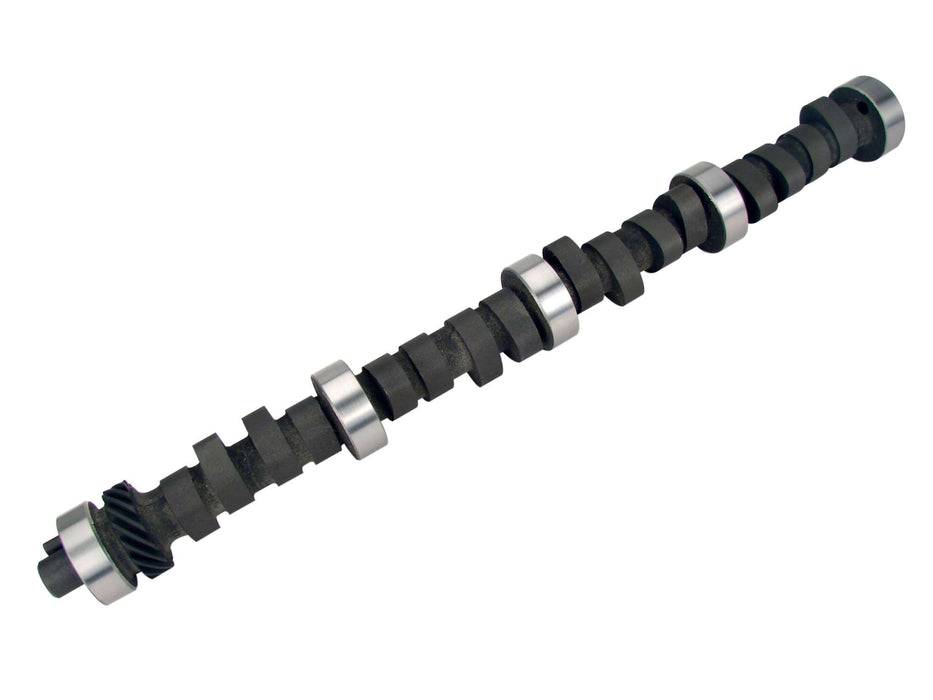

COMP Cams 34-343-4 Magnum 260/260 Solid Flat Cam for Ford 429,460
by COMP Cams
SKU ds_BDQQ_34-343-4
Proudly Canadian
Albertan Owned
Supporting Canadian truckers since 2018
Secure Payments
Financing Available
SSL encrypted checkout with financing options
Trusted Brands
Top-Quality Suppliers
Authorized dealer for Fox, Bilstein, BFGoodrich & 50+ brands
Sold out
Original price
$463.64
-
Original price
$463.64
Original price
$463.64
$463.64
$463.64
-
$463.64
Current price
$463.64
Availability:
Out of stock
Description
Bracket race or limited street use. Must have low gear with 3500+ stall. 10.5:1 compression. Racy idle.
Resources
Installation InstructionsResources
Installation InstructionsSpecifications
| Advertised Exhaust Duration | 306 |
| Advertised Intake Duration | 306 |
| Amazon ASIN | B000N5QCO0 |
| Assembly Lubricant Included | Yes |
| Basic Operating RPM Range | 3,000-6800 |
| C.A.R.B. E.O. Number | N/A |
| C.A.R.B. Exempt for California Certified Vehicles Manufactured Before 1965? | Yes, but must meet tailpipe emission standards for year of vehicle. |
| C.A.R.B. Exempt for Federally Certified Vehicles Manufactured Before 1967? | Yes, but must meet tailpipe emission standards for year of vehicle. |
| C.A.R.B. Exempt for Foreign Vehicles Manufactured Before 1967? | Yes, but must meet tailpipe emission standards for year of vehicle. |
| C.A.R.B. Exempt for On-Road Vehicles? | No |
| C.A.R.B. Exempt for Racing and Off-Road Only Vehicles? | Yes, but must be a race/competition only vehicle. |
| C.A.R.B. Exemption Reason | N/A |
| California Proposition 65 | WARNING: Cancer and Reproductive Harm P65Warnings.ca.gov |
| Cam and Lifter Kit Upgrade | CL34-343-4 |
| Cam Type | Solid Flat Tappet |
| Camshaft Gear Attachment | 1-Bolt |
| Camshaft Material | Cast Iron |
| Camshaft Series | Magnum |
| Description_ASM | Fits Ford Big Block/385 Series 429 and 460 |
| Description_DEF | Engine Camshaft |
| Description_DES | Magnum 260/260 Solid Flat Cam for Ford 429,460 |
| Description_EXT | Bracket race or limited street use. Must have low gear with 3500+ stall. 10.5:1 compression. Racy idle. |
| Description_INV | Magnum 260/260 S-Flat Cam Ford 429,460 |
| Description_KEY | 385 |
| Description_KEY | 429 |
| Description_KEY | 429 Cobra Jet |
| Description_KEY | 460 |
| Description_KEY | BBF |
| Description_KEY | Big Block Ford |
| Description_KEY | Cobra Jet |
| Description_KEY | E150 |
| Description_KEY | E250 |
| Description_KEY | F100 |
| Description_KEY | F150 |
| Description_KEY | F250 |
| Description_KEY | Ford |
| Description_KEY | Interceptor |
| Description_KEY | Lima |
| Description_KEY | Super Duty |
| Description_SHO | Mag 260/260 SFT BBF |
| Description_SHP | None |
| Engine Family | Ford 429, 460 c.i. 8 Cylinder (1968-1995) |
| Exhaust Duration at .050 inch Lift | 260 |
| Exhaust Valve Lift | 0.629 |
| Grind Number | 306S |
| height | 2.75 |
| Intake Duration at .050 Inch Lift | 260 |
| Intake Valve Lift | 0.629 |
| K-Kit Upgrade | K34-343-4 |
| length | 24.5 |
| Lifter Type | Solid Flat Tappet |
| Lifters Included | No |
| Lobe Separation | 110 |
| LTL | N |
| SK-Kit Upgrade | SK34-343-4 |
| Title | Magnum 260/260 Solid Flat Cam for Ford 429,460 |
| Usage | Street/Strip |
| Valve Springs Required | Yes |
| weight | 11.46 |
| width | 3.0 |
