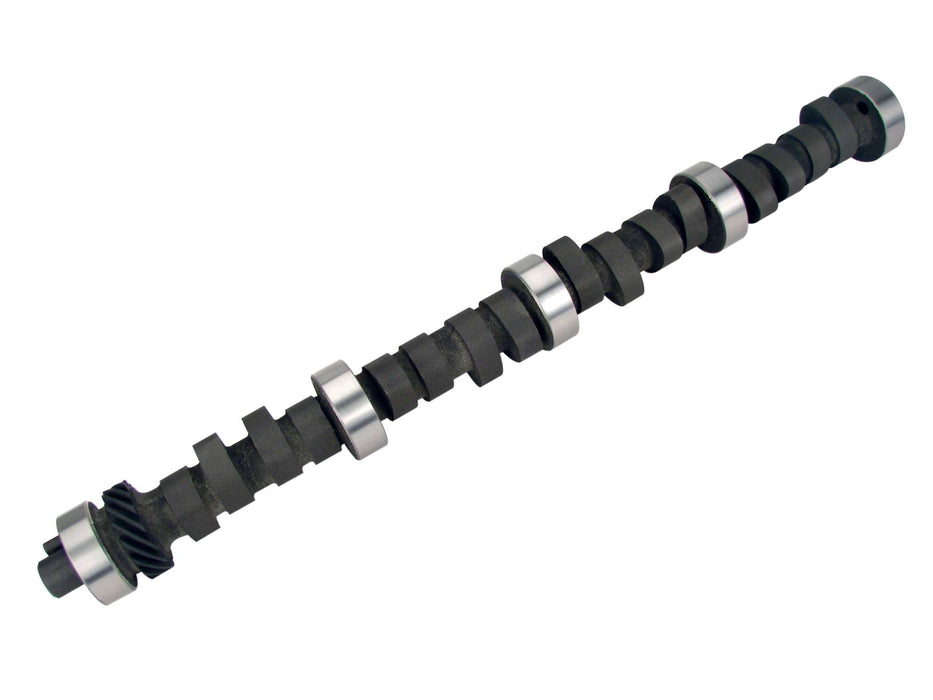

COMP Cams 34-342-4 Magnum 248/248 Solid Flat Cam for Ford 429,460
by COMP Cams
SKU ds_BDQQ_34-342-4
Proudly Canadian
Albertan Owned
Supporting Canadian truckers since 2018
Secure Payments
Financing Available
SSL encrypted checkout with financing options
Trusted Brands
Top-Quality Suppliers
Authorized dealer for Fox, Bilstein, BFGoodrich & 50+ brands
Original price
$488.28
-
Original price
$488.28
Original price
$488.28
$488.28
$488.28
-
$488.28
Current price
$488.28
Availability:
Only 2 left!
Description
Good street/strip cam. Excellent power. 3000+ stall with manifolds and 9.5:1+ compression. Radical idle.
Resources
Installation InstructionsResources
Installation InstructionsSpecifications
| Advertised Exhaust Duration | 294 |
| Advertised Intake Duration | 294 |
| Amazon ASIN | B001O063U6 |
| Assembly Lubricant Included | Yes |
| Basic Operating RPM Range | 2,500-6,500 |
| C.A.R.B. E.O. Number | N/A |
| C.A.R.B. Exempt for California Certified Vehicles Manufactured Before 1965? | Yes, but must meet tailpipe emission standards for year of vehicle. |
| C.A.R.B. Exempt for Federally Certified Vehicles Manufactured Before 1967? | Yes, but must meet tailpipe emission standards for year of vehicle. |
| C.A.R.B. Exempt for Foreign Vehicles Manufactured Before 1967? | Yes, but must meet tailpipe emission standards for year of vehicle. |
| C.A.R.B. Exempt for On-Road Vehicles? | No |
| C.A.R.B. Exempt for Racing and Off-Road Only Vehicles? | Yes, but must be a race/competition only vehicle. |
| C.A.R.B. Exemption Reason | N/A |
| California Proposition 65 | WARNING: Cancer and Reproductive Harm P65Warnings.ca.gov |
| Cam and Lifter Kit Upgrade | CL34-342-4 |
| Cam Type | Solid Flat Tappet |
| Camshaft Gear Attachment | 1-Bolt |
| Camshaft Material | Cast Iron |
| Camshaft Series | Magnum |
| Description_ASM | Fits Ford Big Block/385 Series 429 and 460 |
| Description_DEF | Engine Camshaft |
| Description_DES | Magnum 248/248 Solid Flat Cam for Ford 429,460 |
| Description_EXT | Good street/strip cam. Excellent power. 3000+ stall with manifolds and 9.5:1+ compression. Radical idle. |
| Description_INV | Magnum 248/248 S-Flat Cam Ford 429,460 |
| Description_KEY | 385 |
| Description_KEY | 429 |
| Description_KEY | 429 Cobra Jet |
| Description_KEY | 460 |
| Description_KEY | BBF |
| Description_KEY | Big Block Ford |
| Description_KEY | Cobra Jet |
| Description_KEY | E150 |
| Description_KEY | E250 |
| Description_KEY | F100 |
| Description_KEY | F150 |
| Description_KEY | F250 |
| Description_KEY | Ford |
| Description_KEY | Interceptor |
| Description_KEY | Lima |
| Description_KEY | Super Duty |
| Description_SHO | Mag 248/248 SFT BBF |
| Description_SHP | None |
| Engine Family | Ford 429, 460 c.i. 8 Cylinder (1968-1995) |
| Exhaust Duration at .050 inch Lift | 248 |
| Exhaust Valve Lift | 0.605 |
| Grind Number | 294S |
| height | 2.6 |
| Intake Duration at .050 Inch Lift | 248 |
| Intake Valve Lift | 0.605 |
| K-Kit Upgrade | K34-342-4 |
| length | 24.1 |
| Lifter Type | Solid Flat Tappet |
| Lifters Included | No |
| Lobe Separation | 110 |
| LTL | N |
| SK-Kit Upgrade | SK34-342-4 |
| Title | Magnum 248/248 Solid Flat Cam for Ford 429,460 |
| Usage | Street/Performance |
| Valve Springs Required | Yes |
| weight | 11.464 |
| width | 2.9 |
