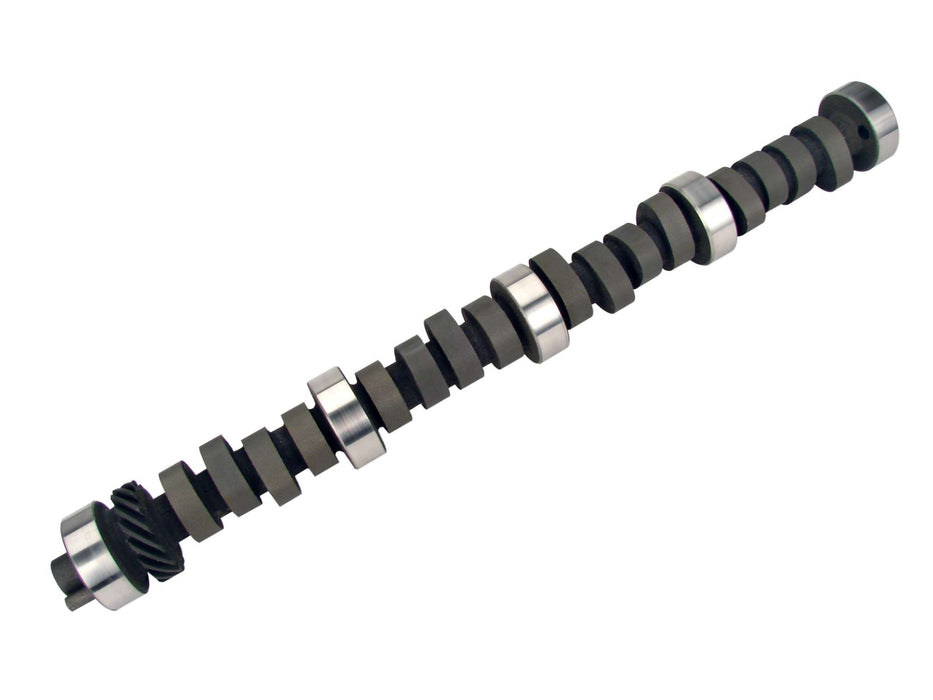

COMP Cams 32-235-4 Magnum/Drag Race 253/253 Hydraulic Flat Cam for Ford 351C, 351M-400M
by COMP Cams
SKU ds_BDQQ_32-235-4
Proudly Canadian
Albertan Owned
Supporting Canadian truckers since 2018
Secure Payments
Financing Available
SSL encrypted checkout with financing options
Trusted Brands
Top-Quality Suppliers
Authorized dealer for Fox, Bilstein, BFGoodrich & 50+ brands
Sold out
Original price
$447.83
-
Original price
$447.83
Original price
$447.83
$447.83
$447.83
-
$447.83
Current price
$447.83
Availability:
Out of stock
Description
Bracket race/limited street use, 3500+ stall, 11:1 compression, radical idle. Good torque in heavy car. 3500+ stall or 4 speed, 10:1 compression.
Resources
Installation InstructionsResources
Installation InstructionsSpecifications
| Advertised Exhaust Duration | 305 |
| Advertised Intake Duration | 305 |
| Amazon ASIN | B000P5DCP0 |
| Assembly Lubricant Included | Yes |
| Basic Operating RPM Range | 3,000-7000 |
| C.A.R.B. E.O. Number | N/A |
| C.A.R.B. Exempt for California Certified Vehicles Manufactured Before 1965? | Yes, but must meet tailpipe emission standards for year of vehicle. |
| C.A.R.B. Exempt for Federally Certified Vehicles Manufactured Before 1967? | Yes, but must meet tailpipe emission standards for year of vehicle. |
| C.A.R.B. Exempt for Foreign Vehicles Manufactured Before 1967? | Yes, but must meet tailpipe emission standards for year of vehicle. |
| C.A.R.B. Exempt for On-Road Vehicles? | No |
| C.A.R.B. Exempt for Racing and Off-Road Only Vehicles? | Yes, but must be a race/competition only vehicle. |
| C.A.R.B. Exemption Reason | N/A |
| California Proposition 65 | WARNING: Cancer and Reproductive Harm P65Warnings.ca.gov |
| Cam and Lifter Kit Upgrade | CL32-235-4 |
| Cam Type | Hydraulic Flat Tappet |
| Camshaft Gear Attachment | 1-Bolt |
| Camshaft Material | Cast Iron |
| Camshaft Series | Magnum |
| Description_ASM | Fits Ford 351 Cleveland, 351 Modified, 351 Cobra-Jet, Boss 351, 400 Modified |
| Description_DEF | Engine Camshaft |
| Description_DES | Magnum/Drag Race 253/253 Hydraulic Flat Cam for Ford 351C, 351M-400M |
| Description_EXT | Bracket race/limited street use, 3500+ stall, 11:1 compression, radical idle. Good torque in heavy car. 3500+ stall or 4 speed, 10:1 compression. |
| Description_INV | M/D-Race 253/253 H-Flt Cam Ford 351C-400 |
| Description_KEY | Ford, 351, 351 Cleveland, 400, 351 Modified, 400 Modified, Ford F100, Mach 1, Mustang |
| Description_SHO | M/DR 253/253 HFT351C |
| Description_SHP | None |
| Engine Family | Ford 351C, 351M-400M 8 Cylinder (1970-1983) |
| Exhaust Duration at .050 inch Lift | 253 |
| Exhaust Valve Lift | 0.585 |
| Grind Number | 305H |
| height | 2.75 |
| Intake Duration at .050 Inch Lift | 253 |
| Intake Valve Lift | 0.585 |
| K-Kit Upgrade | K32-235-4 |
| length | 24.5 |
| Lifter Type | Hydraulic Flat Tappet |
| Lifters Included | No |
| Lobe Separation | 110 |
| LTL | N |
| SK-Kit Upgrade | SK32-235-4 |
| Title | Magnum/Drag Race 253/253 Hydraulic Flat Cam for Ford 351C, 351M-400M |
| Usage | Street/Strip |
| Valve Springs Required | Yes |
| weight | 9.62 |
| width | 3.0 |
