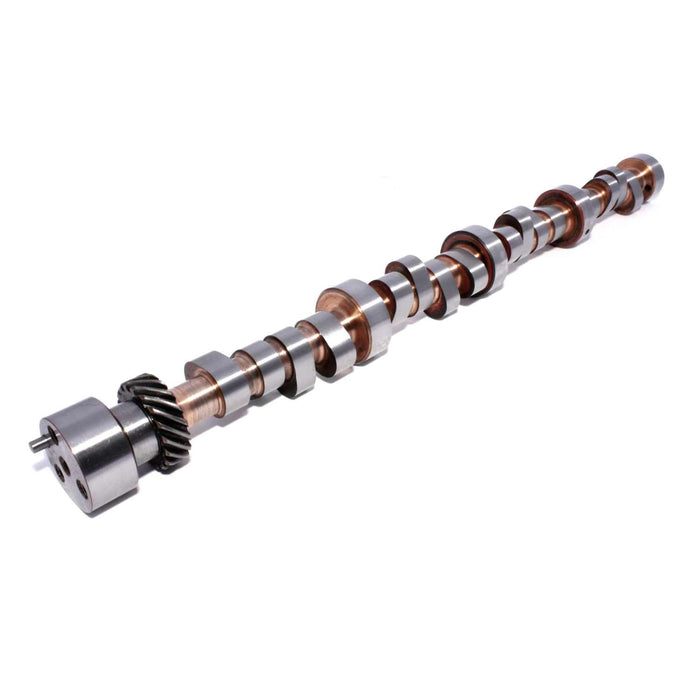

COMP Cams 23-709-9 Drag Race 285/292 Solid Roller Cam for Chrysler 383-440
by COMP Cams
SKU ds_BDQQ_23-709-9
Proudly Canadian
Albertan Owned
Supporting Canadian truckers since 2018
Secure Payments
Financing Available
SSL encrypted checkout with financing options
Trusted Brands
Top-Quality Suppliers
Authorized dealer for Fox, Bilstein, BFGoodrich & 50+ brands
Original price
$911.41
-
Original price
$911.41
Original price
$911.41
$911.41
$911.41
-
$911.41
Current price
$911.41
Availability:
Only 1 left!
Description
Super Quick, Super Gas, Super Comp or Fast Brackets. For use in medium to large engines with aftermarket heads. 12.5:1 compression with 5500-6000 stall.
Resources
Installation InstructionsResources
Installation InstructionsSpecifications
| Advertised Exhaust Duration | 330 |
| Advertised Intake Duration | 318 |
| Amazon ASIN | B000P595YW |
| Assembly Lubricant Included | No |
| Basic Operating RPM Range | 5,500-7,500 |
| C.A.R.B. E.O. Number | N/A |
| C.A.R.B. Exempt for California Certified Vehicles Manufactured Before 1965? | Yes, but must meet tailpipe emission standards for year of vehicle. |
| C.A.R.B. Exempt for Federally Certified Vehicles Manufactured Before 1967? | Yes, but must meet tailpipe emission standards for year of vehicle. |
| C.A.R.B. Exempt for Foreign Vehicles Manufactured Before 1967? | Yes, but must meet tailpipe emission standards for year of vehicle. |
| C.A.R.B. Exempt for On-Road Vehicles? | No |
| C.A.R.B. Exempt for Racing and Off-Road Only Vehicles? | Yes, but must be a race/competition only vehicle. |
| C.A.R.B. Exemption Reason | N/A |
| California Proposition 65 | WARNING: Cancer and Reproductive Harm P65Warnings.ca.gov |
| Cam Type | Solid Roller |
| Camshaft Gear Attachment | 3-Bolt |
| Camshaft Material | Billet Steel |
| Camshaft Series | Drag Race |
| Description_ASM | 3-Bolt Camshaft Design - Fits Chrysler B/RB 383, 400, 413, 426 Wedge and 440 |
| Description_DEF | Engine Camshaft |
| Description_DES | Drag Race 285/292 Solid Roller Cam for Chrysler 383-440 |
| Description_EXT | Super Quick, Super Gas, Super Comp or Fast Brackets. For use in medium to large engines with aftermarket heads. 12.5:1 compression with 5500-6000 stall. |
| Description_INV | Drg Race 285/292 S-Rlr Cam Chrys 383-440 |
| Description_KEY | 273, 360, 318, AMC, Dodge, Mopar, Plymouth, Dart, Road Runner, Charger, Challenger, 383, 400, 440, 426, HEMI, 426 Wedge, 426 HEMI, RB, B, HEMI, 392, Chrysler, LA |
| Description_SHO | DR 285/292 SRlrChBRB |
| Description_SHP | None |
| Engine Family | Chrysler 383-440 c.i. 8 Cylinder (1959-1980) |
| Exhaust Duration at .050 inch Lift | 292 |
| Exhaust Valve Lift | 0.705 |
| Grind Number | RX322R-10 |
| height | 2.59 |
| Intake Duration at .050 Inch Lift | 285 |
| Intake Valve Lift | 0.705 |
| length | 23.85 |
| Lifter Type | Solid Roller |
| Lifters Included | No |
| Lobe Separation | 110 |
| LTL | N |
| Title | Drag Race 285/292 Solid Roller Cam for Chrysler 383-440 |
| Valve Springs Required | Yes |
| weight | 9.1 |
| width | 2.83 |
