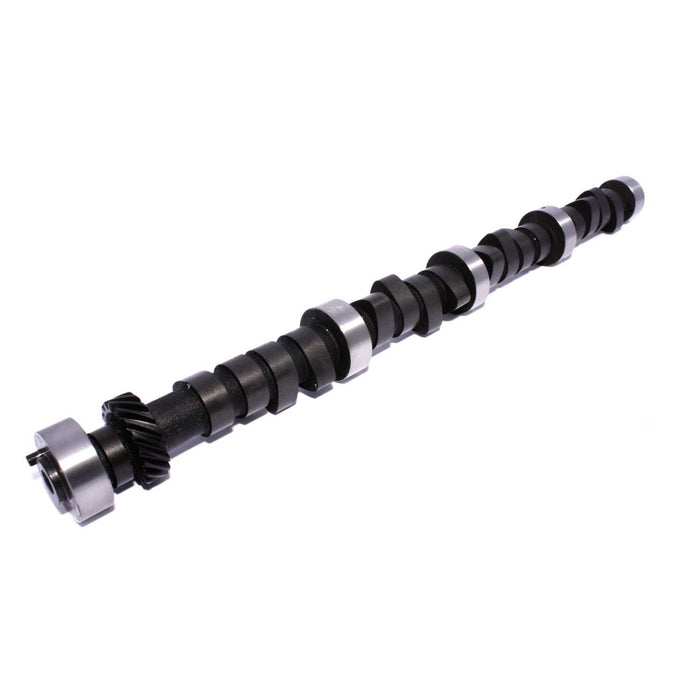

COMP Cams 21-246-4 Magnum 224/224 Solid Flat Cam for Chrysler 383-440
by COMP Cams
SKU ds_BDQQ_21-246-4
Proudly Canadian
Albertan Owned
Supporting Canadian truckers since 2018
Secure Payments
Financing Available
SSL encrypted checkout with financing options
Trusted Brands
Top-Quality Suppliers
Authorized dealer for Fox, Bilstein, BFGoodrich & 50+ brands
Sold out
Original price
$438.25
-
Original price
$438.25
Original price
$438.25
$438.25
$438.25
-
$438.25
Current price
$438.25
Availability:
Out of stock
Description
Good with stock converter. Near smooth idle in 440. Works good with 650-750 CFM carb. Excellent torque.
Resources
Installation InstructionsResources
Installation InstructionsSpecifications
| Advertised Exhaust Duration | 270 |
| Advertised Intake Duration | 270 |
| Amazon ASIN | B000P5B8V0 |
| Assembly Lubricant Included | Yes |
| Basic Operating RPM Range | 2,000-5,500 |
| C.A.R.B. E.O. Number | N/A |
| C.A.R.B. Exempt for California Certified Vehicles Manufactured Before 1965? | Yes, but must meet tailpipe emission standards for year of vehicle. |
| C.A.R.B. Exempt for Federally Certified Vehicles Manufactured Before 1967? | Yes, but must meet tailpipe emission standards for year of vehicle. |
| C.A.R.B. Exempt for Foreign Vehicles Manufactured Before 1967? | Yes, but must meet tailpipe emission standards for year of vehicle. |
| C.A.R.B. Exempt for On-Road Vehicles? | No |
| C.A.R.B. Exempt for Racing and Off-Road Only Vehicles? | Yes, but must be a race/competition only vehicle. |
| C.A.R.B. Exemption Reason | N/A |
| California Proposition 65 | WARNING: Cancer and Reproductive Harm P65Warnings.ca.gov |
| Cam and Lifter Kit Upgrade | CL21-246-4 |
| Cam Type | Solid Flat Tappet |
| Camshaft Gear Attachment | 1-Bolt |
| Camshaft Material | Cast Iron |
| Camshaft Series | Magnum |
| Description_ASM | Fits Chrysler B/RB 383, 400, 413, 426 Wedge and 440 |
| Description_DEF | Engine Camshaft |
| Description_DES | Magnum 224/224 Solid Flat Cam for Chrysler 383-440 |
| Description_EXT | Good with stock converter. Near smooth idle in 440. Works good with 650-750 CFM carb. Excellent torque. |
| Description_INV | Mag 224/224 S-Flat Cam Chrysler 383-440 |
| Description_KEY | 273, 360, 318, AMC, Dodge, Mopar, Plymouth, Dart, Road Runner, Charger, Challenger, 383, 400, 440, 426, HEMI, 426 Wedge, 426 HEMI, RB, B, HEMI, 392, Chrysler, LA |
| Description_SHO | 270S |
| Description_SHP | None |
| Engine Family | Chrysler 383-440 c.i. 8 Cylinder (1959-1980) |
| Exhaust Duration at .050 inch Lift | 224 |
| Exhaust Valve Lift | 0.468 |
| Grind Number | 270S |
| height | 2.75 |
| Intake Duration at .050 Inch Lift | 224 |
| Intake Valve Lift | 0.468 |
| K-Kit Upgrade | K21-246-4 |
| length | 24.5 |
| Lifter Type | Solid Flat Tappet |
| Lifters Included | No |
| Lobe Separation | 110 |
| LTL | N |
| SK-Kit Upgrade | SK21-246-4 |
| Title | Magnum 224/224 Solid Flat Cam for Chrysler 383-440 |
| Usage | Street/Strip |
| Valve Springs Required | Yes |
| weight | 9.38 |
| width | 3.0 |
