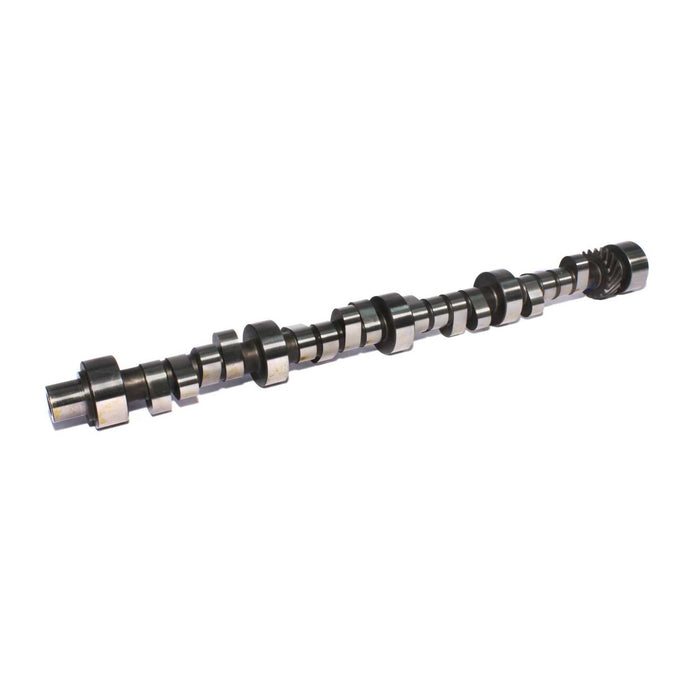

COMP Cams 20-743-9 Xtreme Energy 230/236 Solid Roller Cam for Chrysler 273-360
by COMP Cams
SKU ds_BDQQ_20-743-9
Proudly Canadian
Albertan Owned
Supporting Canadian truckers since 2018
Secure Payments
Financing Available
SSL encrypted checkout with financing options
Trusted Brands
Top-Quality Suppliers
Authorized dealer for Fox, Bilstein, BFGoodrich & 50+ brands
Sold out
Original price
$795.61
-
Original price
$795.61
Original price
$795.61
$795.61
$795.61
-
$795.61
Current price
$795.61
Availability:
Out of stock
Description
Good for mild street/strip use with 9:1 compression and a 2500 stall. Noticeable idle.
Resources
Installation InstructionsResources
Installation InstructionsSpecifications
| Advertised Exhaust Duration | 274 |
| Advertised Intake Duration | 268 |
| Amazon ASIN | B000P5D9TE |
| Assembly Lubricant Included | No |
| Basic Operating RPM Range | 2,000-6,000 |
| C.A.R.B. E.O. Number | N/A |
| C.A.R.B. Exempt for California Certified Vehicles Manufactured Before 1965? | Yes, but must meet tailpipe emission standards for year of vehicle. |
| C.A.R.B. Exempt for Federally Certified Vehicles Manufactured Before 1967? | Yes, but must meet tailpipe emission standards for year of vehicle. |
| C.A.R.B. Exempt for Foreign Vehicles Manufactured Before 1967? | Yes, but must meet tailpipe emission standards for year of vehicle. |
| C.A.R.B. Exempt for On-Road Vehicles? | No |
| C.A.R.B. Exempt for Racing and Off-Road Only Vehicles? | Yes, but must be a race/competition only vehicle. |
| C.A.R.B. Exemption Reason | N/A |
| California Proposition 65 | WARNING: Cancer and Reproductive Harm P65Warnings.ca.gov |
| Cam and Lifter Kit Upgrade | CL20-743-9 |
| Cam Type | Solid Roller |
| Camshaft Gear Attachment | 1-Bolt |
| Camshaft Material | Billet Steel |
| Camshaft Series | Xtreme Energy |
| Description_ASM | Fits Chrysler 273, 318, 340 and 360 LA |
| Description_DEF | Engine Camshaft |
| Description_DES | Xtreme Energy 230/236 Solid Roller Cam for Chrysler 273-360 |
| Description_EXT | Good for mild street/strip use with 9:1 compression and a 2500 stall. Noticeable idle. |
| Description_INV | XE 230/236 Solid Rollr Cam Chrys 273-360 |
| Description_KEY | 273, 360, 318, AMC, Dodge, Mopar, Plymouth, Dart, Road Runner, Charger, Challenger, 383, 400, 440, 426, HEMI, 426 Wedge, 426 HEMI, RB, B, HEMI, 392, Chrysler, LA |
| Description_SHO | XE 230/236 SRlrChrLA |
| Description_SHP | None |
| Engine Family | Chrysler 273-360 c.i. 8 Cylinder (1964-2002) |
| Exhaust Duration at .050 inch Lift | 236 |
| Exhaust Valve Lift | 0.564 |
| Grind Number | XR268R |
| height | 2.75 |
| Intake Duration at .050 Inch Lift | 230 |
| Intake Valve Lift | 0.552 |
| K-Kit Upgrade | K20-743-9 |
| length | 24.5 |
| Lifter Type | Solid Roller |
| Lifters Included | No |
| Lobe Separation | 110 |
| LTL | N |
| Title | Xtreme Energy 230/236 Solid Roller Cam for Chrysler 273-360 |
| Usage | Street/Performance |
| Valve Springs Required | Yes |
| weight | 9.53 |
| width | 3.0 |
