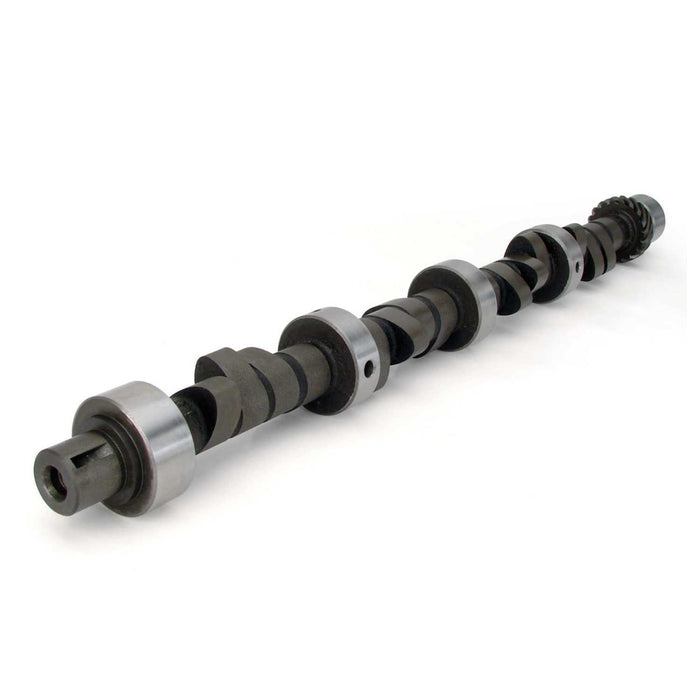

COMP Cams 20-618-5 318-340. 4000+ stall, 750 CFM, manifold. 4.88 gear. 10.5:1+ compression.
by COMP Cams
SKU ds_BDQQ_20-618-5
Proudly Canadian
Albertan Owned
Supporting Canadian truckers since 2018
Secure Payments
Financing Available
SSL encrypted checkout with financing options
Trusted Brands
Top-Quality Suppliers
Authorized dealer for Fox, Bilstein, BFGoodrich & 50+ brands
Sold out
Original price
$526.45
-
Original price
$526.45
Original price
$526.45
$526.45
$526.45
-
$526.45
Current price
$526.45
Availability:
Out of stock
Description
318-340. 4000+ stall, 750 CFM, manifold. 4.88 gear. 10.5:1+ compression.
Resources
Installation InstructionsResources
Installation InstructionsSpecifications
| Advertised Exhaust Duration | 290 |
| Advertised Intake Duration | 290 |
| Amazon ASIN | B001GBMGUY |
| Assembly Lubricant Included | Yes |
| Basic Operating RPM Range | 4,000-7000 |
| C.A.R.B. E.O. Number | N/A |
| C.A.R.B. Exempt for California Certified Vehicles Manufactured Before 1965? | Yes, but must meet tailpipe emission standards for year of vehicle. |
| C.A.R.B. Exempt for Federally Certified Vehicles Manufactured Before 1967? | Yes, but must meet tailpipe emission standards for year of vehicle. |
| C.A.R.B. Exempt for Foreign Vehicles Manufactured Before 1967? | Yes, but must meet tailpipe emission standards for year of vehicle. |
| C.A.R.B. Exempt for On-Road Vehicles? | No |
| C.A.R.B. Exempt for Racing and Off-Road Only Vehicles? | Yes, but must be a race/competition only vehicle. |
| C.A.R.B. Exemption Reason | N/A |
| California Proposition 65 | WARNING: Cancer and Reproductive Harm P65Warnings.ca.gov |
| Cam Type | Solid Flat Tappet |
| Camshaft Gear Attachment | 1-Bolt |
| Camshaft Material | Cast Iron |
| Camshaft Series | Drag Race |
| Description_ASM | Fits Chrysler 273, 318, 340 and 360 LA |
| Description_DEF | Engine Camshaft |
| Description_DES | Drag Race 255/255 Solid Flat Cam for Chrysler 273-360 |
| Description_EXT | 318-340. 4000+ stall, 750 CFM, manifold. 4.88 gear. 10.5:1+ compression. |
| Description_INV | D-Race 255/255 S-Flt Cam Chrys 273-360 |
| Description_KEY | 273, 360, 318, AMC, Dodge, Mopar, Plymouth, Dart, Road Runner, Charger, Challenger, 383, 400, 440, 426, HEMI, 426 Wedge, 426 HEMI, RB, B, HEMI, 392, Chrysler, LA |
| Description_SHO | DR 255/255 SFTChrLA |
| Description_SHP | None |
| Engine Family | Chrysler 273-360 c.i. 8 Cylinder (1964-2002) |
| Exhaust Duration at .050 inch Lift | 255 |
| Exhaust Valve Lift | 0.54 |
| Grind Number | 290A-6 |
| height | 2.75 |
| Intake Duration at .050 Inch Lift | 255 |
| Intake Valve Lift | 0.54 |
| length | 24.5 |
| Lifter Type | Solid Flat Tappet |
| Lifters Included | No |
| Lobe Separation | 106 |
| LTL | N |
| Title | Drag Race 255/255 Solid Flat Cam for Chrysler 273-360 |
| Usage | Strip |
| Valve Springs Required | Yes |
| weight | 9.12 |
| width | 3.0 |
