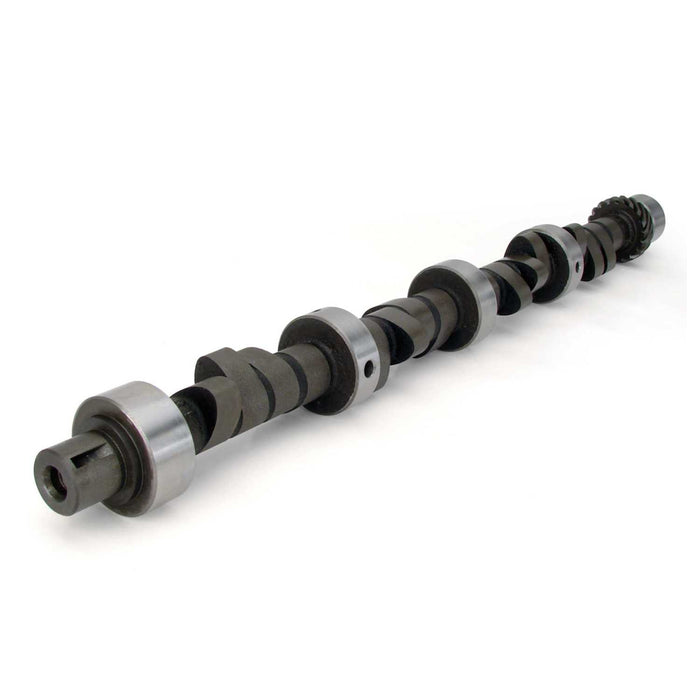

COMP Cams 20-244-4 Magnum 253/253 Hydraulic Flat Cam for Chrysler 273-360
by COMP Cams
SKU ds_BDQQ_20-244-4
Proudly Canadian
Albertan Owned
Supporting Canadian truckers since 2018
Secure Payments
Financing Available
SSL encrypted checkout with financing options
Trusted Brands
Top-Quality Suppliers
Authorized dealer for Fox, Bilstein, BFGoodrich & 50+ brands
Sold out
Original price
$462.10
-
Original price
$462.10
Original price
$462.10
$462.10
$462.10
-
$462.10
Current price
$462.10
Availability:
Out of stock
Description
Pro Street/all out bracket racing. 3500 to 4000 stall, 10:1 to 11:1 compression. Aftermarket manifold with 750 CFM carb.
Resources
Installation InstructionsResources
Installation InstructionsSpecifications
| Advertised Exhaust Duration | 305 |
| Advertised Intake Duration | 305 |
| Amazon ASIN | B000P5DCJ6 |
| Assembly Lubricant Included | Yes |
| Basic Operating RPM Range | 3,500-6,800 |
| C.A.R.B. E.O. Number | N/A |
| C.A.R.B. Exempt for California Certified Vehicles Manufactured Before 1965? | Yes, but must meet tailpipe emission standards for year of vehicle. |
| C.A.R.B. Exempt for Federally Certified Vehicles Manufactured Before 1967? | Yes, but must meet tailpipe emission standards for year of vehicle. |
| C.A.R.B. Exempt for Foreign Vehicles Manufactured Before 1967? | Yes, but must meet tailpipe emission standards for year of vehicle. |
| C.A.R.B. Exempt for On-Road Vehicles? | No |
| C.A.R.B. Exempt for Racing and Off-Road Only Vehicles? | Yes, but must be a race/competition only vehicle. |
| C.A.R.B. Exemption Reason | N/A |
| California Proposition 65 | WARNING: Cancer and Reproductive Harm P65Warnings.ca.gov |
| Cam and Lifter Kit Upgrade | CL20-244-4 |
| Cam Type | Hydraulic Flat Tappet |
| Camshaft Gear Attachment | 1-Bolt |
| Camshaft Material | Cast Iron |
| Camshaft Series | Magnum |
| Description_ASM | Fits Chrysler 273, 318, 340 and 360 LA |
| Description_DEF | Engine Camshaft |
| Description_DES | Magnum 253/253 Hydraulic Flat Cam for Chrysler 273-360 |
| Description_EXT | Pro Street/all out bracket racing. 3500 to 4000 stall, 10:1 to 11:1 compression. Aftermarket manifold with 750 CFM carb. |
| Description_INV | Mag 253/253 H-Flat Cam Chrysler 273-360 |
| Description_KEY | 273, 360, 318, AMC, Dodge, Mopar, Plymouth, Dart, Road Runner, Charger, Challenger, 383, 400, 440, 426, HEMI, 426 Wedge, 426 HEMI, RB, B, HEMI, 392, Chrysler, LA |
| Description_SHO | Mag 253/253 HFTChrLA |
| Description_SHP | None |
| Engine Family | Chrysler 273-360 c.i. 8 Cylinder (1964-2002) |
| Exhaust Duration at .050 inch Lift | 253 |
| Exhaust Valve Lift | 0.525 |
| Grind Number | 305H |
| height | 2.6 |
| Intake Duration at .050 Inch Lift | 253 |
| Intake Valve Lift | 0.525 |
| K-Kit Upgrade | K20-244-4 |
| length | 23.3 |
| Lifter Type | Hydraulic Flat Tappet |
| Lifters Included | No |
| Lobe Separation | 110 |
| LTL | N |
| SK-Kit Upgrade | SK20-244-4 |
| Title | Magnum 253/253 Hydraulic Flat Cam for Chrysler 273-360 |
| Usage | Street/Strip |
| Valve Springs Required | Yes |
| weight | 9.215 |
| width | 3.0 |
