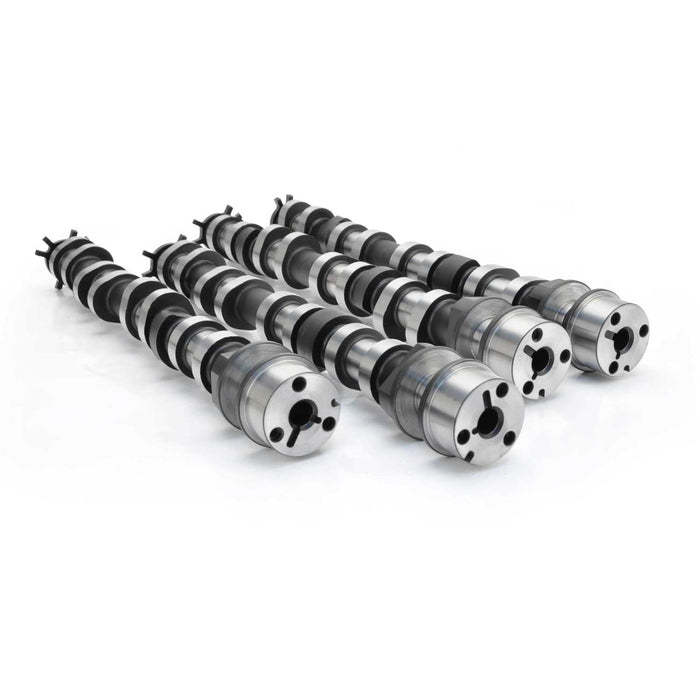

COMP Cams 191460 XFI NSR Blower 236/243 Hydraulic Roller Cams for Ford 5.0L Coyote
by COMP Cams
SKU ds_BDQQ_191460
Proudly Canadian
Albertan Owned
Supporting Canadian truckers since 2018
Secure Payments
Financing Available
SSL encrypted checkout with financing options
Trusted Brands
Top-Quality Suppliers
Authorized dealer for Fox, Bilstein, BFGoodrich & 50+ brands
Original price
$2,920.34
-
Original price
$2,920.34
Original price
$2,920.34
$2,920.34
$2,920.34
-
$2,920.34
Current price
$2,920.34
Availability:
Only 2 left!
Description
Max effort street/strip cam set. Best choice when running higher boost levels and high RPM in modified engines. Requires phaser limiter kit and custom ECU programming.
Resources
Installation InstructionsResources
Installation InstructionsSpecifications
| Advertised Exhaust Duration | 283 |
| Advertised Intake Duration | 283 |
| Amazon ASIN | B004RUZK8Q |
| Assembly Lubricant Included | No |
| Basic Operating RPM Range | 2,000-7,300 |
| C.A.R.B. E.O. Number | N/A |
| C.A.R.B. Exempt for California Certified Vehicles Manufactured Before 1965? | Yes, but must meet tailpipe emission standards for year of vehicle. |
| C.A.R.B. Exempt for Federally Certified Vehicles Manufactured Before 1967? | Yes, but must meet tailpipe emission standards for year of vehicle. |
| C.A.R.B. Exempt for Foreign Vehicles Manufactured Before 1967? | Yes, but must meet tailpipe emission standards for year of vehicle. |
| C.A.R.B. Exempt for On-Road Vehicles? | No |
| C.A.R.B. Exempt for Racing and Off-Road Only Vehicles? | Yes, but must be a race/competition only vehicle. |
| C.A.R.B. Exemption Reason | N/A |
| California Proposition 65 | WARNING: Cancer and Reproductive Harm P65Warnings.ca.gov |
| Cam Type | Hydraulic Roller Swinging Follower |
| Camshaft Gear Attachment | 3-Bolt |
| Camshaft Material | Billet Steel |
| Camshaft Series | XFI NSR (No Springs Required) Blower |
| Description_ASM | Ford: F-150 11 - 14 5 L Engine, Ford: Lobo 11 - 14 5 L Engine, Ford: Mustang 11 - 14 5 L Engine, Lincoln: Mark LT 11 - 14 5 L Engine |
| Description_DEF | Engine Camshaft |
| Description_DES | XFI NSR Blower 236/243 Hydraulic Roller Cams for Ford 5.0L Coyote |
| Description_EXT | Max effort street/strip cam set. Best choice when running higher boost levels and high RPM in modified engines. Requires phaser limiter kit and custom ECU programming. |
| Description_INV | XFI NSR Blower 236/243 H-Rlr Cams Coyote |
| Description_KEY | 5.0 |
| Description_KEY | Coyote |
| Description_KEY | Ford Mustang |
| Description_KEY | GT |
| Description_KEY | GT350 |
| Description_KEY | Mustang |
| Description_KEY | Mustang GT |
| Description_KEY | S197 |
| Description_KEY | S550 |
| Description_KEY | Shelby |
| Description_SHO | XFINSR 236/243Coyote |
| Description_SHP | None |
| Engine Family | Ford Coyote 5.0L DOHC Modular 4 Valve 8 Cylinder (2011+) |
| Exhaust Duration at .050 inch Lift | 243 |
| Exhaust Valve Lift | 0.453 |
| Grind Number | F5.0D NSR-BL3H-128 |
| height | 6.12 |
| Intake Duration at .050 Inch Lift | 236 |
| Intake Valve Lift | 0.492 |
| length | 24.5 |
| Lifter Type | Hydraulic Roller Swinging Follower |
| Lifters Included | No |
| Lobe Separation | 128 |
| LTL | N |
| Title | XFI NSR Blower 236/243 Hydraulic Roller Cams for Ford 5.0L Coyote |
| Usage | Street/Performance |
| Valve Springs Required | No |
| weight | 29.4 |
| width | 6.12 |
