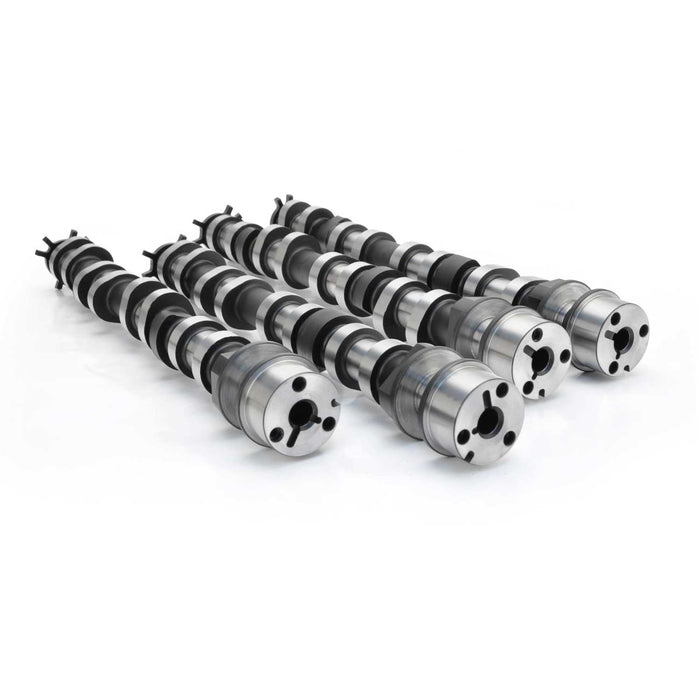

COMP Cams 191100 XFI NSR 228/231 Hydraulic Roller Cams for Ford 5.0L Coyote
by COMP Cams
SKU ds_BDQQ_191100
Proudly Canadian
Albertan Owned
Supporting Canadian truckers since 2018
Secure Payments
Financing Available
SSL encrypted checkout with financing options
Trusted Brands
Top-Quality Suppliers
Authorized dealer for Fox, Bilstein, BFGoodrich & 50+ brands
Original price
$2,920.34
-
Original price
$2,920.34
Original price
$2,920.34
$2,920.34
$2,920.34
-
$2,920.34
Current price
$2,920.34
Availability:
Only 1 left!
Description
Big power gains in mid to upper RPM range, especially above 4900 RPM. Requires phaser limiter kit and custom ECU programming.
Resources
Installation InstructionsResources
Installation InstructionsSpecifications
| Advertised Exhaust Duration | 275 |
| Advertised Intake Duration | 275 |
| Amazon ASIN | B004RV09LS |
| Assembly Lubricant Included | No |
| Basic Operating RPM Range | 1,700-7,000 |
| C.A.R.B. E.O. Number | N/A |
| C.A.R.B. Exempt for California Certified Vehicles Manufactured Before 1965? | Yes, but must meet tailpipe emission standards for year of vehicle. |
| C.A.R.B. Exempt for Federally Certified Vehicles Manufactured Before 1967? | Yes, but must meet tailpipe emission standards for year of vehicle. |
| C.A.R.B. Exempt for Foreign Vehicles Manufactured Before 1967? | Yes, but must meet tailpipe emission standards for year of vehicle. |
| C.A.R.B. Exempt for On-Road Vehicles? | No |
| C.A.R.B. Exempt for Racing and Off-Road Only Vehicles? | Yes, but must be a race/competition only vehicle. |
| C.A.R.B. Exemption Reason | N/A |
| California Proposition 65 | WARNING: Cancer and Reproductive Harm P65Warnings.ca.gov |
| Cam Type | Hydraulic Roller Swinging Follower |
| Camshaft Gear Attachment | 3-Bolt |
| Camshaft Material | Billet Steel |
| Camshaft Series | XFI NSR (No Springs Required) |
| Description_ASM | Ford: F-150 11 - 14 5 L Engine, Ford: Lobo 11 - 14 5 L Engine, Ford: Mustang 11 - 14 5 L Engine, Lincoln: Mark LT 11 - 14 5 L Engine |
| Description_DEF | Engine Camshaft |
| Description_DES | XFI NSR 228/231 Hydraulic Roller Cams for Ford 5.0L Coyote |
| Description_EXT | Big power gains in mid to upper RPM range, especially above 4900 RPM. Requires phaser limiter kit and custom ECU programming. |
| Description_INV | XFI NSR 228/231 H-Rlr Cams Ford Coyote |
| Description_KEY | 5.0 |
| Description_KEY | Coyote |
| Description_KEY | Ford Mustang |
| Description_KEY | GT |
| Description_KEY | GT350 |
| Description_KEY | Mustang |
| Description_KEY | Mustang GT |
| Description_KEY | S197 |
| Description_KEY | S550 |
| Description_KEY | Shelby |
| Description_SHO | XFINSR 228/231Coyote |
| Description_SHP | None |
| Engine Family | Ford Coyote 5.0L DOHC Modular 4 Valve 8 Cylinder (2011+) |
| Exhaust Duration at .050 inch Lift | 231 |
| Exhaust Valve Lift | 0.453 |
| Grind Number | F5.0D NSR-NA2H-126 |
| height | 6.29 |
| Intake Duration at .050 Inch Lift | 228 |
| Intake Valve Lift | 0.492 |
| length | 25.66 |
| Lifter Type | Hydraulic Roller Swinging Follower |
| Lifters Included | No |
| Lobe Separation | 126 |
| LTL | N |
| Title | XFI NSR 228/231 Hydraulic Roller Cams for Ford 5.0L Coyote |
| Usage | Street/Performance |
| Valve Springs Required | No |
| weight | 29.45 |
| width | 6.45 |
