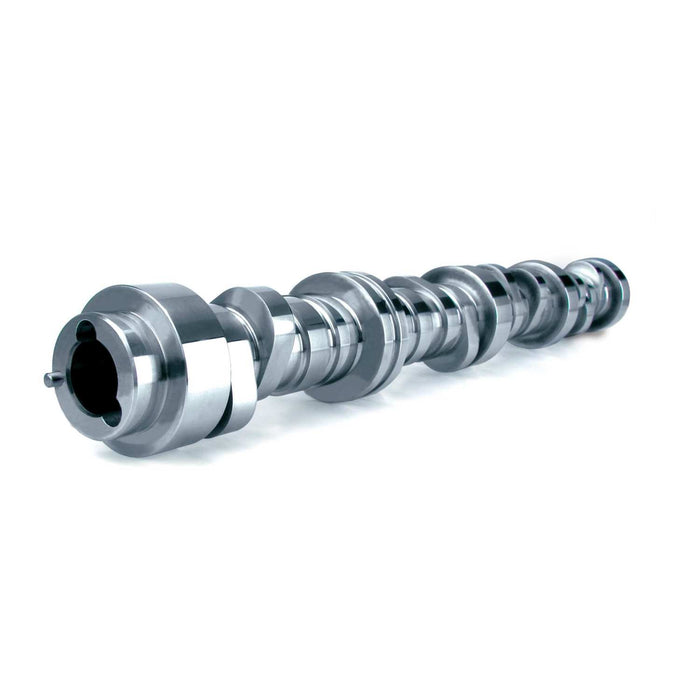

COMP Cams 156-400-13 Excellent responsiveness and low end torque with good power gains.
by COMP Cams
SKU ds_BDQQ_156-400-13
Proudly Canadian
Albertan Owned
Supporting Canadian truckers since 2018
Secure Payments
Financing Available
SSL encrypted checkout with financing options
Trusted Brands
Top-Quality Suppliers
Authorized dealer for Fox, Bilstein, BFGoodrich & 50+ brands
Sold out
Original price
$825.48
-
Original price
$825.48
Original price
$825.48
$825.48
$825.48
-
$825.48
Current price
$825.48
Availability:
Out of stock
Description
Excellent responsiveness and low end torque with good power gains.
Resources
Installation InstructionsResources
Installation InstructionsSpecifications
| Advertised Exhaust Duration | 277 |
| Advertised Intake Duration | 263 |
| Amazon ASIN | B005H89QGY |
| Assembly Lubricant Included | No |
| Basic Operating RPM Range | 1,300-6,500 |
| C.A.R.B. E.O. Number | N/A |
| C.A.R.B. Exempt for California Certified Vehicles Manufactured Before 1965? | Yes, but must meet tailpipe emission standards for year of vehicle. |
| C.A.R.B. Exempt for Federally Certified Vehicles Manufactured Before 1967? | Yes, but must meet tailpipe emission standards for year of vehicle. |
| C.A.R.B. Exempt for Foreign Vehicles Manufactured Before 1967? | Yes, but must meet tailpipe emission standards for year of vehicle. |
| C.A.R.B. Exempt for On-Road Vehicles? | No |
| C.A.R.B. Exempt for Racing and Off-Road Only Vehicles? | Yes, but must be a race/competition only vehicle. |
| C.A.R.B. Exemption Reason | N/A |
| California Proposition 65 | WARNING: Cancer and Reproductive Harm P65Warnings.ca.gov |
| Cam Type | Hydraulic Roller |
| Camshaft Gear Attachment | 1-Bolt |
| Camshaft Material | Billet Steel |
| Camshaft Series | XFI RPM Hi-Lift |
| Description_ASM | Chevrolet: Express 1500 08 - 08 5.3 L Engine, Hummer: H2 08 - 08 6.2 L Engine, GMC: Yukon XL 1500 08 - 08 6.2 L Engine, Chevrolet: Tahoe 08 - 08 6.2 L Engine, Cadillac: Escalade 08 - 08 6.2 L Engine, Cadillac: Escalade EXT 08 - 08 6.2 L Engine, Chevrolet: Silverado 1500 07 - 08 5.3 L Engine, Chevrolet: Avalanche 07 - 08 5.3 L Engine, GMC: Yukon 08 - 08 6.2 L Engine, Chevrolet: Suburban 1500 07 - 08 5.3 L Engine, GMC: Sierra 1500 07 - 08 5.3 L Engine, GMC: Savana 1500 08 - 08 5.3 L Engine, Cadillac: Escalade ESV 08 - 08 6.2 L Engine, GMC: Yukon XL 1500 07 - 08 5.3 L Engine, GMC: Sierra 1500 08 - 08 6.2 L Engine |
| Description_DEF | Engine Camshaft |
| Description_DES | XFI RPM HI-LIFT 210/224 Hydraulic Roller Cam for GM LS GEN IV |
| Description_EXT | Excellent responsiveness and low end torque with good power gains. |
| Description_INV | XFI RPM HL 210/224 Hyd Roller Cam GM LS |
| Description_KEY | GM, 4.8, 5.3, 5.7, 6.0, 6.2, 7.0, LS1, LS2, LS3, LS4, LS6, LS7, LSA, LS9, Camaro, Silverado, LS Swap, 383, 350, SBC, Chevelle, Yukon, L92, LM7, 325, GMC, Trailblazer, Corvette, GM LS, GEN III, GEN 3, GEN IV, GEN 4, DOD, AFM, VVT, BTR, Texas Speed |
| Description_SHO | XFIR 210/224 HRlr LS |
| Description_SHP | None |
| Engine Family | GM LS GEN IV Single-Bolt w/ VVT (12585994) and w/o AFM 8 Cylinder (2007-2008) |
| Exhaust Duration at .050 inch Lift | 224 |
| Exhaust Valve Lift | 0.568 |
| Grind Number | 263PHR14 |
| height | 2.75 |
| Intake Duration at .050 Inch Lift | 210 |
| Intake Valve Lift | 0.556 |
| length | 24.5 |
| Lifter Type | Hydraulic Roller |
| Lifters Included | No |
| Lobe Separation | 114 |
| LTL | N |
| Title | XFI RPM HI-LIFT 210/224 Hydraulic Roller Cam for GM LS GEN IV |
| Usage | Street/Performance |
| Valve Springs Required | Yes |
| weight | 10.16 |
| width | 3.0 |
