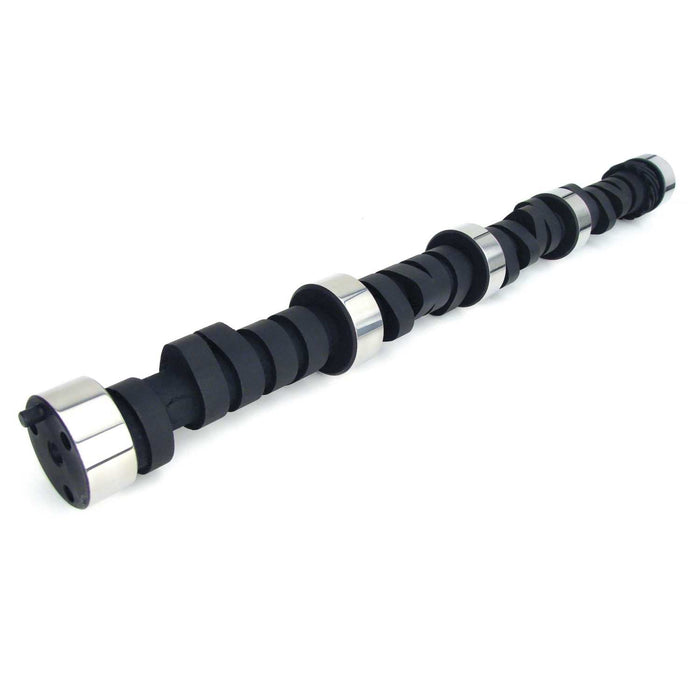

COMP Cams 11-318-4 Needs 9.5:1 compression, 2800+ stall, headers and lower gears. Choppy idle.
by COMP Cams
SKU ds_BDQQ_11-318-4
Proudly Canadian
Albertan Owned
Supporting Canadian truckers since 2018
Secure Payments
Financing Available
SSL encrypted checkout with financing options
Trusted Brands
Top-Quality Suppliers
Authorized dealer for Fox, Bilstein, BFGoodrich & 50+ brands
Sold out
Original price
$327.50
-
Original price
$327.50
Original price
$327.50
$327.50
$327.50
-
$327.50
Current price
$327.50
Availability:
Out of stock
Description
An older member of the COMP Cams grind family, the Magnum series of camshafts offers excellent performance gains over stock without the added wear and tear associated with more aggressive camshafts. Ideal for use with higher compression ratio engines that need to bleed off compression, the magnum series performs its best when static compression is 9.5:1+ and with an aftermarket higher stall torque converter. Delivering excellent high RPM power, while not needlessly abusing valve train parts, the Magnum grind family is the perfect choice for performance engines equipped with mild ratio rocker arms and traditional performance valve springs.
Resources
Installation InstructionsResources
Installation InstructionsSpecifications
| Advertised Exhaust Duration | 286 |
| Advertised Intake Duration | 286 |
| Amazon ASIN | B000CIU9U6 |
| Assembly Lubricant Included | Yes |
| Basic Operating RPM Range | 2,200-6,200 |
| C.A.R.B. E.O. Number | N/A |
| C.A.R.B. Exempt for California Certified Vehicles Manufactured Before 1965? | Yes, but must meet tailpipe emission standards for year of vehicle. |
| C.A.R.B. Exempt for Federally Certified Vehicles Manufactured Before 1967? | Yes, but must meet tailpipe emission standards for year of vehicle. |
| C.A.R.B. Exempt for Foreign Vehicles Manufactured Before 1967? | Yes, but must meet tailpipe emission standards for year of vehicle. |
| C.A.R.B. Exempt for On-Road Vehicles? | No |
| C.A.R.B. Exempt for Racing and Off-Road Only Vehicles? | Yes, but must be a race/competition only vehicle. |
| C.A.R.B. Exemption Reason | N/A |
| California Proposition 65 | WARNING: Cancer and Reproductive Harm P65Warnings.ca.gov |
| Cam and Lifter Kit Upgrade | CL11-318-4 |
| Cam Type | Hydraulic Flat Tappet |
| Camshaft Gear Attachment | 3-Bolt |
| Camshaft Material | Cast Iron |
| Camshaft Series | Magnum |
| Description_ASM | Chevrolet GEN IV 396-454 Big Block Engines Originally Equipped with Flat Tappet Camshafts |
| Description_DEF | Engine Camshaft |
| Description_DES | Magnum 236/236 Hydraulic Flat Cam for Chevrolet Big Block 396-454 |
| Description_EXT | Needs 9.5:1 compression, 2800+ stall, headers and lower gears. Choppy idle. |
| Description_INV | Magnum 236/236 Hyd Flat Cam BBC 396-454 |
| Description_KEY | Chevelle, Camaro, Corvette, Stingray, Silverado, C10, Firebird, Chevrolet, Big Block, Chevy, BBC, 454, 427, 502, 396, Caprice, Malibu, Impala, Nova, Monte Carlo, S10, 572 |
| Description_MKT | An older member of the COMP Cams grind family, the Magnum series of camshafts offers excellent performance gains over stock without the added wear and tear associated with more aggressive camshafts. Ideal for use with higher compression ratio engines that need to bleed off compression, the magnum series performs its best when static compression is 9.5:1+ and with an aftermarket higher stall torque converter. Delivering excellent high RPM power, while not needlessly abusing valve train parts, the Magnum grind family is the perfect choice for performance engines equipped with mild ratio rocker arms and traditional performance valve springs. |
| Description_SHO | Mag 236/236 HFT BBC |
| Description_SHP | None |
| Engine Family | Chevrolet 396-454 c.i. 8 Cylinder (1967-1996) |
| Exhaust Duration at .050 inch Lift | 236 |
| Exhaust Valve Lift | 0.556 |
| Grind Number | 286H |
| height | 2.7 |
| Intake Duration at .050 Inch Lift | 236 |
| Intake Valve Lift | 0.556 |
| K-Kit Upgrade | K11-318-4 |
| length | 23.3 |
| Lifter Type | Hydraulic Flat Tappet |
| Lifters Included | No |
| Lobe Separation | 110 |
| LTL | N |
| SK-Kit Upgrade | SK11-318-4 |
| Title | Magnum 236/236 Hydraulic Flat Cam for Chevrolet Big Block 396-454 |
| Usage | Street/Strip |
| Valve Springs Required | Yes |
| weight | 10.053 |
| width | 3.0 |
