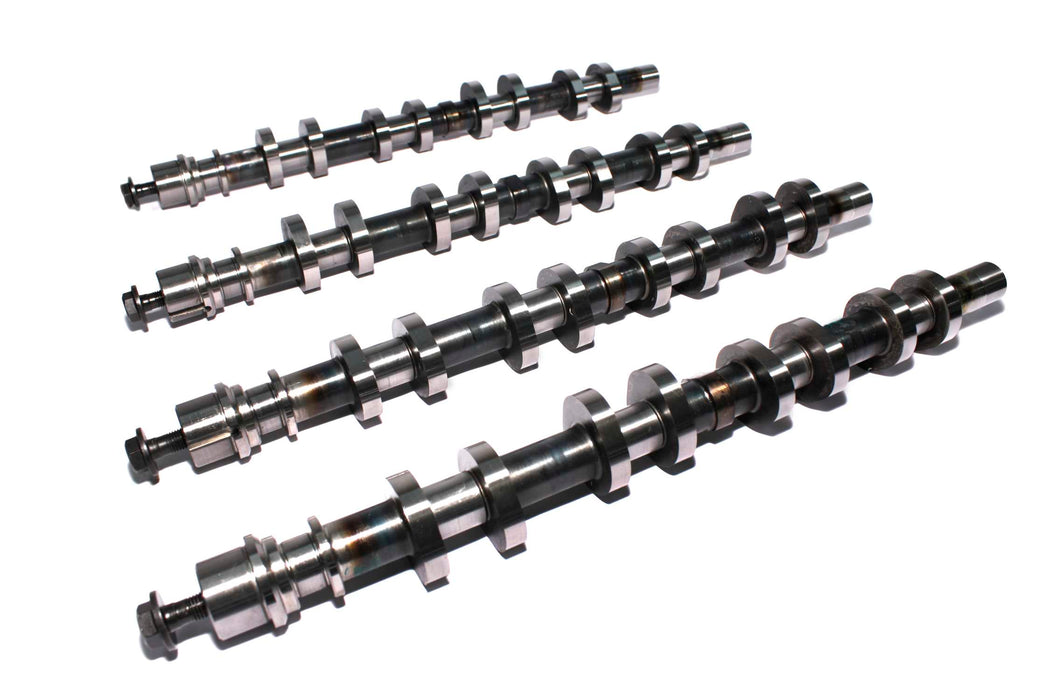

COMP Cams 106500 Xtreme XE-R 242/240 Hydraulic Roller Cams for Ford 4.6/5.4/5.8L Modular 4 Valve
by COMP Cams
SKU ds_BDQQ_106500
Proudly Canadian
Albertan Owned
Supporting Canadian truckers since 2018
Secure Payments
Financing Available
SSL encrypted checkout with financing options
Trusted Brands
Top-Quality Suppliers
Authorized dealer for Fox, Bilstein, BFGoodrich & 50+ brands
Sold out
Original price
$2,955.44
-
Original price
$2,955.44
Original price
$2,955.44
$2,955.44
$2,955.44
-
$2,955.44
Current price
$2,955.44
Availability:
Out of stock
Description
Race or limited street use. Cams require a larger throttle body, mass air, injectors, exhaust upgrades and requires custom tuning. Automatics need a 3000+ stall. Very rough idle.
Resources
Installation InstructionsResources
Installation InstructionsSpecifications
| Advertised Exhaust Duration | 275 |
| Advertised Intake Duration | 277 |
| Amazon ASIN | B000P5B52C |
| Assembly Lubricant Included | No |
| Basic Operating RPM Range | 2,200-6,500 |
| C.A.R.B. E.O. Number | N/A |
| C.A.R.B. Exempt for California Certified Vehicles Manufactured Before 1965? | Yes, but must meet tailpipe emission standards for year of vehicle. |
| C.A.R.B. Exempt for Federally Certified Vehicles Manufactured Before 1967? | Yes, but must meet tailpipe emission standards for year of vehicle. |
| C.A.R.B. Exempt for Foreign Vehicles Manufactured Before 1967? | Yes, but must meet tailpipe emission standards for year of vehicle. |
| C.A.R.B. Exempt for On-Road Vehicles? | No |
| C.A.R.B. Exempt for Racing and Off-Road Only Vehicles? | Yes, but must be a race/competition only vehicle. |
| C.A.R.B. Exemption Reason | N/A |
| California Proposition 65 | WARNING: Cancer and Reproductive Harm P65Warnings.ca.gov |
| Cam Type | Hydraulic Roller Swinging Follower |
| Camshaft Gear Attachment | 1-Bolt |
| Camshaft Material | Billet Steel |
| Camshaft Series | Xtreme XE-R |
| Description_DEF | Engine Camshaft |
| Description_DES | Xtreme XE-R 242/240 Hydraulic Roller Cams for Ford 4.6/5.4/5.8L Modular 4 Valve |
| Description_EXT | Race or limited street use. Cams require a larger throttle body, mass air, injectors, exhaust upgrades and requires custom tuning. Automatics need a 3000+ stall. Very rough idle. |
| Description_INV | XE-R 242/240 Hyd Roller Cam Ford Mod 4-V |
| Description_KEY | 4-Valve |
| Description_KEY | 4V |
| Description_KEY | Ford |
| Description_KEY | Mercury |
| Description_KEY | Modular |
| Description_KEY | Mustang |
| Description_KEY | Mustang GT |
| Description_KEY | SN95 |
| Description_SHO | XE-R 242/240 Mod4V |
| Description_SHP | None |
| Engine Family | Ford 4.6L, 5.4L and 5.8L DOHC Modular 4 Valve 8 Cylinder (1993+) |
| Exhaust Duration at .050 inch Lift | 240 |
| Exhaust Valve Lift | 0.45 |
| Grind Number | XE278AH-114 |
| height | 6.4 |
| Intake Duration at .050 Inch Lift | 242 |
| Intake Valve Lift | 0.475 |
| length | 25.6 |
| Lifter Type | Hydraulic Roller Swinging Follower |
| Lifters Included | No |
| Lobe Separation | 114 |
| LTL | N |
| Title | Xtreme XE-R 242/240 Hydraulic Roller Cams for Ford 4.6/5.4/5.8L Modular 4 Valve |
| Usage | Street/Performance |
| Valve Springs Required | Yes |
| weight | 28.616 |
| width | 6.5 |
