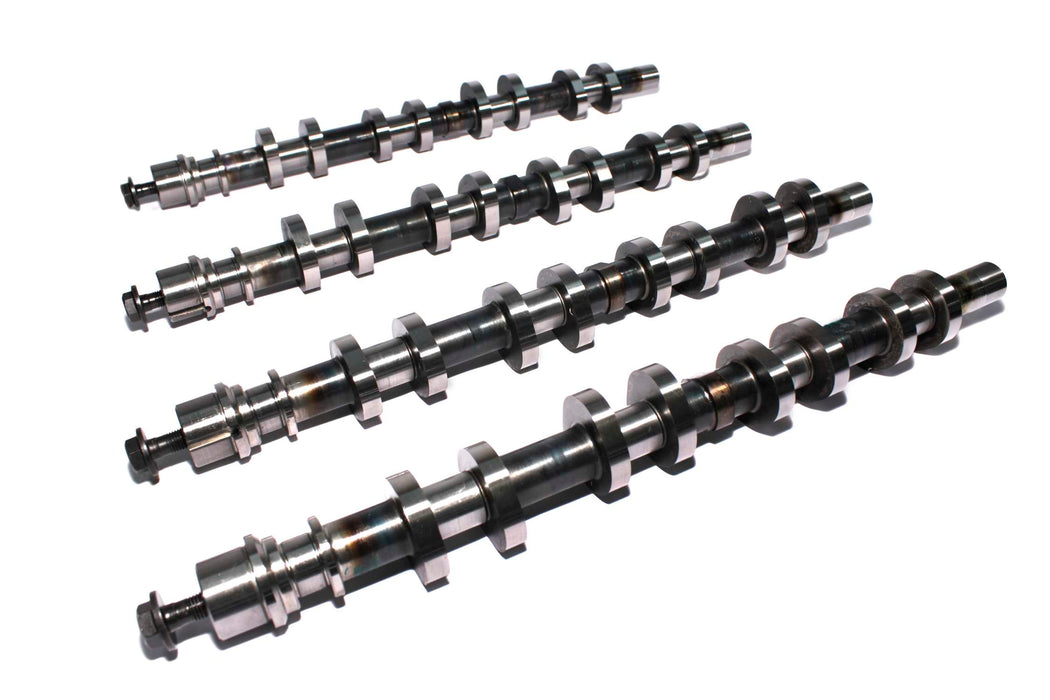

COMP Cams 106460 XE-R S-Charged/N2O 238/240 Hydraulic Roller Cams Ford 4.6/5.4/5.8 Modular 4-V
by COMP Cams
SKU ds_BDQQ_106460
Proudly Canadian
Albertan Owned
Supporting Canadian truckers since 2018
Secure Payments
Financing Available
SSL encrypted checkout with financing options
Trusted Brands
Top-Quality Suppliers
Authorized dealer for Fox, Bilstein, BFGoodrich & 50+ brands
Original price
$3,139.21
-
Original price
$3,139.21
Original price
$3,139.21
$3,139.21
$3,139.21
-
$3,139.21
Current price
$3,139.21
Availability:
Only 2 left!
Description
Max strip and street cams for centrifugal supercharged or nitrous engines. Large gains in power with larger throttle body, mass air, injectors and exhaust upgrades. Requires lower gears and custom tuning. Use a 2500+ stall. Rough idle.
Resources
Installation InstructionsResources
Installation InstructionsSpecifications
| Advertised Exhaust Duration | 275 |
| Advertised Intake Duration | 273 |
| Amazon ASIN | B000P5G4NM |
| Assembly Lubricant Included | No |
| Basic Operating RPM Range | 2,000-6,400 |
| C.A.R.B. E.O. Number | N/A |
| C.A.R.B. Exempt for California Certified Vehicles Manufactured Before 1965? | Yes, but must meet tailpipe emission standards for year of vehicle. |
| C.A.R.B. Exempt for Federally Certified Vehicles Manufactured Before 1967? | Yes, but must meet tailpipe emission standards for year of vehicle. |
| C.A.R.B. Exempt for Foreign Vehicles Manufactured Before 1967? | Yes, but must meet tailpipe emission standards for year of vehicle. |
| C.A.R.B. Exempt for On-Road Vehicles? | No |
| C.A.R.B. Exempt for Racing and Off-Road Only Vehicles? | Yes, but must be a race/competition only vehicle. |
| C.A.R.B. Exemption Reason | N/A |
| California Proposition 65 | WARNING: Cancer and Reproductive Harm P65Warnings.ca.gov |
| Cam Type | Hydraulic Roller Swinging Follower |
| Camshaft Gear Attachment | 1-Bolt |
| Camshaft Material | Billet Steel |
| Camshaft Series | XE-R Supercharged and Nitrous |
| Description_DEF | Engine Camshaft |
| Description_DES | XE-R S-Charged/N2O 238/240 Hydraulic Roller Cams Ford 4.6/5.4/5.8 Modular 4-V |
| Description_EXT | Max strip and street cams for centrifugal supercharged or nitrous engines. Large gains in power with larger throttle body, mass air, injectors and exhaust upgrades. Requires lower gears and custom tuning. Use a 2500+ stall. Rough idle. |
| Description_INV | XER SC/N2O 238/240 H-Rlr Cam Ford Mod 4V |
| Description_KEY | 4-Valve |
| Description_KEY | 4V |
| Description_KEY | Ford |
| Description_KEY | Mercury |
| Description_KEY | Modular |
| Description_KEY | Mustang |
| Description_KEY | Mustang GT |
| Description_KEY | SN95 |
| Description_SHO | XERSC 238/240 Ford4V |
| Description_SHP | None |
| Engine Family | Ford 4.6L, 5.4L and 5.8L DOHC Modular 4 Valve 8 Cylinder (1993+) |
| Exhaust Duration at .050 inch Lift | 240 |
| Exhaust Valve Lift | 0.45 |
| Grind Number | XE274BH-116 |
| height | 6.12 |
| Intake Duration at .050 Inch Lift | 238 |
| Intake Valve Lift | 0.475 |
| length | 24.5 |
| Lifter Type | Hydraulic Roller Swinging Follower |
| Lifters Included | No |
| Lobe Separation | 116 |
| LTL | N |
| Title | XE-R S-Charged/N2O 238/240 Hydraulic Roller Cams Ford 4.6/5.4/5.8 Modular 4-V |
| Usage | Street/Performance |
| Valve Springs Required | Yes |
| weight | 28.2 |
| width | 6.12 |
