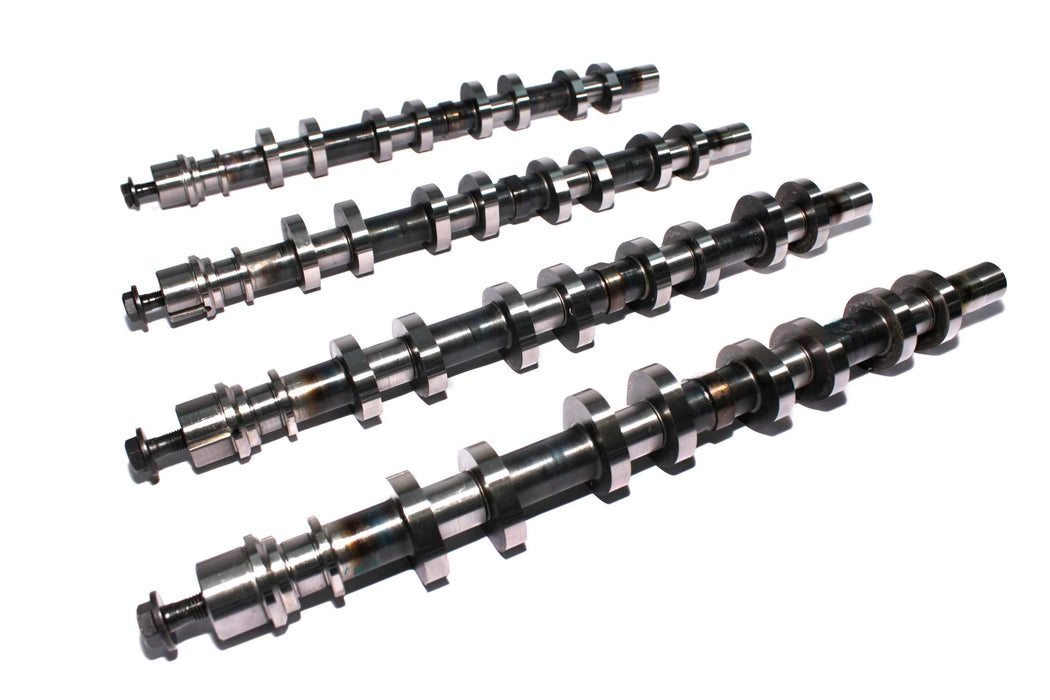

COMP Cams 106260 XE-R S-Charged/N2O 222/224 Hydraulic Roller Cams Ford 4.6/5.4/5.8 Modular 4-V
by COMP Cams
SKU ds_BDQQ_106260
Proudly Canadian
Albertan Owned
Supporting Canadian truckers since 2018
Secure Payments
Financing Available
SSL encrypted checkout with financing options
Trusted Brands
Top-Quality Suppliers
Authorized dealer for Fox, Bilstein, BFGoodrich & 50+ brands
Sold out
Original price
$2,955.44
-
Original price
$2,955.44
Original price
$2,955.44
$2,955.44
$2,955.44
-
$2,955.44
Current price
$2,955.44
Availability:
Out of stock
Description
Street performance with excellent torque. Works well in supercharged or nitrous engines. Requires custom tuning.
Resources
Installation InstructionsResources
Installation InstructionsSpecifications
| Advertised Exhaust Duration | 259 |
| Advertised Intake Duration | 257 |
| Amazon ASIN | B000P5G4L4 |
| Assembly Lubricant Included | No |
| Basic Operating RPM Range | 1,200-5,800 |
| C.A.R.B. E.O. Number | N/A |
| C.A.R.B. Exempt for California Certified Vehicles Manufactured Before 1965? | Yes, but must meet tailpipe emission standards for year of vehicle. |
| C.A.R.B. Exempt for Federally Certified Vehicles Manufactured Before 1967? | Yes, but must meet tailpipe emission standards for year of vehicle. |
| C.A.R.B. Exempt for Foreign Vehicles Manufactured Before 1967? | Yes, but must meet tailpipe emission standards for year of vehicle. |
| C.A.R.B. Exempt for On-Road Vehicles? | No |
| C.A.R.B. Exempt for Racing and Off-Road Only Vehicles? | Yes, but must be a race/competition only vehicle. |
| C.A.R.B. Exemption Reason | N/A |
| California Proposition 65 | WARNING: Cancer and Reproductive Harm P65Warnings.ca.gov |
| Cam Type | Hydraulic Roller Swinging Follower |
| Camshaft Gear Attachment | 1-Bolt |
| Camshaft Material | Billet Steel |
| Camshaft Series | XE-R Supercharged and Nitrous |
| Description_ASM | Ford: GT 05 - 06 5.4 L Engine, Ford: Mustang 96 - 04 4.6 L Engine, Ford: Mustang 00 - 12 5.4 L Engine, Ford: Mustang 13 - 14 5.8 L Engine, Lincoln: Aviator 03 - 05 4.6 L Engine, Lincoln: Blackwood 02 - 03 5.4 L Engine, Lincoln: Continental 95 - 02 4.6 L Engine, Lincoln: Mark VIII 93 - 98 4.6 L Engine, Lincoln: Navigator 99 - 05 5.4 L Engine, Mercury: Marauder 03 - 04 4.6 L Engine, Panoz: AIV Roadster 99 - 00 4.6 L Engine, Panoz: Esperante 01 - 07 4.6 L Engine, Qvale: Mangusta 01 - 02 4.6 L Engine |
| Description_DEF | Engine Camshaft |
| Description_DES | XE-R S-Charged/N2O 222/224 Hydraulic Roller Cams Ford 4.6/5.4/5.8 Modular 4-V |
| Description_EXT | Street performance with excellent torque. Works well in supercharged or nitrous engines. Requires custom tuning. |
| Description_FAB | Street performance with excellent torque. |
| Description_INV | XER SC/N2O 222/224 H-Rlr Cam Ford Mod 4V |
| Description_KEY | 4-Valve |
| Description_KEY | 4V |
| Description_KEY | Ford |
| Description_KEY | Mercury |
| Description_KEY | Modular |
| Description_KEY | Mustang |
| Description_KEY | Mustang GT |
| Description_KEY | SN95 |
| Description_SHO | XERSC 222/224 Ford4V |
| Description_SHP | None |
| Engine Family | Ford 4.6L, 5.4L and 5.8L DOHC Modular 4 Valve 8 Cylinder (1993+) |
| Exhaust Duration at .050 inch Lift | 224 |
| Exhaust Valve Lift | 0.45 |
| Grind Number | XE258BH-116 |
| height | 6.12 |
| Intake Duration at .050 Inch Lift | 222 |
| Intake Valve Lift | 0.475 |
| length | 24.5 |
| Lifter Type | Hydraulic Roller Swinging Follower |
| Lifters Included | No |
| Lobe Separation | 116 |
| LTL | N |
| Title | XE-R S-Charged/N2O 222/224 Hydraulic Roller Cams Ford 4.6/5.4/5.8 Modular 4-V |
| Usage | Street/Performance |
| Valve Springs Required | Yes |
| weight | 28.2 |
| width | 6.12 |
