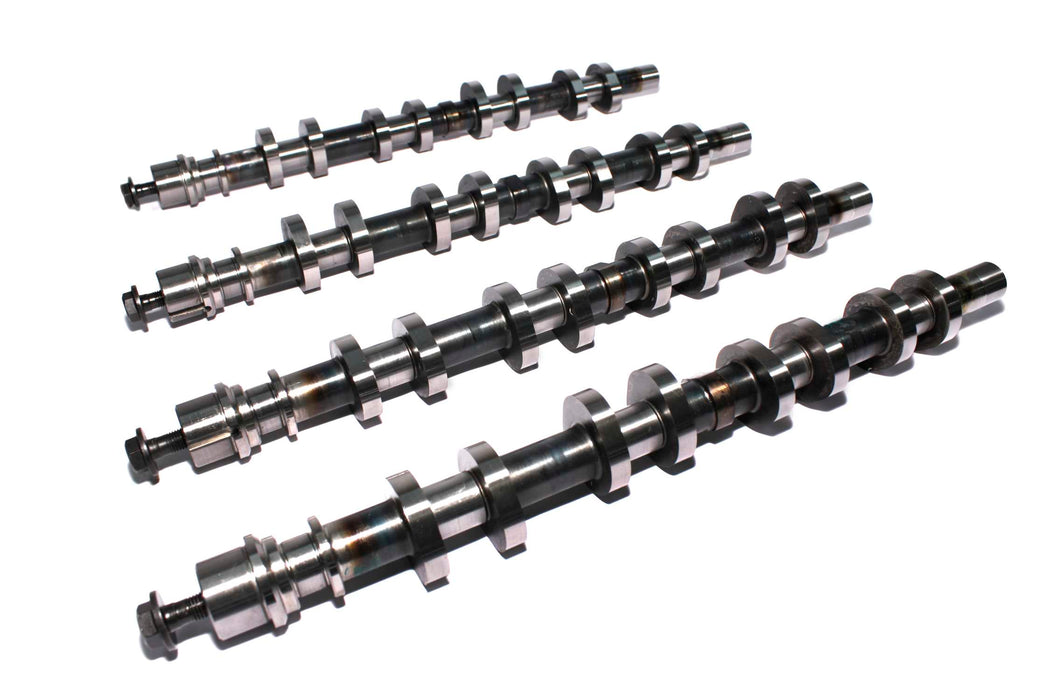

COMP Cams 106160 Xtreme RPM 230/230 Hydraulic Roller Cams for Ford 4.6/5.4/5.8L Modular 4 Valve
by COMP Cams
SKU ds_BDQQ_106160
Proudly Canadian
Albertan Owned
Supporting Canadian truckers since 2018
Secure Payments
Financing Available
SSL encrypted checkout with financing options
Trusted Brands
Top-Quality Suppliers
Authorized dealer for Fox, Bilstein, BFGoodrich & 50+ brands
Sold out
Original price
$2,955.44
-
Original price
$2,955.44
Original price
$2,955.44
$2,955.44
$2,955.44
-
$2,955.44
Current price
$2,955.44
Availability:
Out of stock
Description
Serious street effort with maximum power gains in mid to upper RPM. Requires computer modifications and lower gears. Automatic cars need a 2000+ stall. Requires custom tuning. Mild rough idle.
Resources
Installation InstructionsResources
Installation InstructionsSpecifications
| Advertised Exhaust Duration | 265 |
| Advertised Intake Duration | 265 |
| Amazon ASIN | B001G78O68 |
| Assembly Lubricant Included | No |
| Basic Operating RPM Range | 1,500-6,000 |
| C.A.R.B. E.O. Number | N/A |
| C.A.R.B. Exempt for California Certified Vehicles Manufactured Before 1965? | Yes, but must meet tailpipe emission standards for year of vehicle. |
| C.A.R.B. Exempt for Federally Certified Vehicles Manufactured Before 1967? | Yes, but must meet tailpipe emission standards for year of vehicle. |
| C.A.R.B. Exempt for Foreign Vehicles Manufactured Before 1967? | Yes, but must meet tailpipe emission standards for year of vehicle. |
| C.A.R.B. Exempt for On-Road Vehicles? | No |
| C.A.R.B. Exempt for Racing and Off-Road Only Vehicles? | Yes, but must be a race/competition only vehicle. |
| C.A.R.B. Exemption Reason | N/A |
| California Proposition 65 | WARNING: Cancer and Reproductive Harm P65Warnings.ca.gov |
| Cam Type | Hydraulic Roller Swinging Follower |
| Camshaft Gear Attachment | 1-Bolt |
| Camshaft Material | Billet Steel |
| Camshaft Series | Xtreme RPM |
| Description_DEF | Engine Camshaft |
| Description_DES | Xtreme RPM 230/230 Hydraulic Roller Cams for Ford 4.6/5.4/5.8L Modular 4 Valve |
| Description_EXT | Serious street effort with maximum power gains in mid to upper RPM. Requires computer modifications and lower gears. Automatic cars need a 2000+ stall. Requires custom tuning. Mild rough idle. |
| Description_INV | X-RPM 230/230 Hyd Rlr Cam Ford Mod 4-V |
| Description_KEY | 4-Valve |
| Description_KEY | 4V |
| Description_KEY | Ford |
| Description_KEY | Mercury |
| Description_KEY | Modular |
| Description_KEY | Mustang |
| Description_KEY | Mustang GT |
| Description_KEY | SN95 |
| Description_SHO | XRPM 230/230Mod4V |
| Description_SHP | None |
| Engine Family | Ford 4.6L, 5.4L and 5.8L DOHC Modular 4 Valve 8 Cylinder (1993+) |
| Exhaust Duration at .050 inch Lift | 230 |
| Exhaust Valve Lift | 0.425 |
| Grind Number | XE266BH-116 |
| height | 6.12 |
| Intake Duration at .050 Inch Lift | 230 |
| Intake Valve Lift | 0.425 |
| length | 24.5 |
| Lifter Type | Hydraulic Roller Swinging Follower |
| Lifters Included | No |
| Lobe Separation | 116 |
| LTL | N |
| Title | Xtreme RPM 230/230 Hydraulic Roller Cams for Ford 4.6/5.4/5.8L Modular 4 Valve |
| Usage | Street/Performance |
| Valve Springs Required | Yes |
| weight | 28.27 |
| width | 6.12 |
