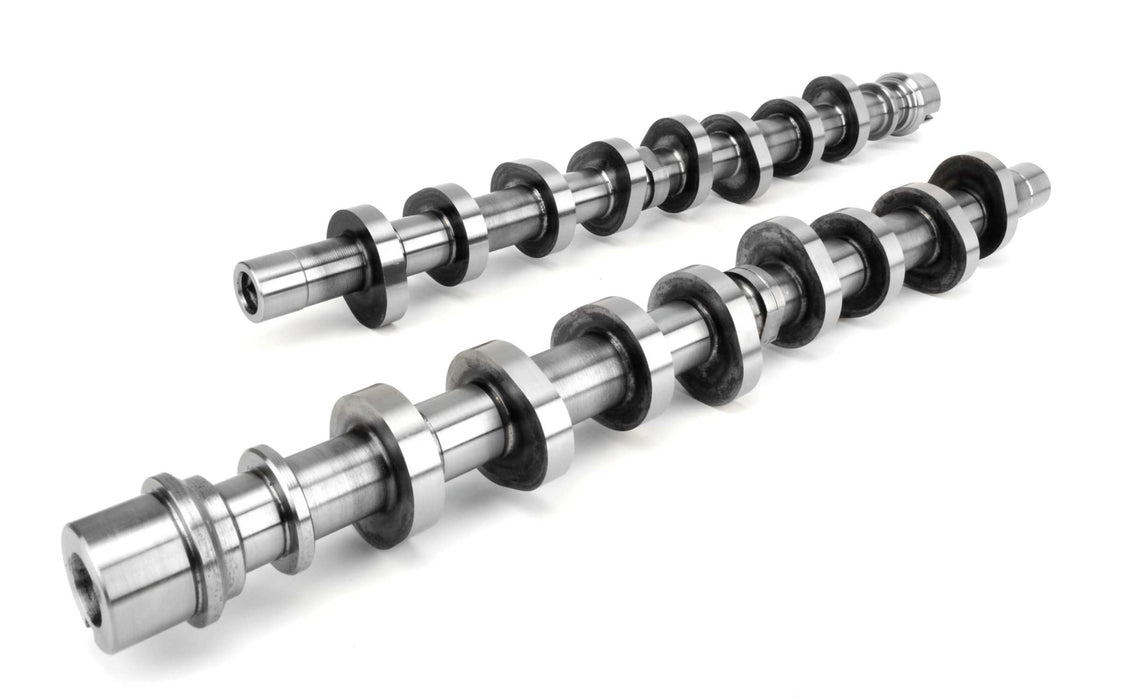

COMP Cams 102700 XE 242/246 Hydraulic Roller Cams Ford 4.6/5.4L Modular 2 Valve w/ PI Heads
by COMP Cams
SKU ds_BDQQ_102700
Proudly Canadian
Albertan Owned
Supporting Canadian truckers since 2018
Secure Payments
Financing Available
SSL encrypted checkout with financing options
Trusted Brands
Top-Quality Suppliers
Authorized dealer for Fox, Bilstein, BFGoodrich & 50+ brands
Sold out
Original price
$1,251.06
-
Original price
$1,251.06
Original price
$1,251.06
$1,251.06
$1,251.06
-
$1,251.06
Current price
$1,251.06
Availability:
Out of stock
Description
Street/strip, needs higher gear ratio, 2400+ stall. Intake, exhaust, requires custom tuning. Rough idle.
Resources
Installation InstructionsResources
Installation InstructionsSpecifications
| Advertised Exhaust Duration | 282 |
| Advertised Intake Duration | 278 |
| Amazon ASIN | B001NET1P2 |
| Assembly Lubricant Included | No |
| Basic Operating RPM Range | 2,200-6,200 |
| C.A.R.B. E.O. Number | N/A |
| C.A.R.B. Exempt for California Certified Vehicles Manufactured Before 1965? | Yes, but must meet tailpipe emission standards for year of vehicle. |
| C.A.R.B. Exempt for Federally Certified Vehicles Manufactured Before 1967? | Yes, but must meet tailpipe emission standards for year of vehicle. |
| C.A.R.B. Exempt for Foreign Vehicles Manufactured Before 1967? | Yes, but must meet tailpipe emission standards for year of vehicle. |
| C.A.R.B. Exempt for On-Road Vehicles? | No |
| C.A.R.B. Exempt for Racing and Off-Road Only Vehicles? | Yes, but must be a race/competition only vehicle. |
| C.A.R.B. Exemption Reason | N/A |
| California Proposition 65 | WARNING: Cancer and Reproductive Harm P65Warnings.ca.gov |
| Cam Type | Hydraulic Roller Finger Follower |
| Camshaft Gear Attachment | 1-Bolt |
| Camshaft Material | Billet Steel |
| Camshaft Series | Xtreme Energy |
| Description_DEF | Engine Camshaft |
| Description_DES | XE 242/246 Hydraulic Roller Cams Ford 4.6/5.4L Modular 2 Valve w/ PI Heads |
| Description_EXT | Street/strip, needs higher gear ratio, 2400+ stall. Intake, exhaust, requires custom tuning. Rough idle. |
| Description_INV | XE 242/246 H-Rlr Cam Ford Mod 2V PI Head |
| Description_KEY | 2-Valve |
| Description_KEY | 2V |
| Description_KEY | Ford |
| Description_KEY | Mercury |
| Description_KEY | Modular |
| Description_KEY | Mustang |
| Description_KEY | Mustang GT |
| Description_KEY | SN95 |
| Description_SHO | XE 242/246MOD2VPI |
| Description_SHP | None |
| Engine Family | Ford 4.6L and 5.4L SOHC Modular 2 Valve 8 Cylinder (1991+) |
| Exhaust Duration at .050 inch Lift | 246 |
| Exhaust Valve Lift | 0.55 |
| Grind Number | XE278AH |
| height | 3.0 |
| Intake Duration at .050 Inch Lift | 242 |
| Intake Valve Lift | 0.55 |
| length | 25.0 |
| Lifter Type | Hydraulic Roller Finger Follower |
| Lifters Included | No |
| Lobe Separation | 113 |
| LTL | N |
| Title | XE 242/246 Hydraulic Roller Cams Ford 4.6/5.4L Modular 2 Valve w/ PI Heads |
| Usage | Street/Performance |
| Valve Springs Required | Yes |
| weight | 12.36 |
| width | 6.0 |
