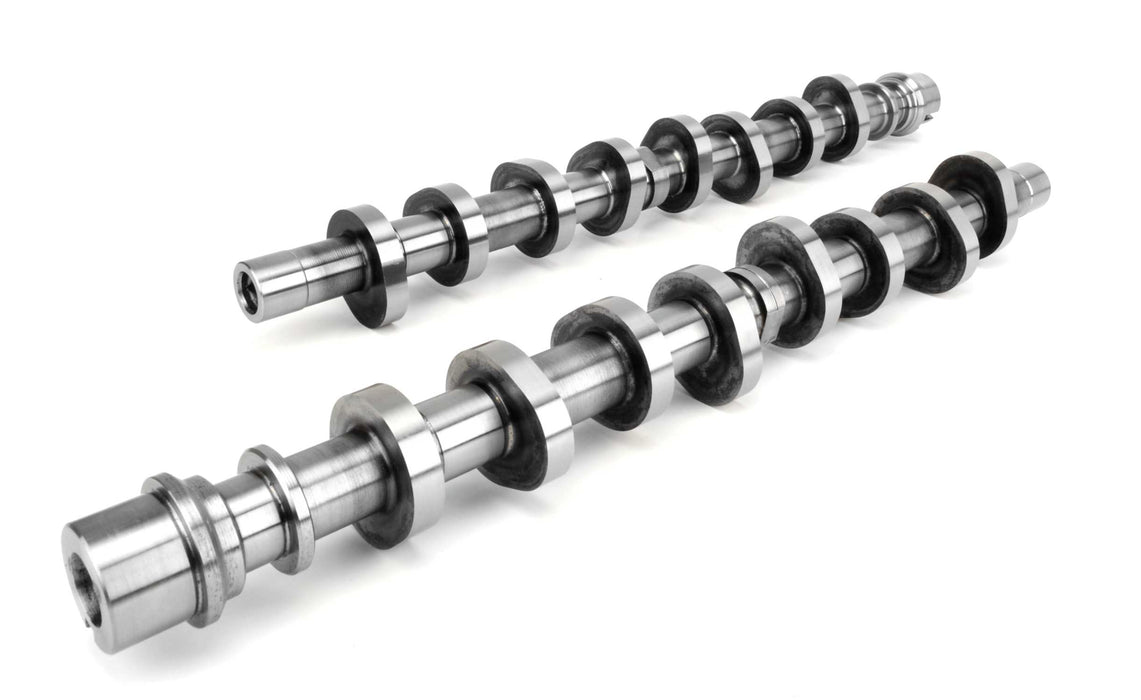

COMP Cams 102535 Tri-Power Xtreme 224/230 Cams for Ford 4.6/5.4L Modular 2 Valve
by COMP Cams
SKU ds_BDQQ_102535
Proudly Canadian
Albertan Owned
Supporting Canadian truckers since 2018
Secure Payments
Financing Available
SSL encrypted checkout with financing options
Trusted Brands
Top-Quality Suppliers
Authorized dealer for Fox, Bilstein, BFGoodrich & 50+ brands
Sold out
Original price
$1,153.85
-
Original price
$1,153.85
Original price
$1,153.85
$1,153.85
$1,153.85
-
$1,153.85
Current price
$1,153.85
Availability:
Out of stock
Description
Optimized combination for power and torque with acceptable fuel economy for daily driver or highway cruiser. Requires tuning.
Resources
Installation InstructionsResources
Installation InstructionsSpecifications
| Advertised Exhaust Duration | 267 |
| Advertised Intake Duration | 261 |
| Amazon ASIN | B001G79W82 |
| Assembly Lubricant Included | No |
| Basic Operating RPM Range | 1,200-5,200 |
| C.A.R.B. E.O. Number | N/A |
| C.A.R.B. Exempt for California Certified Vehicles Manufactured Before 1965? | Yes, but must meet tailpipe emission standards for year of vehicle. |
| C.A.R.B. Exempt for Federally Certified Vehicles Manufactured Before 1967? | Yes, but must meet tailpipe emission standards for year of vehicle. |
| C.A.R.B. Exempt for Foreign Vehicles Manufactured Before 1967? | Yes, but must meet tailpipe emission standards for year of vehicle. |
| C.A.R.B. Exempt for On-Road Vehicles? | No |
| C.A.R.B. Exempt for Racing and Off-Road Only Vehicles? | Yes, but must be a race/competition only vehicle. |
| C.A.R.B. Exemption Reason | N/A |
| California Proposition 65 | WARNING: Cancer and Reproductive Harm P65Warnings.ca.gov |
| Cam Type | Hydraulic Roller Finger Follower |
| Camshaft Gear Attachment | 1-Bolt |
| Camshaft Material | Billet Steel |
| Camshaft Series | Tri-Power Xtreme |
| Description_DEF | Engine Camshaft |
| Description_DES | Tri-Power Xtreme 224/230 Cams for Ford 4.6/5.4L Modular 2 Valve |
| Description_EXT | Optimized combination for power and torque with acceptable fuel economy for daily driver or highway cruiser. Requires tuning. |
| Description_INV | Tri-PowerX 224/230 Ford 4.6/5.4L Mod 2-V |
| Description_KEY | 2-Valve |
| Description_KEY | 2V |
| Description_KEY | Ford |
| Description_KEY | Mercury |
| Description_KEY | Modular |
| Description_KEY | Mustang |
| Description_KEY | Mustang GT |
| Description_KEY | SN95 |
| Description_SHO | TPX 224/230Mod2V |
| Description_SHP | None |
| Engine Family | Ford 4.6L and 5.4L SOHC Modular 2 Valve 8 Cylinder (1991+) |
| Exhaust Duration at .050 inch Lift | 230 |
| Exhaust Valve Lift | 0.495 |
| Grind Number | TPX262HR-14 |
| height | 3.22 |
| Intake Duration at .050 Inch Lift | 224 |
| Intake Valve Lift | 0.495 |
| length | 25.66 |
| Lifter Type | Hydraulic Roller Finger Follower |
| Lifters Included | No |
| Lobe Separation | 114 |
| LTL | N |
| Title | Tri-Power Xtreme 224/230 Cams for Ford 4.6/5.4L Modular 2 Valve |
| Usage | Street/Performance |
| Valve Springs Required | Yes |
| weight | 13.05 |
| width | 6.14 |
