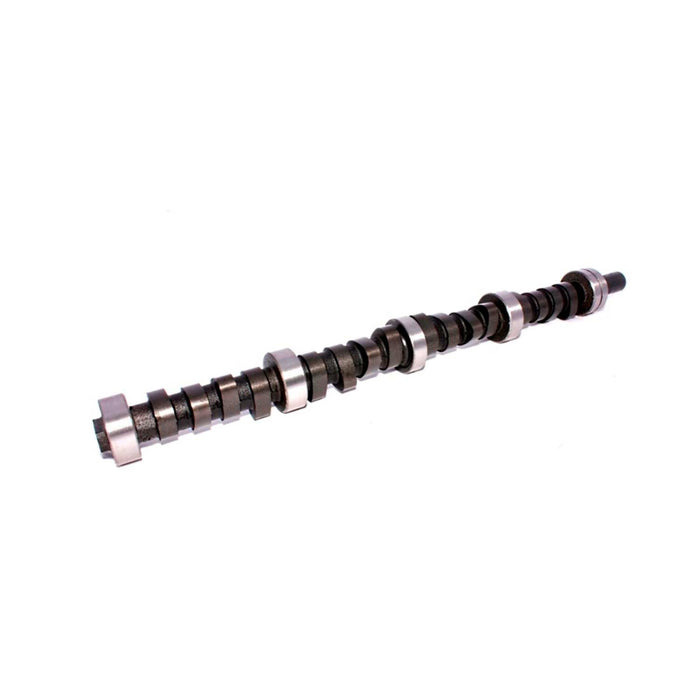

COMP Cams 10-603-5 Mutha' Thumpr 235/249 Hydraulic Flat Cam for AMC 290-401
by COMP Cams
SKU ds_BDQQ_10-603-5
Proudly Canadian
Albertan Owned
Supporting Canadian truckers since 2018
Secure Payments
Financing Available
SSL encrypted checkout with financing options
Trusted Brands
Top-Quality Suppliers
Authorized dealer for Fox, Bilstein, BFGoodrich & 50+ brands
Sold out
Original price
$526.45
-
Original price
$526.45
Original price
$526.45
$526.45
$526.45
-
$526.45
Current price
$526.45
Availability:
Out of stock
Description
High performance street/strip, needs 9:1 compression, 2500+ stall, intake, gears and headers, rough idle.
Resources
Installation InstructionsResources
Installation InstructionsSpecifications
| Advertised Exhaust Duration | 304 |
| Advertised Intake Duration | 287 |
| Amazon ASIN | B005H89S94 |
| Assembly Lubricant Included | Yes |
| Basic Operating RPM Range | 2,200-6,100 |
| C.A.R.B. E.O. Number | N/A |
| C.A.R.B. Exempt for California Certified Vehicles Manufactured Before 1965? | Yes, but must meet tailpipe emission standards for year of vehicle. |
| C.A.R.B. Exempt for Federally Certified Vehicles Manufactured Before 1967? | Yes, but must meet tailpipe emission standards for year of vehicle. |
| C.A.R.B. Exempt for Foreign Vehicles Manufactured Before 1967? | Yes, but must meet tailpipe emission standards for year of vehicle. |
| C.A.R.B. Exempt for On-Road Vehicles? | No |
| C.A.R.B. Exempt for Racing and Off-Road Only Vehicles? | Yes, but must be a race/competition only vehicle. |
| C.A.R.B. Exemption Reason | N/A |
| California Proposition 65 | WARNING: Cancer and Reproductive Harm P65Warnings.ca.gov |
| Cam and Lifter Kit Upgrade | CL10-603-5 |
| Cam Type | Hydraulic Flat Tappet |
| Camshaft Gear Attachment | 1-Bolt |
| Camshaft Material | Cast Iron |
| Camshaft Series | Thumpr |
| Description_ASM | Fits AMC 290, 304, 343, 360, 390 and 401 |
| Description_DEF | Engine Camshaft |
| Description_DES | Mutha' Thumpr 235/249 Hydraulic Flat Cam for AMC 290-401 |
| Description_EXT | High performance street/strip, needs 9:1 compression, 2500+ stall, intake, gears and headers, rough idle. |
| Description_INV | M-Thumpr 235/249 H-Flat Cam AMC 290-401 |
| Description_KEY | 290 |
| Description_KEY | 304 |
| Description_KEY | 327 |
| Description_KEY | 343 |
| Description_KEY | 360 |
| Description_KEY | 390 |
| Description_KEY | 4.0 |
| Description_KEY | 5.9 |
| Description_KEY | AM General |
| Description_KEY | AMC |
| Description_KEY | American Motors |
| Description_KEY | AMX |
| Description_KEY | Cherokee |
| Description_KEY | Chrysler |
| Description_KEY | Comanche |
| Description_KEY | Eagle |
| Description_KEY | Grand Wagoneer |
| Description_KEY | Javelin |
| Description_KEY | Jeep |
| Description_KEY | JK |
| Description_KEY | Nash |
| Description_KEY | Rambler |
| Description_KEY | Rebel |
| Description_KEY | Wagoneer |
| Description_KEY | Wrangler |
| Description_KEY | XJ |
| Description_KEY | ZJ |
| Description_SHO | MT 235/249 HFTAMC |
| Description_SHP | None |
| Engine Family | American Motors 290-401 c.i. 8 Cylinder (1966-1991) |
| Exhaust Duration at .050 inch Lift | 249 |
| Exhaust Valve Lift | 0.486 |
| Grind Number | 287TH7 |
| height | 2.67 |
| Intake Duration at .050 Inch Lift | 235 |
| Intake Valve Lift | 0.5 |
| K-Kit Upgrade | K10-603-5 |
| length | 23.3 |
| Lifter Type | Hydraulic Flat Tappet |
| Lifters Included | No |
| Lobe Separation | 107 |
| LTL | N |
| Title | Mutha' Thumpr 235/249 Hydraulic Flat Cam for AMC 290-401 |
| Usage | Street/Strip |
| Valve Springs Required | Yes |
| weight | 10.5 |
| width | 2.91 |
