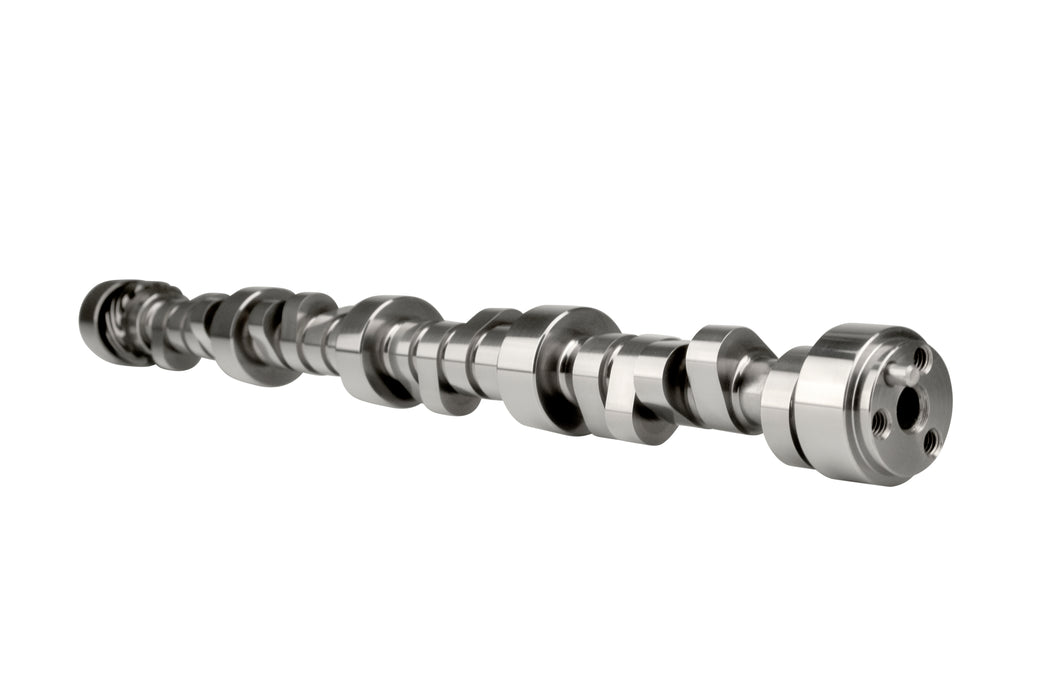

COMP Cams 08-696-11 Hustler 603/604 Crate Engine Hydraulic Roller Stage 1 Camshaft
by COMP Cams
SKU ds_BDQQ_08-696-11
Proudly Canadian
Albertan Owned
Supporting Canadian truckers since 2018
Secure Payments
Financing Available
SSL encrypted checkout with financing options
Trusted Brands
Top-Quality Suppliers
Authorized dealer for Fox, Bilstein, BFGoodrich & 50+ brands
Sold out
Original price
$779.76
-
Original price
$779.76
Original price
$779.76
$779.76
$779.76
-
$779.76
Current price
$779.76
Availability:
Out of stock
Description
"Stealth" cam, has idle sound of OE camshaft. All specs pushed beyond legal limits. Thorough tech inspection required to be detected.
Resources
Installation InstructionsResources
Installation InstructionsSpecifications
| Advertised Exhaust Duration | 280 |
| Advertised Intake Duration | 272 |
| Amazon ASIN | N/A |
| Assembly Lubricant Included | No |
| Basic Operating RPM Range | 4000-7000 |
| C.A.R.B. E.O. Number | N/A |
| C.A.R.B. Exempt for California Certified Vehicles Manufactured Before 1965? | Yes, but must meet tailpipe emission standards for year of vehicle. |
| C.A.R.B. Exempt for Federally Certified Vehicles Manufactured Before 1967? | Yes, but must meet tailpipe emission standards for year of vehicle. |
| C.A.R.B. Exempt for Foreign Vehicles Manufactured Before 1967? | Yes, but must meet tailpipe emission standards for year of vehicle. |
| C.A.R.B. Exempt for On-Road Vehicles? | No |
| C.A.R.B. Exempt for Racing and Off-Road Only Vehicles? | Yes, but must be a race/competition only vehicle. |
| C.A.R.B. Exemption Reason | N/A |
| California Proposition 65 | WARNING: Cancer and Reproductive Harm P65Warnings.ca.gov |
| Cam Type | Hydraulic Roller |
| Camshaft Gear Attachment | 3-Bolt |
| Camshaft Material | Billet Steel |
| Camshaft Series | Hustler |
| Description_ASC | Stage 2 Hustler cam available under 08-697-11 |
| Description_ASM | Fits '87+ GEN 1 Chevrolet 305-350 Small Blocks w/ Factory Roller Camshafts (Not LT-1/LS1 etc) |
| Description_DEF | Engine Camshaft |
| Description_DES | Hustler 603/604 Crate Engine Hydraulic Roller Stage 1 Camshaft |
| Description_EXT | "Stealth" cam, has idle sound of OE camshaft. All specs pushed beyond legal limits. Thorough tech inspection required to be detected. |
| Description_INV | OE Rlr HustlrStage2 603/604 Crate Engine |
| Description_KEY | 265, 283, 307, 302, 305, 327, 350, 383, 400, 427, L46, L48, L65, LM1, LT-1, L82, L81, LS9, L83, L98, L05, LG3, LG4, LT1, LT4, Camaro, Corvette, Chevelle, Stingray, Silverado, C10, Firebird, Chevrolet, Chevy, Small Block Chevy, Caprice, Malibu, Impala, Nova, 355, GEN1, Monte Carlo, S10 |
| Description_SHO | 272CCCHR |
| Description_SHP | None |
| Engine Family | Chevrolet 604 Crate Engine |
| Exhaust Duration at .050 inch Lift | 227 |
| Exhaust Valve Lift | 0.522 |
| Grind Number | 272CCCHR |
| height | 3.0 |
| Intake Duration at .050 Inch Lift | 215 |
| Intake Valve Lift | 0.488 |
| length | 4.3 |
| Lifter Type | Roller |
| Lifters Included | No |
| Lobe Separation | 112 |
| LTL | N |
| Title | Hustler 603/604 Crate Engine Hydraulic Roller Stage 1 Camshaft |
| Usage | Race |
| Valve Springs Required | No |
| weight | 8.642 |
| width | 2.6 |
